figure 2-7 Maximum Door Opening Size
*The figure is for reference only and the actual product shall prevail!
2.2.3 Ventilation Design
Ventilation design of BESS
The BESS intakes air from the left side and expels it from the top, as shown below.

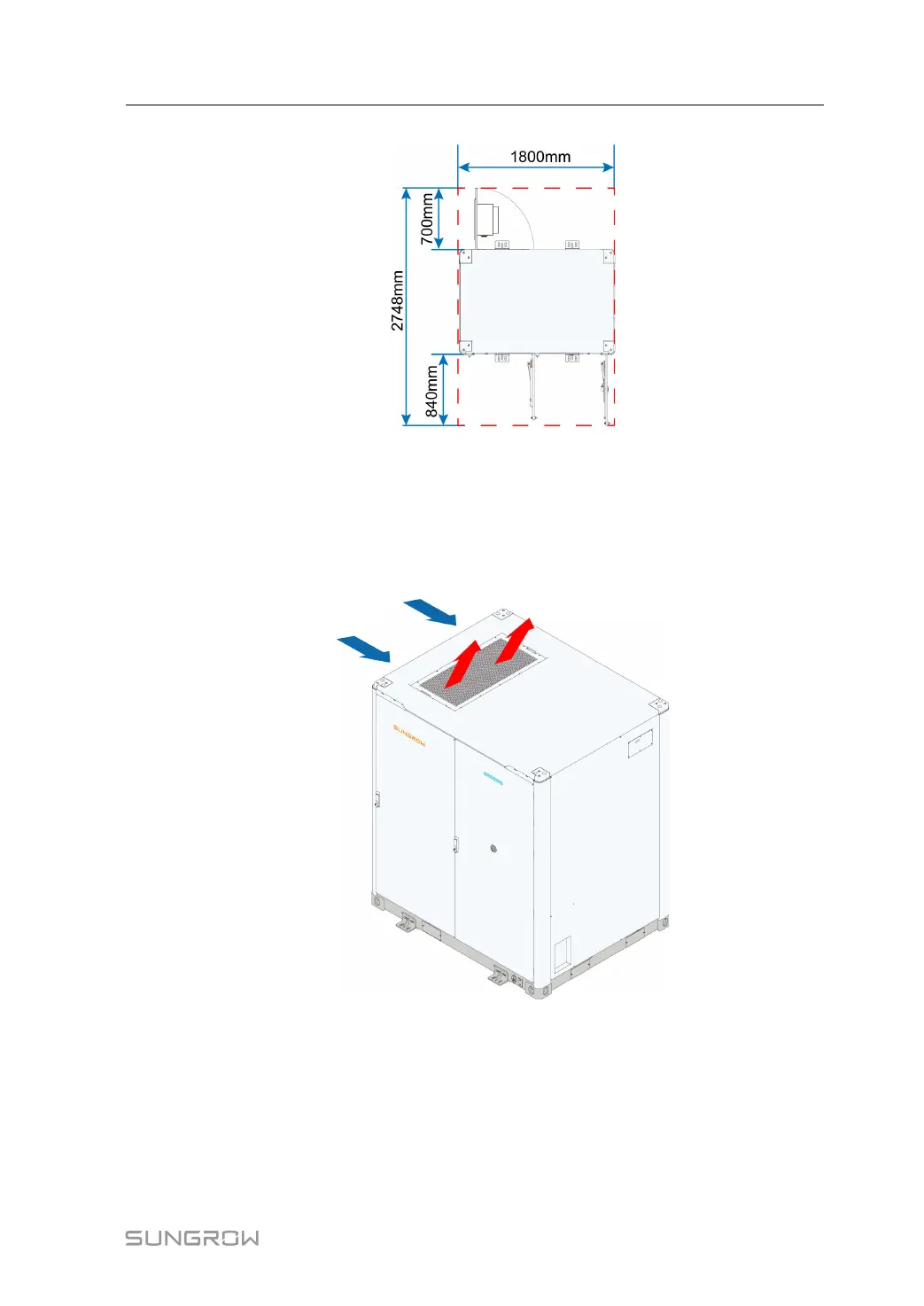

figure 2-8 Schematic diagram of ventilation of BESS
*The figure is for reference only and the actual product shall prevail!
Ventilation design of PCS
The PCS intakes air from the front side and right side, expels it from the back, as shown
below.
