LFP battery module
Parameter Value
Key components
64 cells, 1 BMU and 1 fuse
Weight ≤400kg
Ingress protection
IP65
Battery Cluster
The battery cluster is composed of multiple PACKS in series, etc.
Battery cluster parameters are shown as follows:
table 2-5 Battery cluster parameters
Battery cluster
model
Max.current
Voltage range Rated power
Short
current
R268BL-111 140A 810~1095V 134.4kW ≤20kA
R286BL-111 140A 864~1168V 143.4kW ≤20kA
R322BL-111 140A 972~1314V 160.8kW ≤20kA
R344BL-111 140A 1160~1500V 172kW ≤20kA

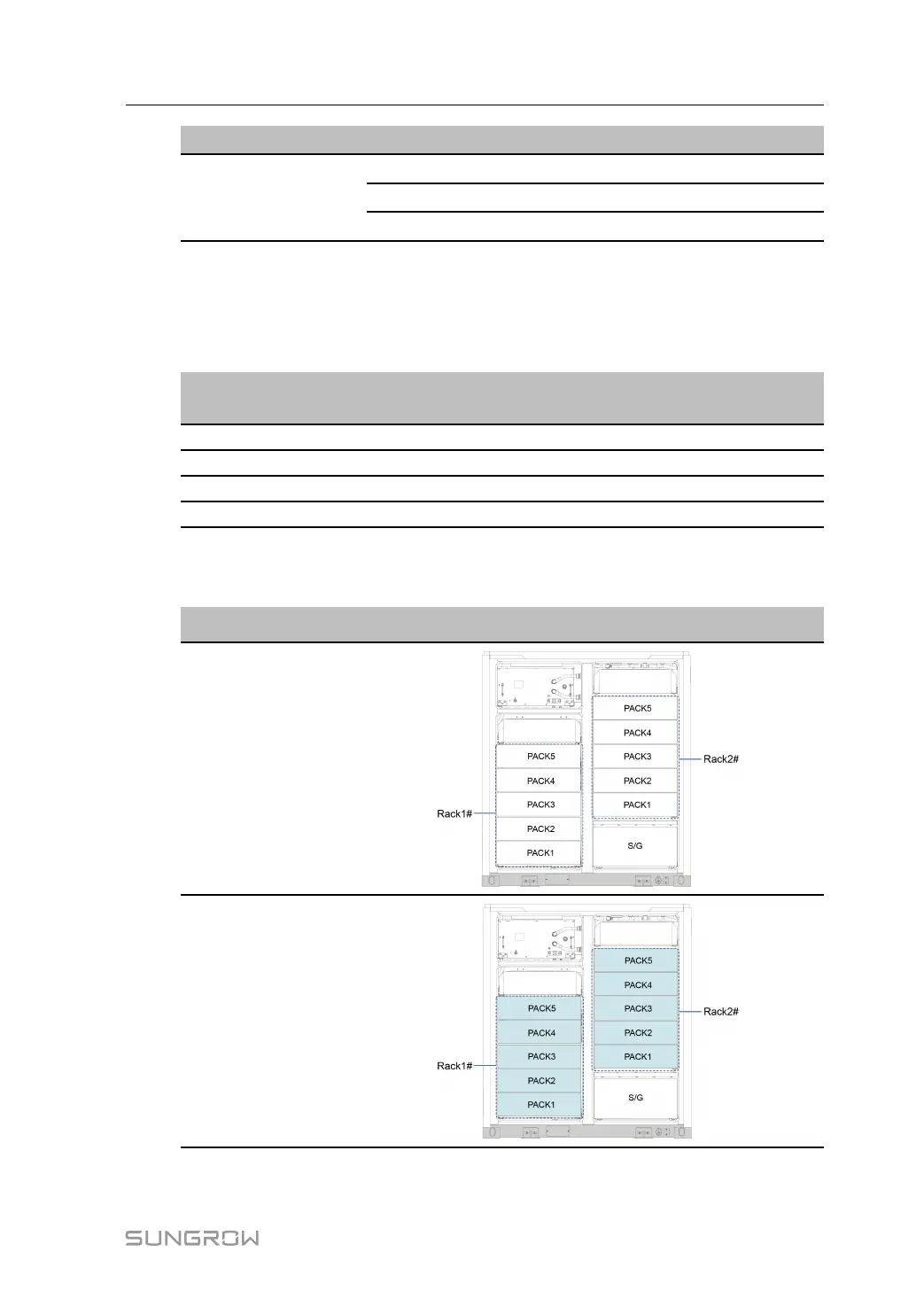

Battery Cluster Stacking Method
table 2-6 Battery cluster stacking method
Module
Stacking method
ST500CP-BL
ST570CP-BL
System Manual 2 Product Description
