Overview
There are two grounding methods: fixing by wielding with grounding flat steel and fixing with
grounding cable. For the location of the grounding point, please refer to āCabinet
Appearance".
Grounding Flat Steel(Recommend)
Remove the protective tape from the grounding point and weld hot-dip galvanized flat steel
to the grounding point(flat steel to cabinet lap area 40 mm x 70 mm). Spray the entire fixed
surface after ground connection.

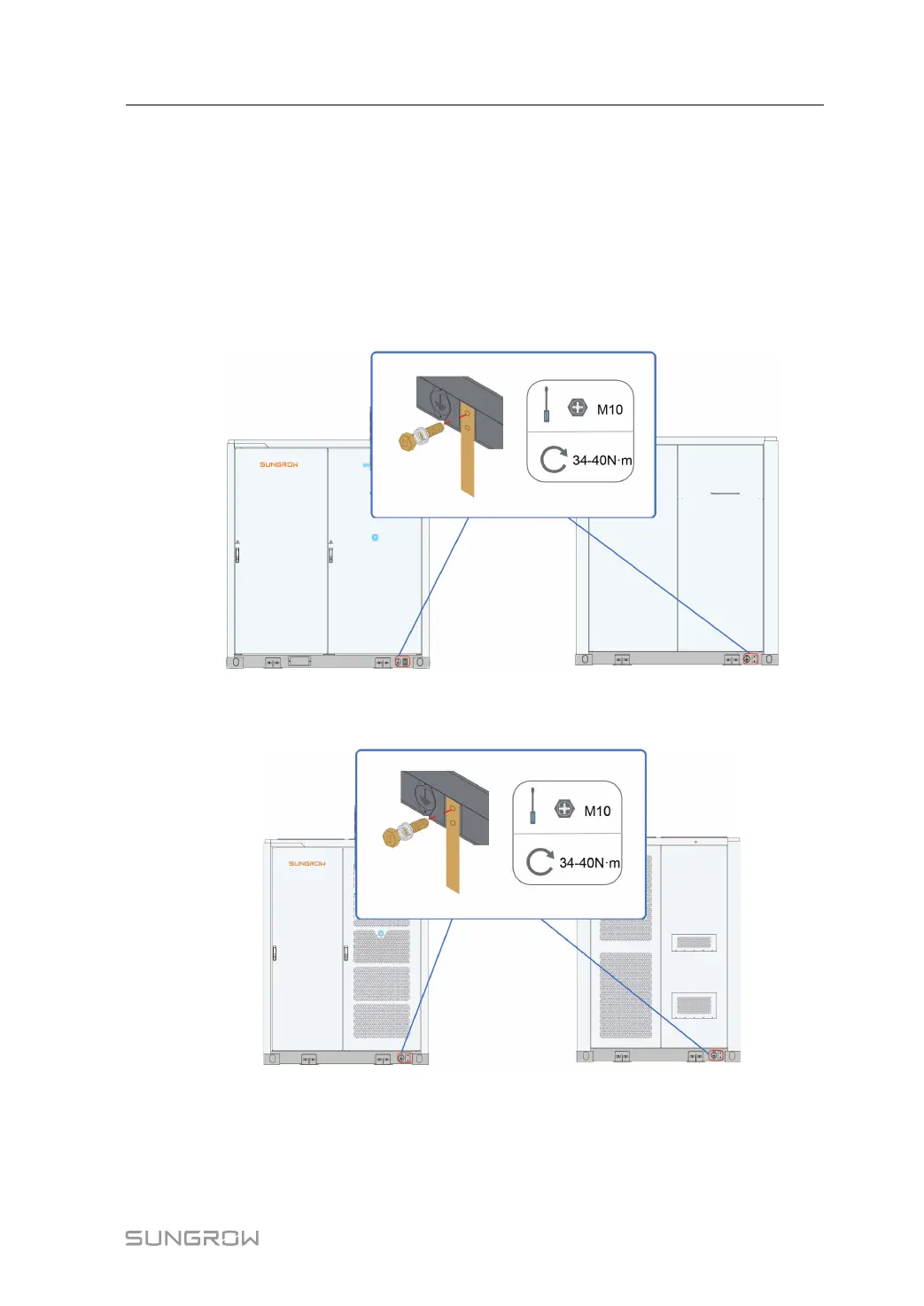

figure 5-8 BESS grounding diagram
*The figure is for reference only and the actual product shall prevail.
figure 5-9 PCS grounding diagram
*The figure is for reference only and the actual product shall prevail.
System Manual 5 Electrical Connection
