• The positive pole of the aviation plug needs to be inserted into the positive
base, and the negative pole needs to be inserted into the negative pole base.
The positive pole is orange, and the negative pole is black. When the aviation
plug is plugged tightly, it will make a "click" sound.
• When the power line is connected, the position of the fuse can be adjusted
appropriately.
step 5 After the fuse power line is connected, fasten the bolts in step 2 and step 3 and flatten the
spring washer.

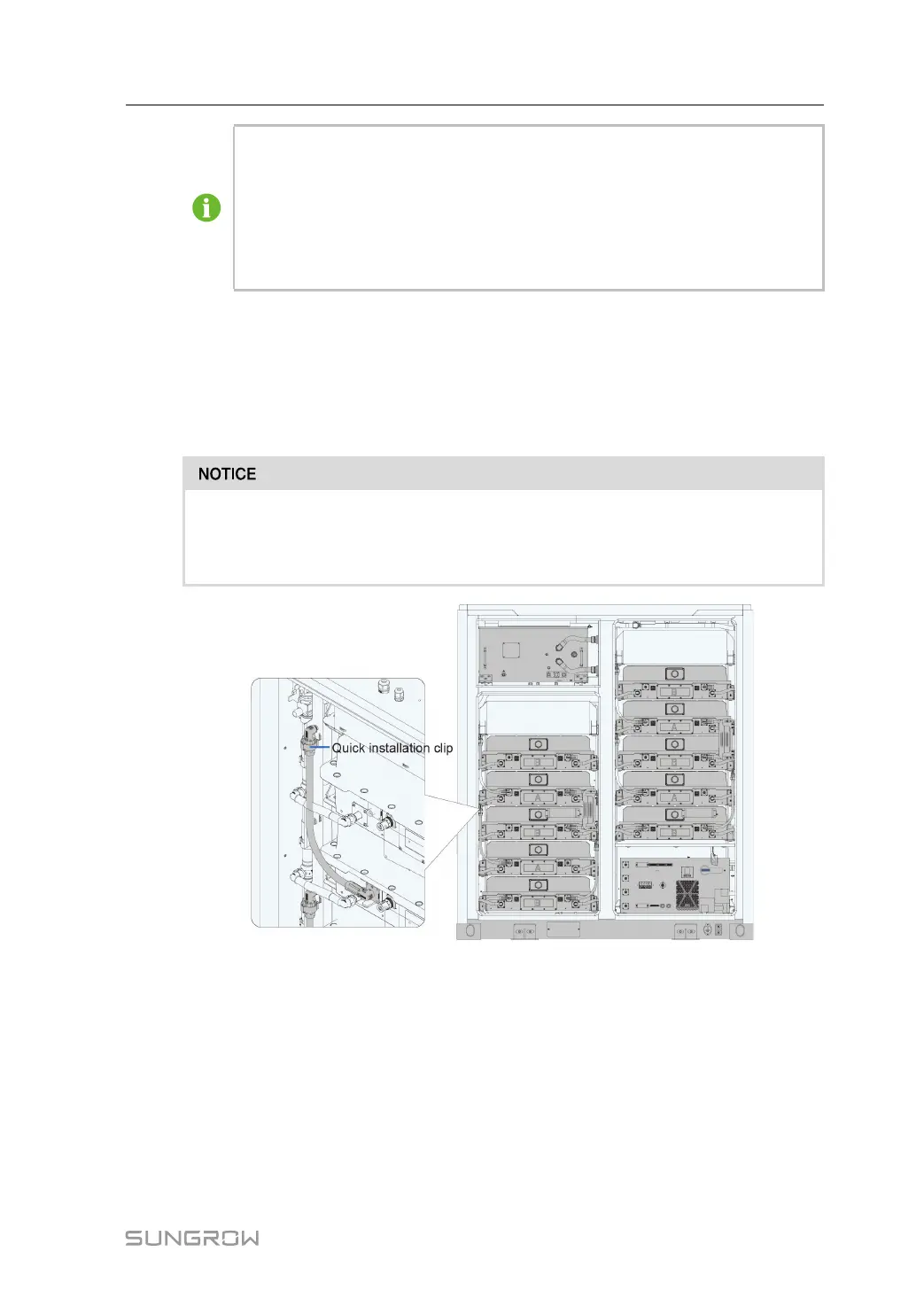

step 6 Connect the power cable between the packs. The positive pole of the power cable between
packs has been installed on the battery cluster, and the negative pole is fixed on the side
bracket through the quick installation clip and the cable tie. Take 1# Rack as an example:
When connecting the power cable between packs, it is necessary to remove the
negative pole of the power cable from the clamp on the side plate and insert it into
the negative pole base.
1 Connect BAT- of Pack5# to BAT+ of Pack4#.
2 Connect BAT- of Pack3# to BAT+ of Pack2#.
3 Connect BAT- of Pack2# to BAT+ of Pack1#.
step 7 Connect the power cable between the Pack and the switch gear. Take 1# Rack as an
example:
1 Connect the BAT- of Pack1# to the BAT- of the switch gear.
2 Connect BAT+ of Pack5# to BAT+ of the switch gear.
System Manual 6 Battery Connection
