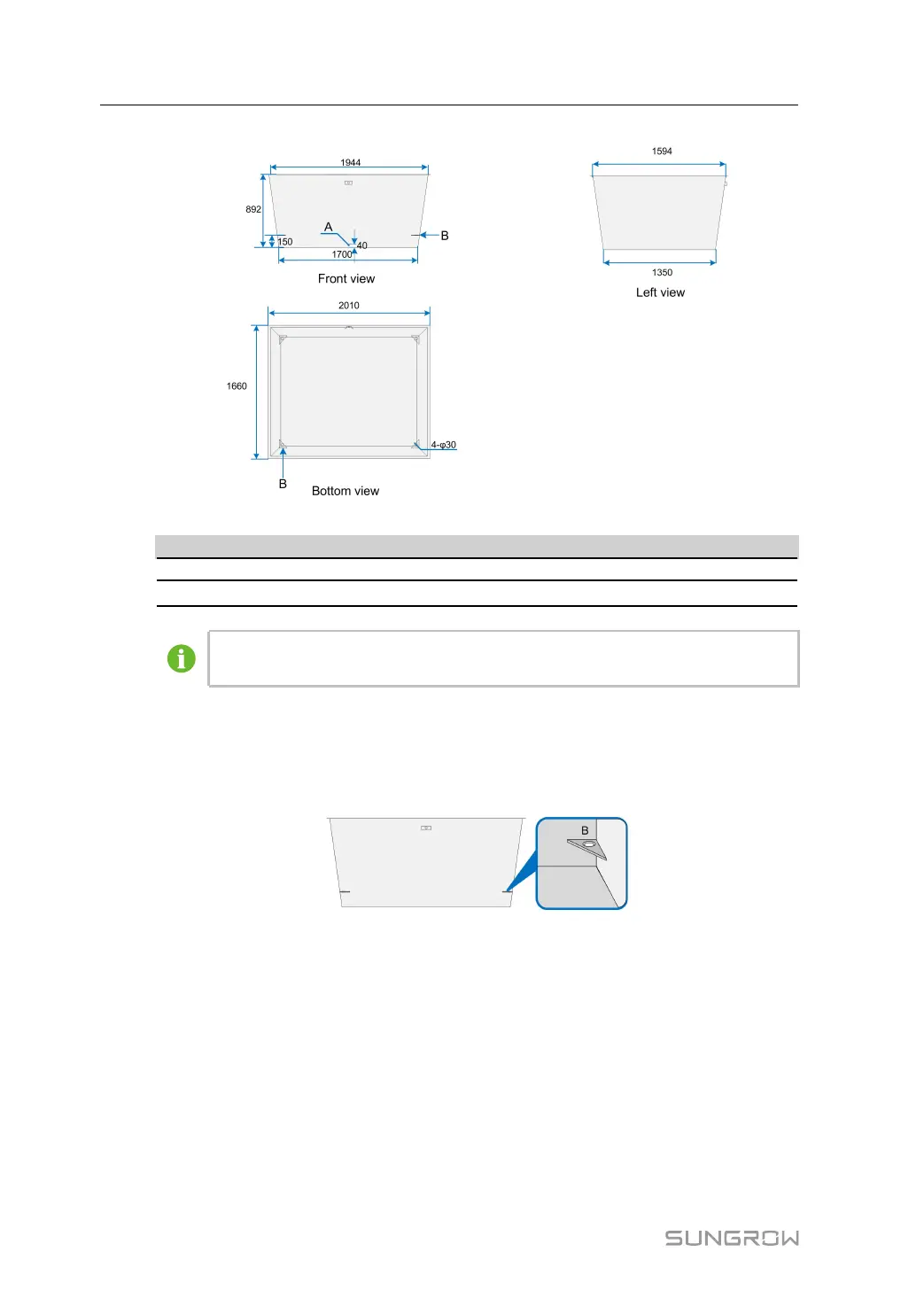

figure 5-3 The views of the oil tray
No. Name
A Installation hole for drain valve
B Lifting rings
The position marked in the figure is for reference only, and it may vary with actual
onsite conditions.
Transport the Oil Tray
Hoist the oil tray and transport it to the target location via the lifting rings at four corner of the
oil tray (shown by "B" in the figure below). The hoisting device should be able to bear the
weight of the oil tray.
Installation Hole
The hole for installing the drain valve is reserved in the oil tray.
For ease operation, the drain valve should be appropriately oriented according to onsite
conditions.
Install the Drain Valve
Install the drain valve on site. During installation, the following components may be used.
• Ball valve (in the scope of delivery)
• Connector(in the scope of delivery)
• Sealing ring(in the scope of delivery)
5 Mechanical Mounting System Manual
