Sungrow SC3150UD-MV-US System Manual

35

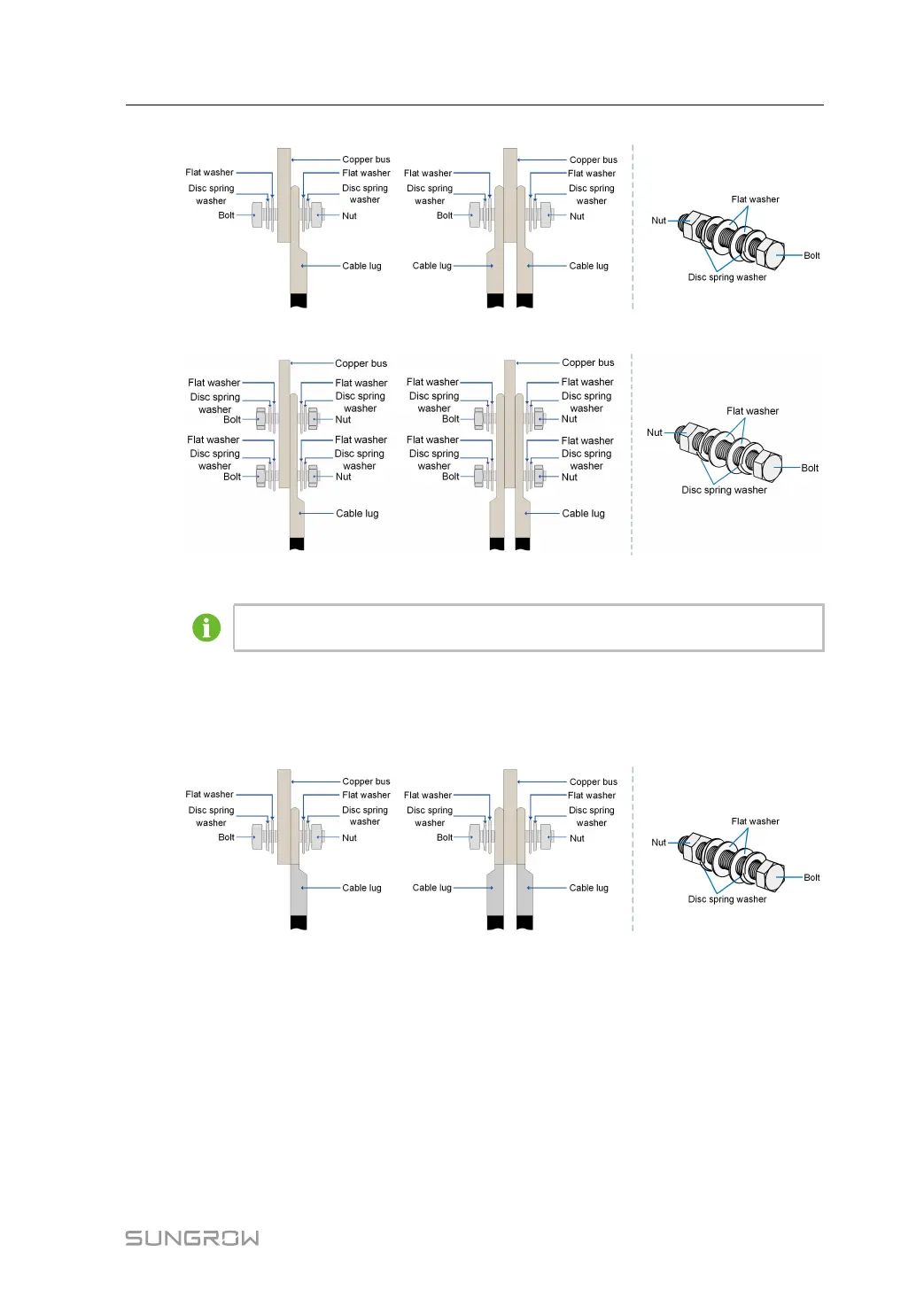

figure 6-1 Copper wire terminal connection sequence of single-hole cable connection
figure 6-2 Copper wire terminal connection sequence of double-hole cable connection
Select a cable connection method based on actual needs.
6.2.2 Aluminum Wire Connection
When a aluminum wire is selected, a copper-aluminum composite terminal is needed as
shown below:
figure 6-3 Copper-aluminum composite terminal of single-hole cable connection
System Manual 6 Electrical Connection

Sungrow SC3150UD-MV-US Specifications

General

Brand	Sungrow
Model	SC3150UD-MV-US
Category	Storage
Language	English
