• Long bolts may affect the insulation and may cause short circuit.
• Remove the heat-shrinkable tubing between the cable lug and the copper bar if
necessary. Poor contact or over-heating may follow if otherwise.
step 3 Confirm that all cable connections are secure.
Finish the DC cable connection of other input of the PCS following the above steps.

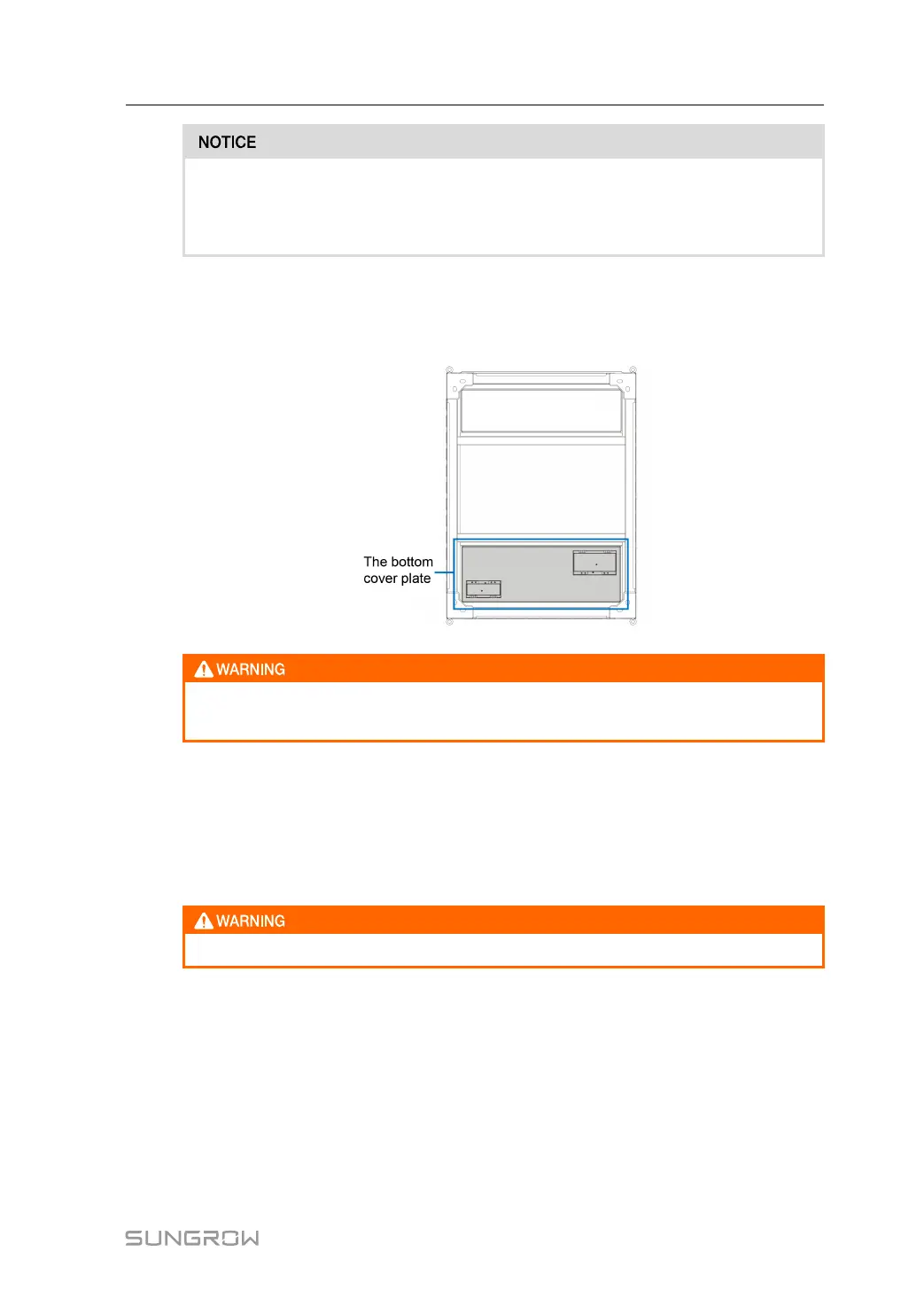

The bottom cover plate at the cable entry cannot be discarded during cable wiring
and must be reinstalled to ensure protection for internal equipment.
- - End
6.8 AC Connection
6.8.1 Safety Instructions
Incorrect AC connection may cause damages to the PCS.
System Manual 6 Electrical Connection
