X10DRT-B+ Motherboard User’s Manual
Universal Serial Bus (USB)
Two USB 3.0 ports are located on the
back panel (USB 0/1). (Cables are not
included.) See the table on the right for
pin denitions.
USB (3.0) 0/1
Pin Denitions
Pin# Denition
1 +5V
2 D-
3 D+
4 Ground
5 RX-
6 RX+
7 Ground
8 TX-
9 TX+

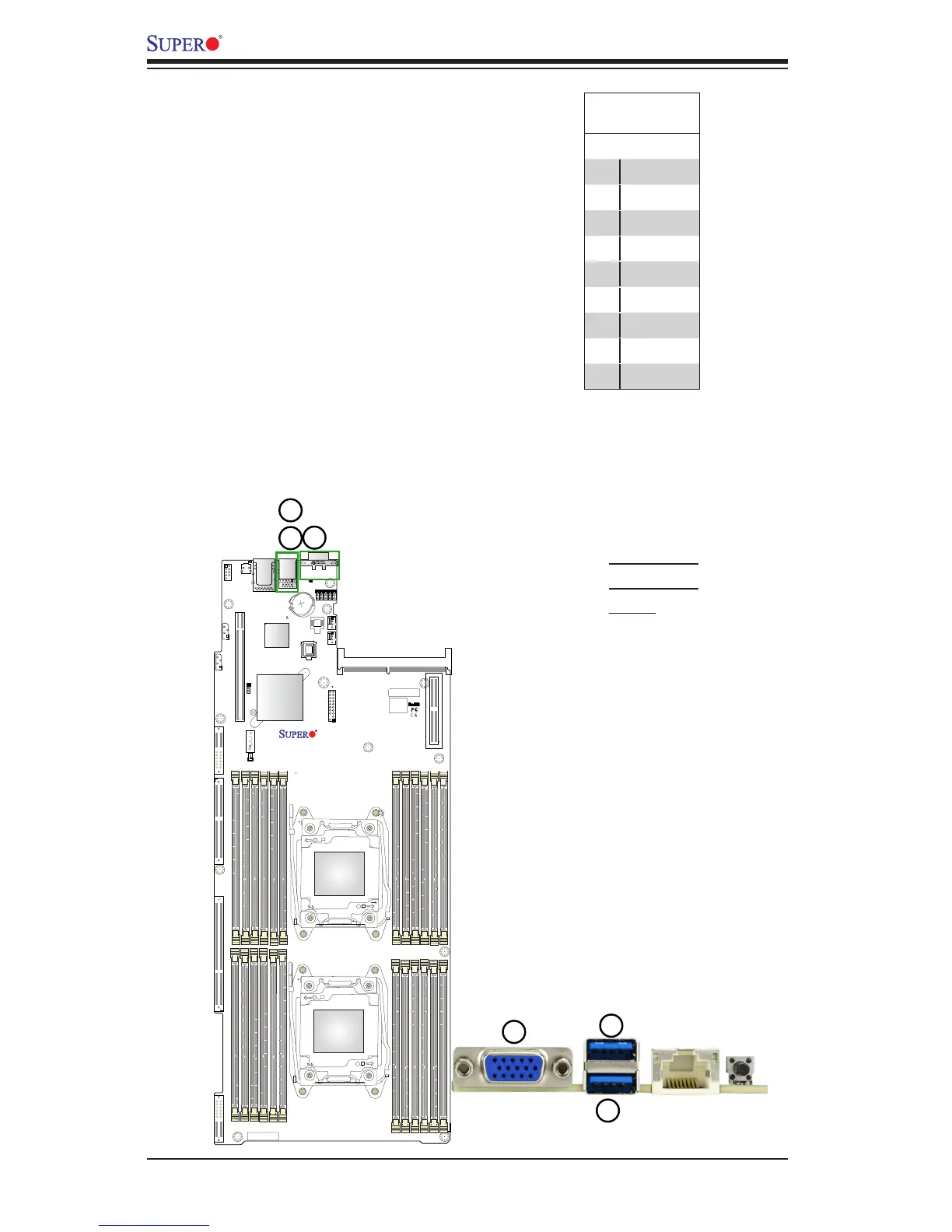

1. USB0 (3.0)
2. USB1 (3.0)
3. VGA
Video Connector
A Video (VGA) connector is located on
the back panel. This connector is sup-
ported by the ASpeed BMC and is used
to provide video display. Refer to the
layout below for the location.
IPMI CODE
BIOS
LICENSE
BAR CODE
X10DRT-B+
Rev. 1.01
1
2
1
2
3
3
