Supermicro X10DRT-B+ - TPM Header;Port 80

Chapter 2: Installation
2-21
4
3
2
1
IPMI CODE
BIOS
LICENSE
BAR CODE
X10DRT-B+
Rev. 1.01
OPEN 1st
1
1
CPU1
1
1
CPU2
J*
S-SATA3
JBAT1
LE6
JPME2
JVRM1
JVRM2
JPG1
JPB1
JWD1
UID_LED1
BMC_HB_LED1
JTPM1
JSD1
FAN4
FAN3
JBT1
SXB2
SXB1
JF2
JF1
Battery
TPM/Port80
CPU1 PCI-E 3.0 X4
P2-DIMMH3 P2-DIMMG3 P2-DIMMF3 P2-DIMME3
P1-DIMMD3 P1-DIMMC3 P1-DIMMB3 P1-DIMMA3
CPU2 PCI-E 3.0 X24
I-SATA0~5
UID SW
S-SATA0~2
CPU1 PCI-E 3.0 X4
CPU1 SLOT1 PCI-E 3.0 X16
IPMI_LAN
BMC
P1-DIMMA1 P1-DIMMB2 P1-DIMMB1 P1-DIMMA2
VGA
BIOS
FLASH
P2-DIMMH1 P2-DIMMG2
USB0/1
(3.0)
P2-DIMMH2 P2-DIMMF1 P2-DIMMF2 P2-DIMME2 P2-DIMME1
SIOM: CPU1 PCI-E 3.0 X16
P1-DIMMD1 P1-DIMMD2 P1-DIMMC1 P1-DIMMC2
CPU2 SLOT2
PCI-E 3.0 X16
C612
P2-DIMMG1

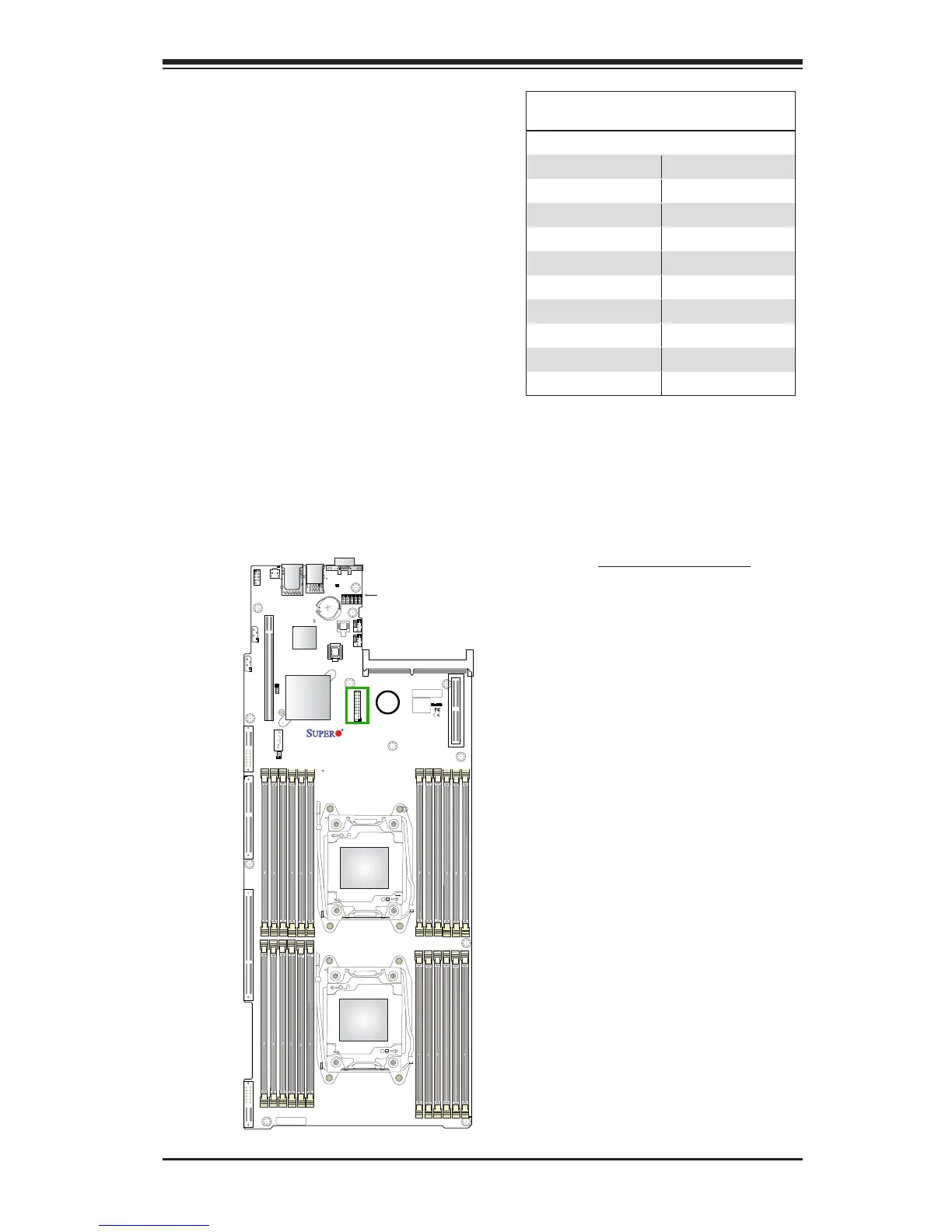

1. TPM Header/Port 80
TPM Header/Port 80
A Trusted Platform Module/Port 80
header, located at JTPM1, provides TPM
support and Port 80 connection. Use this
header to enhance system performance
and data security. See the table below
for pin denitions.
TPM/Port 80 Header
Pin Denitions
Pin # Denition Pin # Denition
1 LCLK 2 GND
3 LFRAME# 4 <(KEY)>
5 LRESET# 6 +5V (X)
7 LAD 3 8 LAD 2
9 +3.3V 10 LAD1
11 LAD0 12 GND
13 SMB_CLK 14 SMB_DAT
15 +3V_DUAL 16 SERIRQ
17 GND 18 CLKRUN# (X)
19 LPCPD# 20 LDRQ# (X)
1
