Supermicro X10DRT-B+ - Manufacturing Mode

2-26
X10DRT-B+ Motherboard User’s Manual
4
3
2
1
IPMI CODE
BIOS
LICENSE
BAR CODE
X10DRT-B+
Rev. 1.01
OPEN 1st
1
1
CPU1
1
1
CPU2
J*
S-SATA3
JBAT1
LE6
JPME2
JVRM1
JVRM2
JPG1
JPB1
JWD1
UID_LED1
BMC_HB_LED1
JTPM1
JSD1
FAN4
FAN3
JBT1
SXB2
SXB1
JF2
JF1
Battery
TPM/Port80
CPU1 PCI-E 3.0 X4
P2-DIMMH3 P2-DIMMG3 P2-DIMMF3 P2-DIMME3
P1-DIMMD3 P1-DIMMC3 P1-DIMMB3 P1-DIMMA3
CPU2 PCI-E 3.0 X24
I-SATA0~5
UID SW
S-SATA0~2
CPU1 PCI-E 3.0 X4
CPU1 SLOT1 PCI-E 3.0 X16
IPMI_LAN
BMC
P1-DIMMA1 P1-DIMMB2 P1-DIMMB1 P1-DIMMA2
VGA
BIOS
FLASH
P2-DIMMH1 P2-DIMMG2
USB0/1
(3.0)
P2-DIMMH2 P2-DIMMF1 P2-DIMMF2 P2-DIMME2 P2-DIMME1
SIOM: CPU1 PCI-E 3.0 X16
P1-DIMMD1 P1-DIMMD2 P1-DIMMC1 P1-DIMMC2
CPU2 SLOT2
PCI-E 3.0 X16
C612
P2-DIMMG1

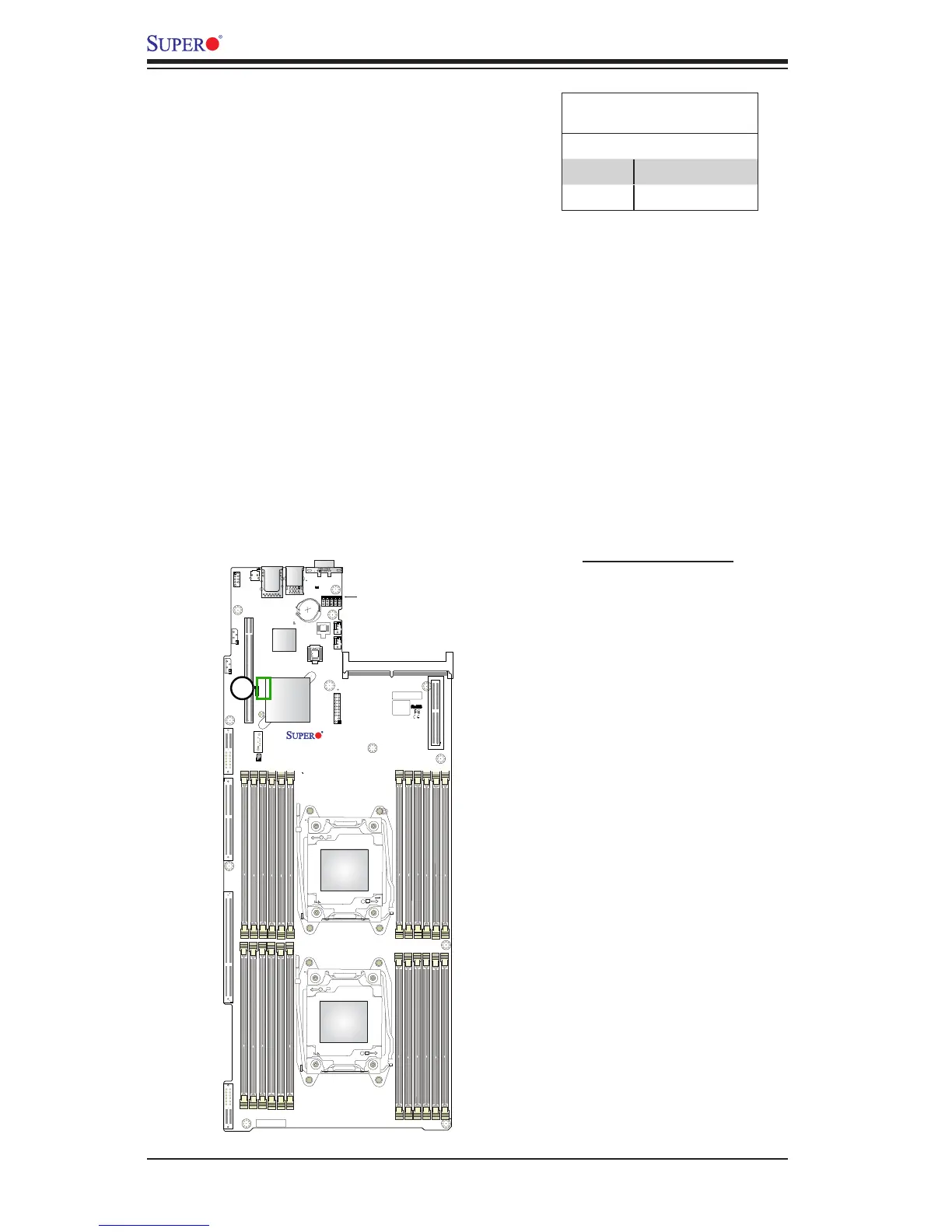

Manufacturing Mode
Close pin 2 and pin 3 of Jumper JPME2
to bypass SPI ash security and force
the system to operate in the Manufac-
turer mode, allowing the user to ash
the system rmware from a host server
for system setting modications. See the
table on the right for jumper settings.
ME Mode Select
Jumper Settings
Jumper Setting Denition
1-2 Normal (Default)
2-3 Manufacture Mode
1. Manufacturing Mode
1
