Chapter 2: Installation
2-7
The plastic cap
is released from
the load plate if
the CPU has been
properly installed.

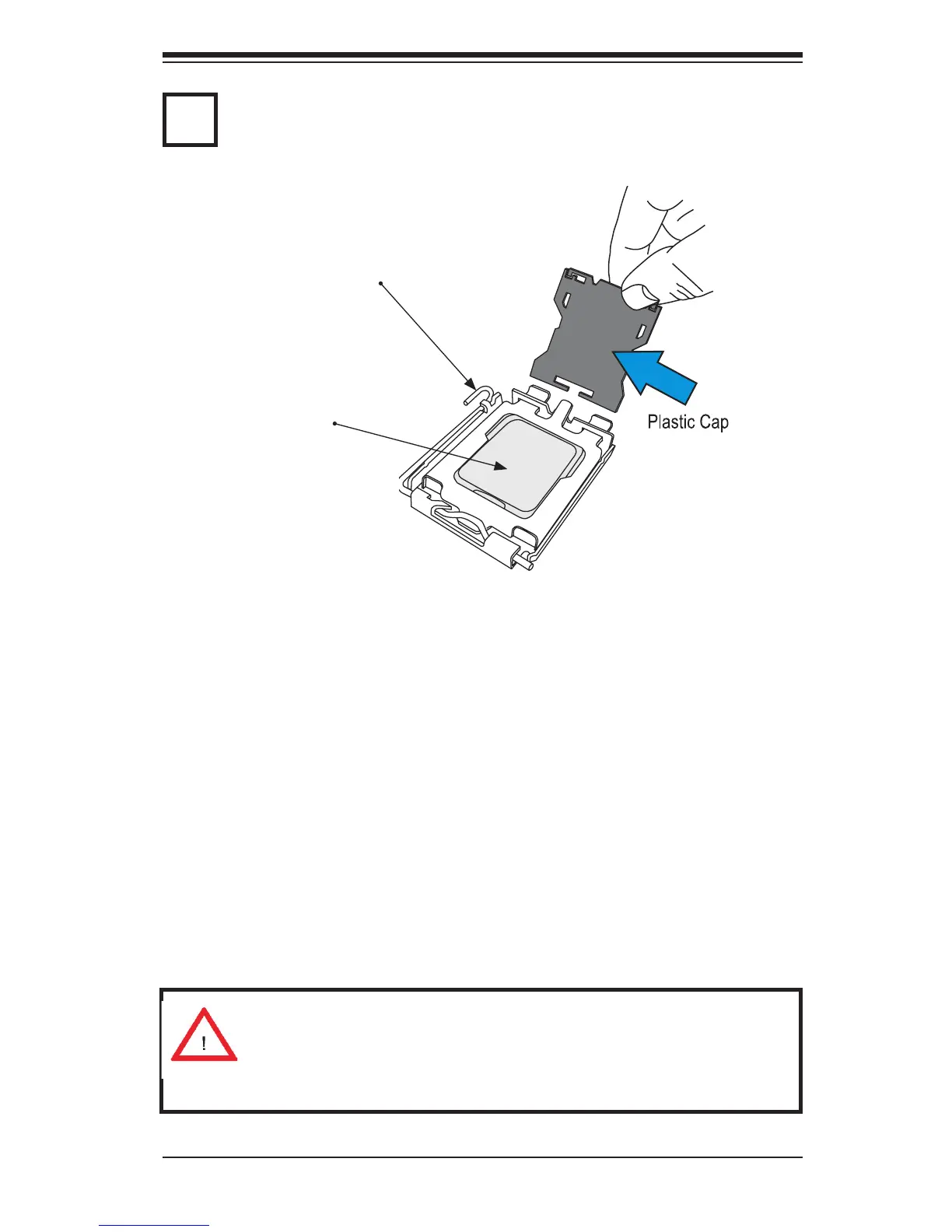

If the CPU is properly installed into the socket, the plastic PnP cap will be
automatically released from the load plate when the load lever is pushed in
the lever lock. Remove the PnP cap from the motherboard.
6
CPU properly
installed
Load lever locked
into place
Important: Please save the plastic PnP cap. The motherboard must be
shipped with the PnP cap properly installed to protect the CPU socket
pins. Shipment without the PnP cap properly installed will cause damage
to the socket pins.
