Supero C2G41 - Wake-On-Ring; Wake-On-LAN

2-26
C2G41 User's Manual
A. WOL
Wake-On-LAN

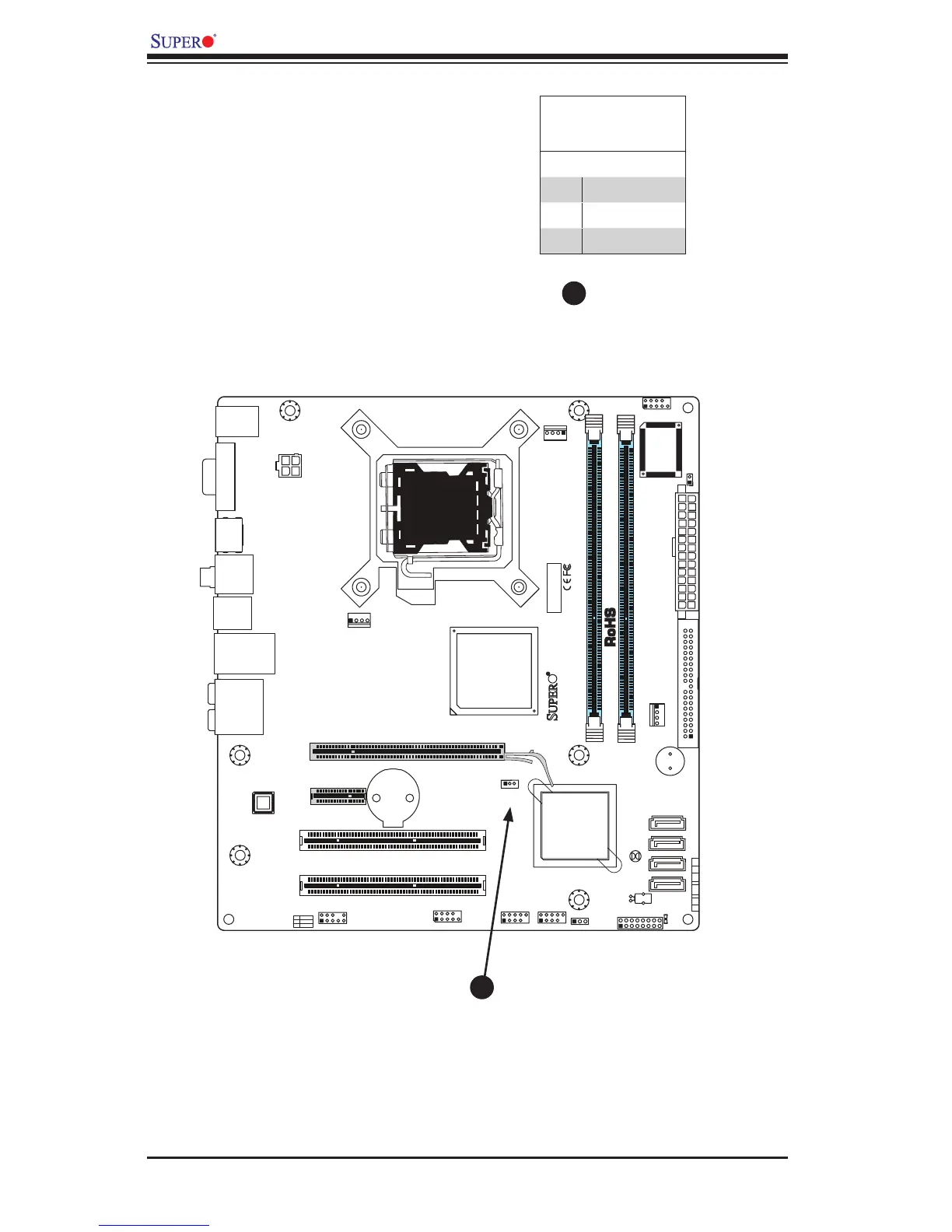

The Wake-On-LAN header is located
at JWOL on the motherboard. See the
table on the right for pin denitions.
(You must also have a LAN card with
a Wake-On-LAN connector and cable
to use this feature.)
Wake-On-LAN
PinDenitions
(JWOL)
Pin# Denition
1 +5V Standby
2 Ground
3 Wake-up
A
A
FAN2
FAN1
LE1
JBT1
JF1
121
JPT1
C2G41
Tested to Comply With FCC Standards FOR HOME OR OFFICE USE
AT X_POWER1
LGA775 CPU
AT X12V1
COM2
COM1
1
A
JL1
CHASSIS INTRUSION
TPM
IDE
HDMI
JF1
X
PWR
ON
RST OH/FFX
HDD
NIC1
LED
PWR LED
CPU FA N
FAN3
I-SATA3
I-SATA2
I-SATA1
I-SATA0
BUZZER
JWOL
+
BATTERY
JPW2
JPW1
AUDIO FP
USB0/1
USB2/3
DIMM1B
DIMM1A
SLOT7 PCI-E X16
SLOT6 PCI-E X1
SLOT5 PCI 33MHZ
SLOT4 PCI 33MHZ
USB6/7 LAN
USB4/5
SPDIF OUT
KB/MOUSE
:CMOS CLEAR
ENABLE
JPT1
1-2
2-3
DISABLE
VGA
PSKBM
AUDIO
