Supero C2G41 - SATA Disk Drive Connectors

2-36
C2G41 User's Manual

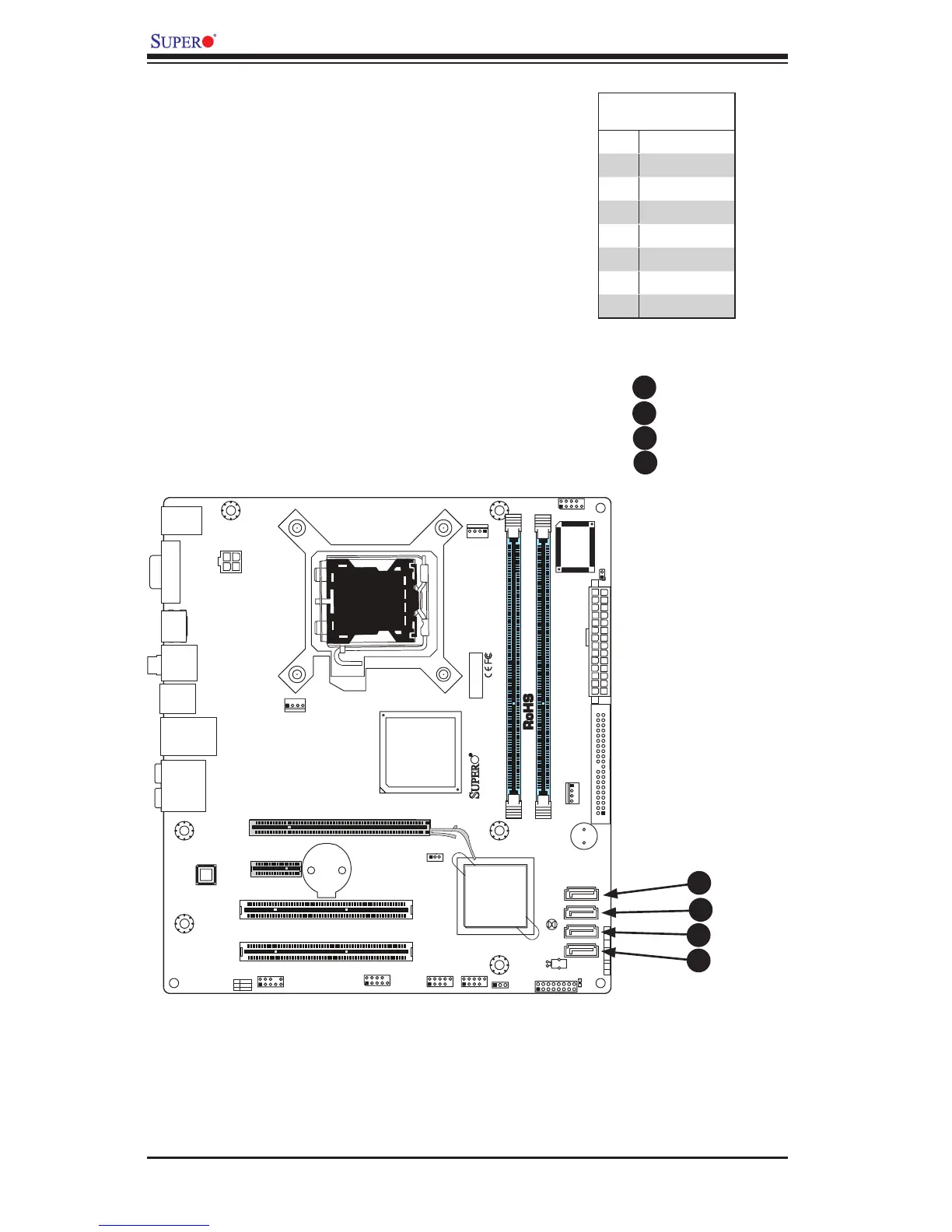

SATA Disk Drive Connectors
Four Serial ATA (SATA) disk drive con-
nectors (I-SATA 0~3) are located on the
motherboard to provide serial link con-
nections. Serial Link connections provide
faster data transmission than those of the
traditional Parallel ATA. These four SATA
connectors are supported by the Intel
ICH7 Chip (South Bridge). See the table
on the right for pin denitions.
SATA Connectors
PinDenitions
Pin# Signal
1 Ground
2 SATA_TXP
3 SATA_TXN
4 Ground
5 SATA_RXN
6 SATA_RXP
7 Ground
B
A
C
D
I-SATA0
I-SATA1
I-SATA2
I-SATA3
B
A
C
D
FAN2
FAN1
LE1
JBT1
JF1
121
JPT1
C2G41
Tested to Comply With FCC Standards FOR HOME OR OFFICE USE
AT X_POWER1
LGA775 CPU
AT X12V1
COM2
COM1
1
A
JL1 CHASSIS INTRUSION
TPM
IDE
HDMI
JF1
X
PWR
ON
RST OH/FFX
HDD
NIC1
LED
PWR LED
CPU FA N
FAN3
I-SATA3
I-SATA2
I-SATA1
I-SATA0
BUZZER
JWOL
+
BATTERY
JPW2
JPW1
AUDIO FP
USB0/1
USB2/3
DIMM1B
DIMM1A
SLOT7 PCI-E X16
SLOT6 PCI-E X1
SLOT5 PCI 33MHZ
SLOT4 PCI 33MHZ
USB6/7 LAN
USB4/5
SPDIF OUT
KB/MOUSE
:CMOS CLEAR
ENABLE
JPT1
1-2
2-3
DISABLE
VGA
PSKBM
AUDIO
