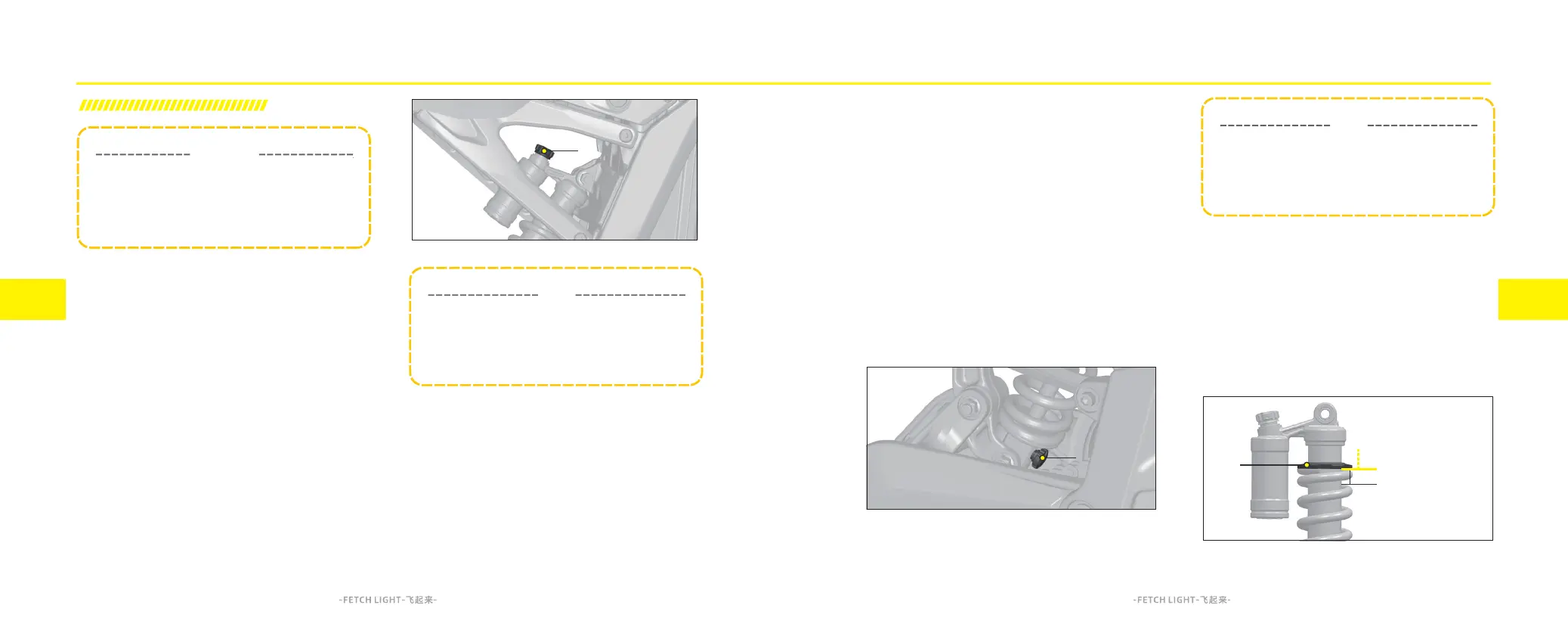

Compression Damping
Adjust the compression damping by turning the
knob A at the top right of the rear shock. The
symbol "+" means increasing compression damp-
ing, and the symbol "-" means decreasing
compression damping.
Turn the adjusting knob A clockwise in the "+"
direction to increase the compression damping.
Turn the adjusting knob A counterclockwise in the
"-" direction to decrease the compression damp-
ing.
Rebound Damping
Adjust the rebound damping by turning the knob
A at the bottom right of the rear shock. The symbol
"+" means increasing rebound damping, and the
symbol "-" means decreasing rebound damping.
Turn the adjusting knob A clockwise in the "+"
direction to increase the rebound damping,
resulting in slower rebound speed.
Turn the adjusting knob A counterclockwise in the
"-" direction to decrease the rebound damping,
resulting in faster rebound speed.
Preload
Turn the adjusting ring A with the adjusting
wrench.
Turn the adjusting ring A counterclockwise to
decrease the spring preload; turn the adjusting
ring A clockwise to increase the spring preload.
Rear Shock Adjustment
For any adjustable knob to be adjusted to
the full, it should be adjusted one space
back after reached the end space.
CAUTION
A
The appearance of rear shock may vary in
different brands, please refer to the actual
product.
NOTE
The appearance of rear shock may vary in
different brands, please refer to the actual
product.
NOTE
Starting and Operating Starting and Operating
7. 9
7.1 0
A
Adjusting
Ring A
Adjusting Range
14mm
Zero Preload Mark
(The spring should be restored
to the free state when adjusting)
