4-14 FUEL SYSTEM
REMOVAL

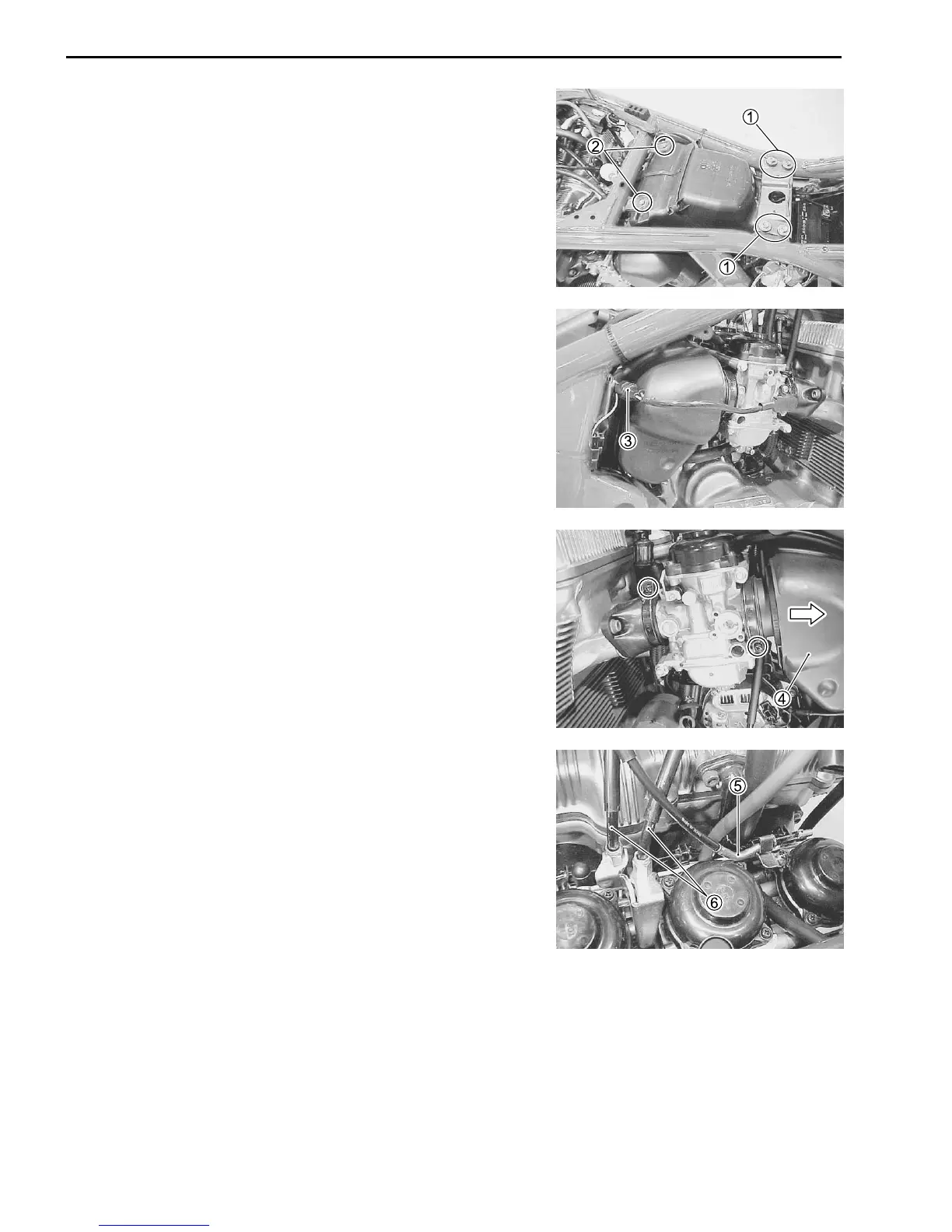

• Remove the fuel tank. (!4-3)
• Remove the side frame covers. (!5-6)
• Remove the fuel tank mounting bolts 1.
• Remove the air cleaner box mounting bolts 2.
• Disconnect the throttle position sensor coupler 3.
• Loosen the respective carburetor clamp screws.
• Slightly move the air cleaner box 4 back.
• Remove the carburetor assembly by disconnecting the starter
cable 5 and throttle cables 6.
