5-52 CHASSIS
#
Bleed air from the brake system. (
!!
!!
! 2-18)

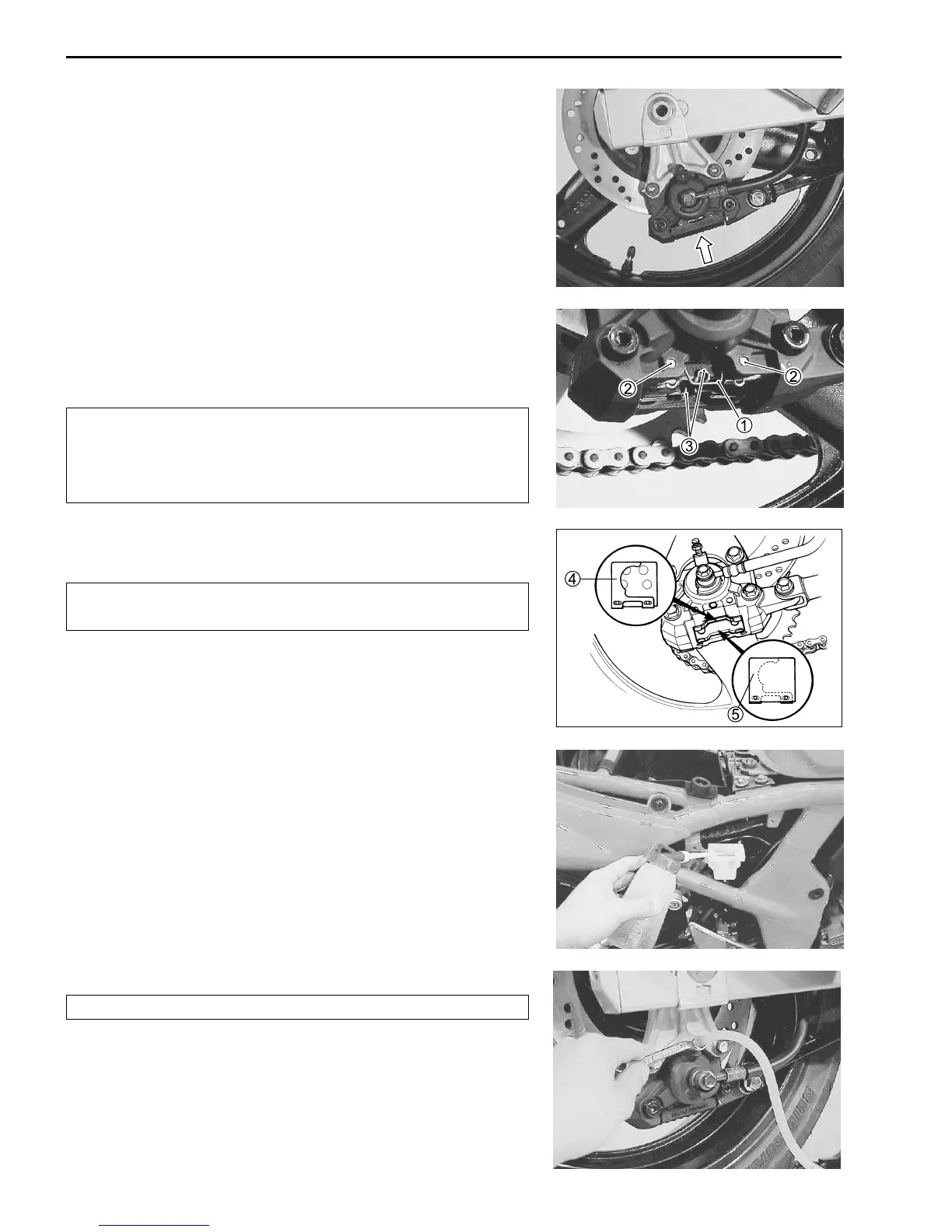

BRAKE PAD REPLACEMENT
• Remove the brake pad cover.
• Remove the clip 1.
• Remove the brake pads along with the shims by removing the
brake pad mounting pins 2 and springs 3.
#
* Do not operate the brake pedal during or after brake
pad removal.
* Replace the brake pads as a set, otherwise braking
performance will be adversely affected.
• Install the new brake pads and shims.
#
Be sure to properly install the shims (4, 5) as shown in
the illustration.
NOTE:
After replacing the brake pads, pump the brake pedal a few times
to operate the brake correctly and then check the brake fluid level.
BRAKE FLUID REPLACEMENT
• Remove the seat. (! 5-5)
• Remove the side frame cover (right side). (!5-6)
• Remove the reservoir cap.
• Replace the brake fluid. (! 5-42)
++
++
+ Specification and classification: DOT 4
