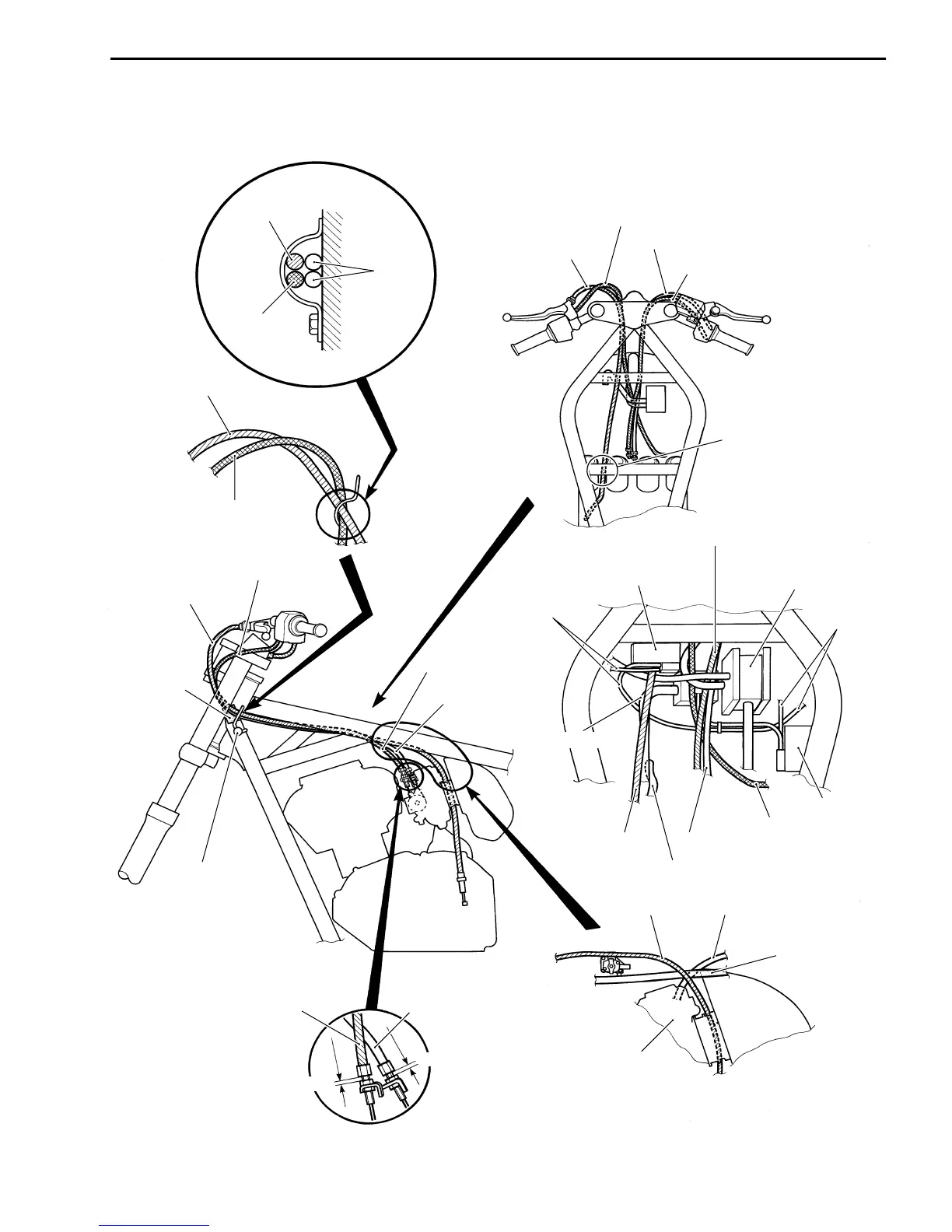

Suzuki GSF600SK2 2002 - Cable Routing

SERVICING INFORMATION 7-15
Clutch cable
Starter cable
Wiring
harness
Clutch cable
Starter cable
Starter cable
Starter cable
Clutch cable
Starter cable
Cable protector
(LH side only)
Cable guide
Throttle cable No.2
Throttle cable No.1
Throttle cable No.2
Throttle cable No.2
Throttle cable No.2
Throttle cable No.1
Throttle cable No.1
Throttle cable No.1
4 – 6 mm
4 – 6 mm
Carburetor
Air cleaner
box
Breather hose
Air vent hose
Air vent hose
Clutch cable
Clutch cable
Clutch cable
Ignition coil
Ignition coil
High-tension
cord
High-tension cord
PAIR valve
Breather hose
Clutch cable must be
passed between carburetors
#1 and #2.
CABLE ROUTING
