6-16 ELECTRICAL SYSTEM

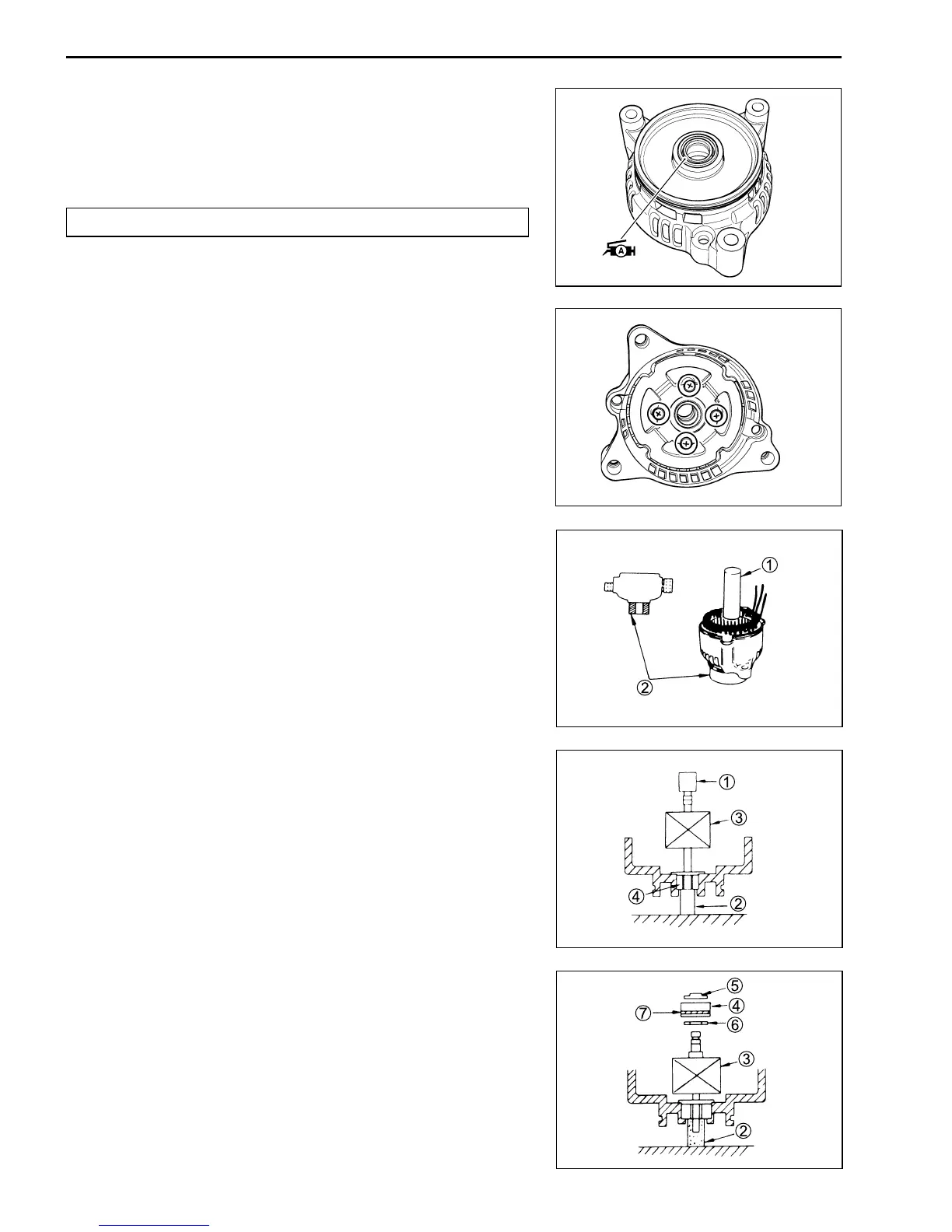

GENERATOR REASSEMBLY AND
REMOUNTING
Reassemble and remount the generator in the reverse order of
removal and disassembly. Pay attention to the following points:
"
The removed oil seal should be replaced with a new one.
• Apply SUZUKI SUPER GREASE “A” to the lip of the oil seal.
For USA
. 99000-25030: SUZUKI SUPER GREASE “A”
For the other countries
. 99000-25010: SUZUKI SUPER GREASE “A”
• Apply a small quantity of THREAD LOCK “1342” to the bearing
retainer screws and tighten them to the specified torque.
/99000-32050: THREAD LOCK “1342”
( Bearing retainer screw: 2.5 N
.
m (0.25 kgf
.
m, 1.8 lb-ft)
• Install the bearing and rotor using a hand-press.
1 Hand-press
2 Jig
3 Rotor
4 Bearing
5 Bearing cover #1
6 Bearing cover #2
7 Expander ring
