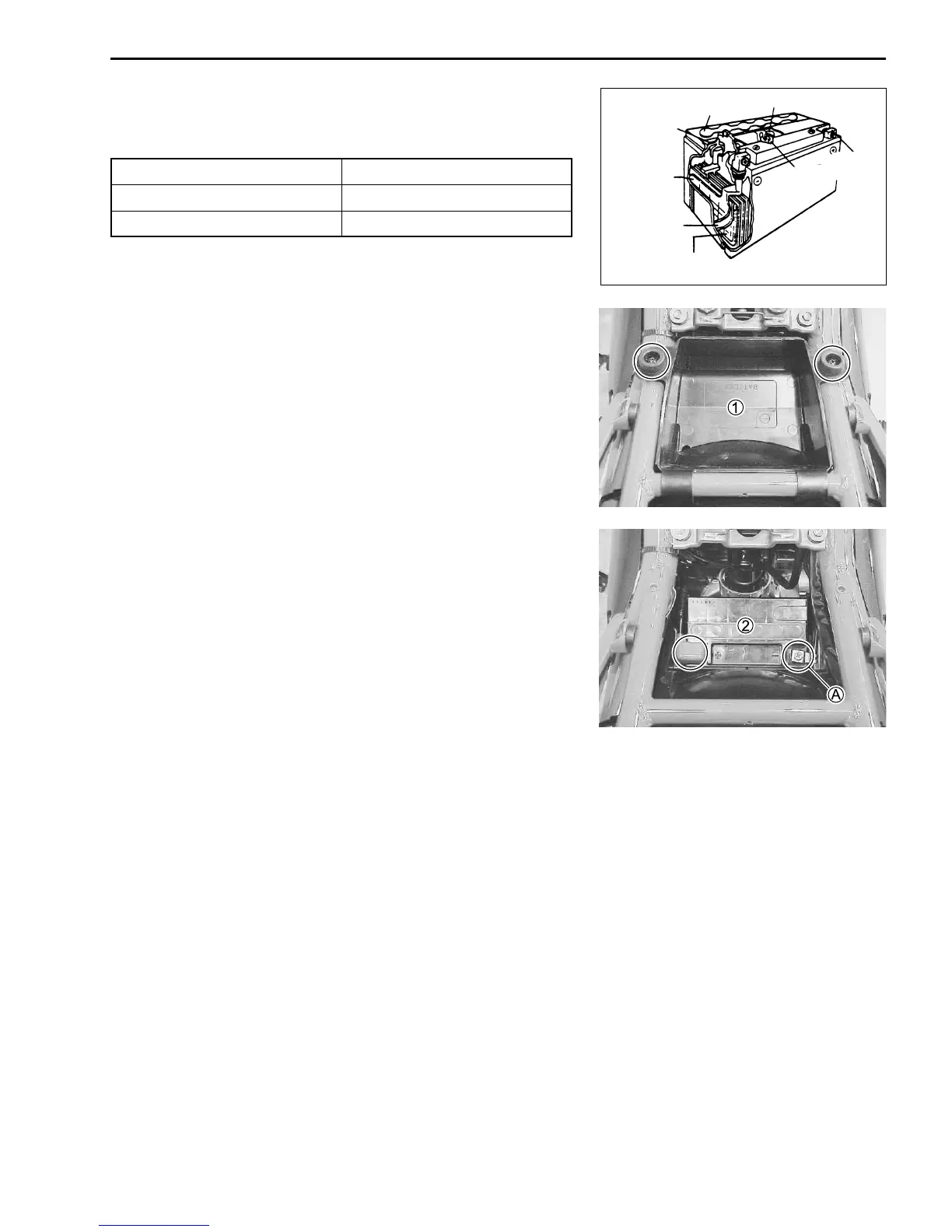

ELECTRICAL SYSTEM 6-41
BATTERY
SPECIFICATIONS
REMOVAL
• Remove the seat. (!5-5)
• Remove the document tray 1.
• Remove the battery 2.
NOTE:
First, disconnect the battery
-
lead wire
A
.
REMOUNTING
Remount the battery in the reverse order of removal.
Type designation YTX9-BS
Capacity 12 V, 28.8 kC (8 Ah)/10HR
Standard electrolyte S.G. 1.320 at 20°C (68°F)
Upper cover
breather
Stopper
Filter
Cathode
plates
Separator
(fiberglass
plate)
Anode
plates
Safety valve
Terminal
