Suzuki GSF600SK2 2002 - Rear Wheel; Construction

5-26 CHASSIS
REAR WHEEL

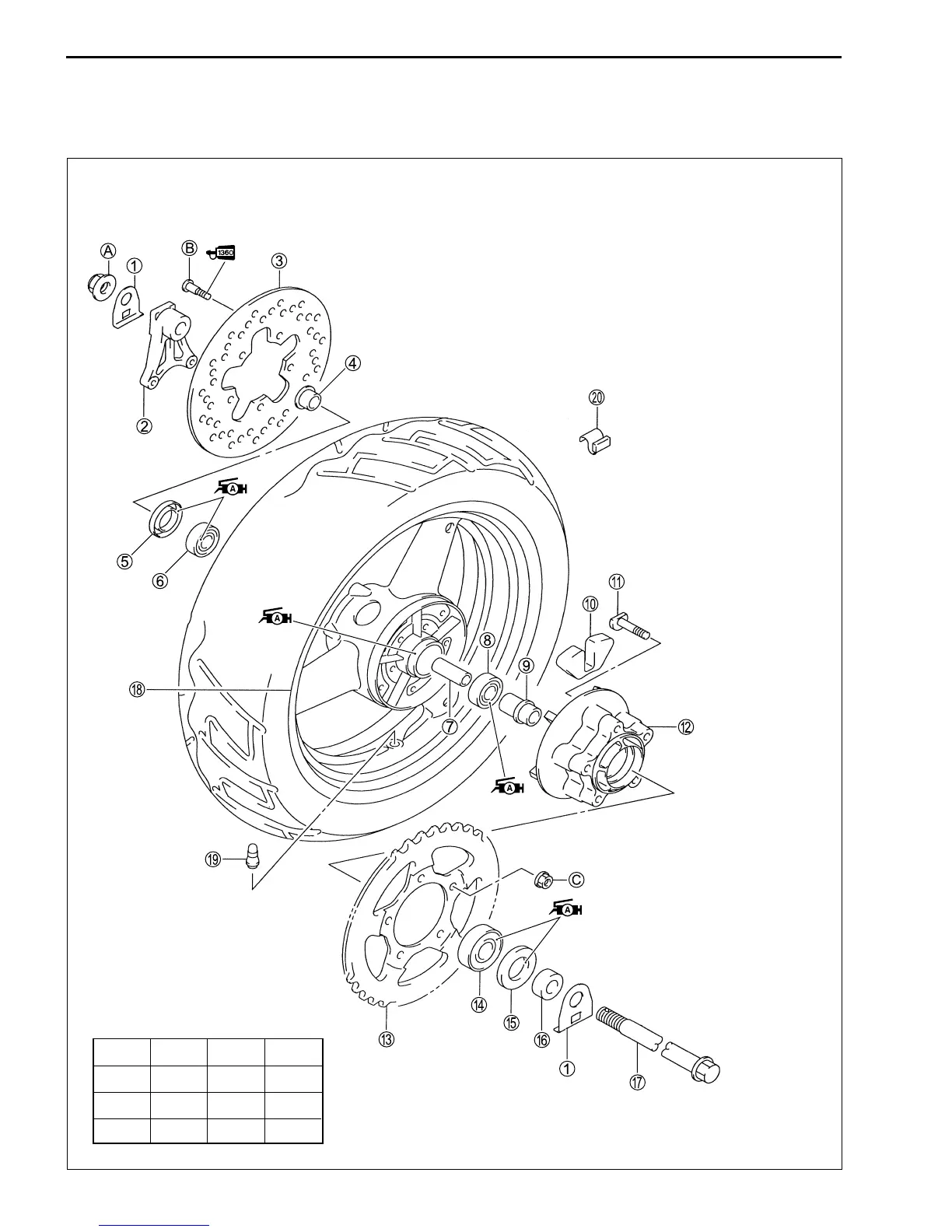

CONSTRUCTION
"
ITEM N
.
m kgf
.
m lb-ft
A 100 10.0 72.5
B 23 2.3 16.5
C 50 5.0 36.0
1 Chain adjuster plate
2 Brake caliper bracket
3 Brake disc
4 Collar
5 Dust seal
6 Bearing (R)
7 Spacer
8 Bearing (L)
9 Retainer
0 Cushion
A Rear sprocket bolt
B Rear sprocket mounting drum
C Rear sprocket
D Bearing
E Dust seal
F Spacer
G Rear axle
H Rear wheel
I Air valve
J Balancer
A Rear axle nut
B Brake disc bolt
C Rear sprocket nut
