Suzuki GSF600SK2 2002 - Wire Harness Routing

8-10 GSF600Y (2000-MODEL)

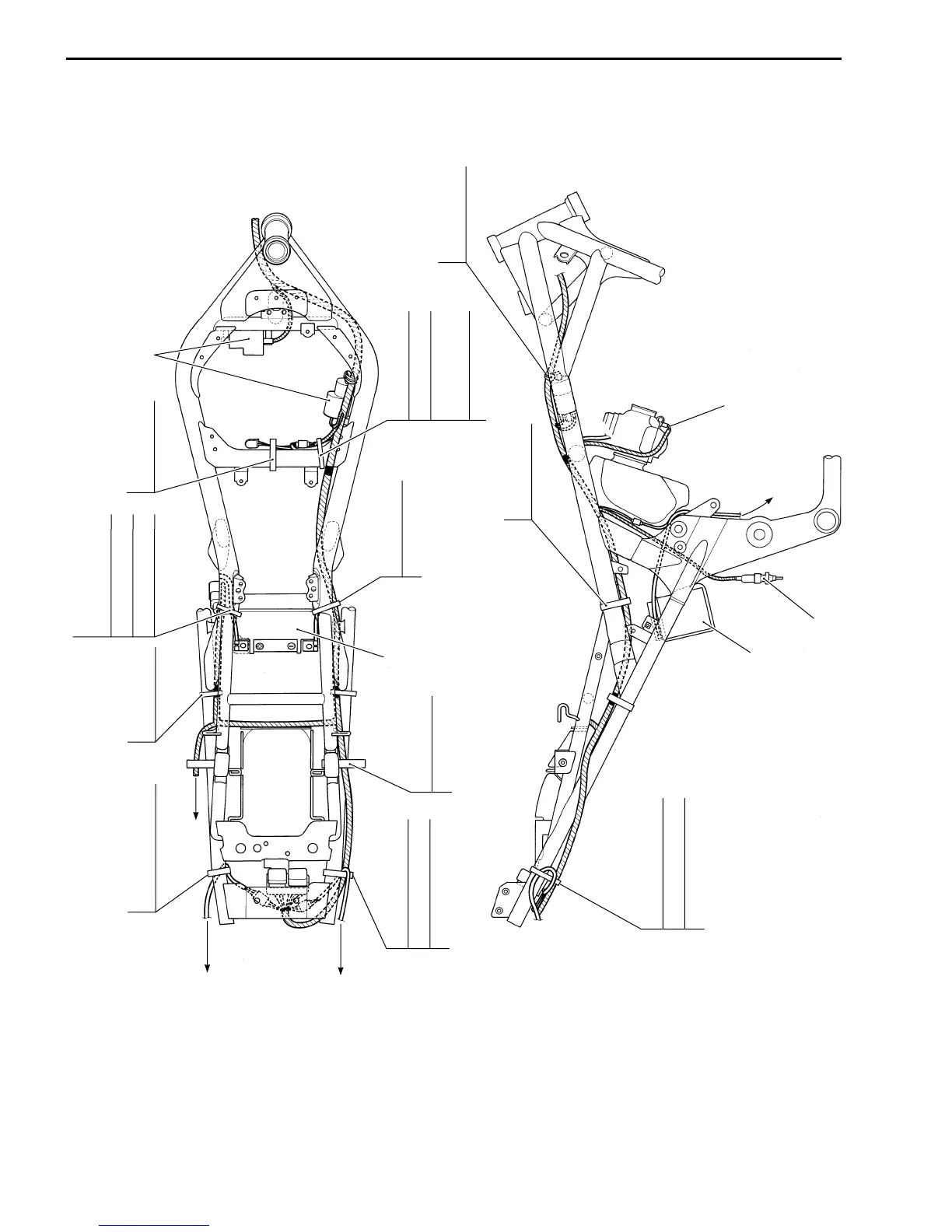

Rear turn signal (LH)
Clamp
Clamp
Wiring harness
Clamp
Wiring harness
Clamp
Wiring harness TPS Carburetor heater (E-02 only)
Clamp
Wiring harness
Rear turn signal (RH)
Clamp
Wiring harness
Rear turn signal (RH)
Clamp
Wiring harness
Clamp
Wiring harness
To rear turn signal (LH)
To rear turn signal (RH)
To CDI unit
Wiring harness
Clamp
Thermo switch
Clamp
Clamp
Gear position switch Side-stand switch Wiring harness
Ignition coil
Battery
Carburetor heater (E-02 only)
Battery
Brake light switch
To engine ground
WIRE HARNESS ROUTING
