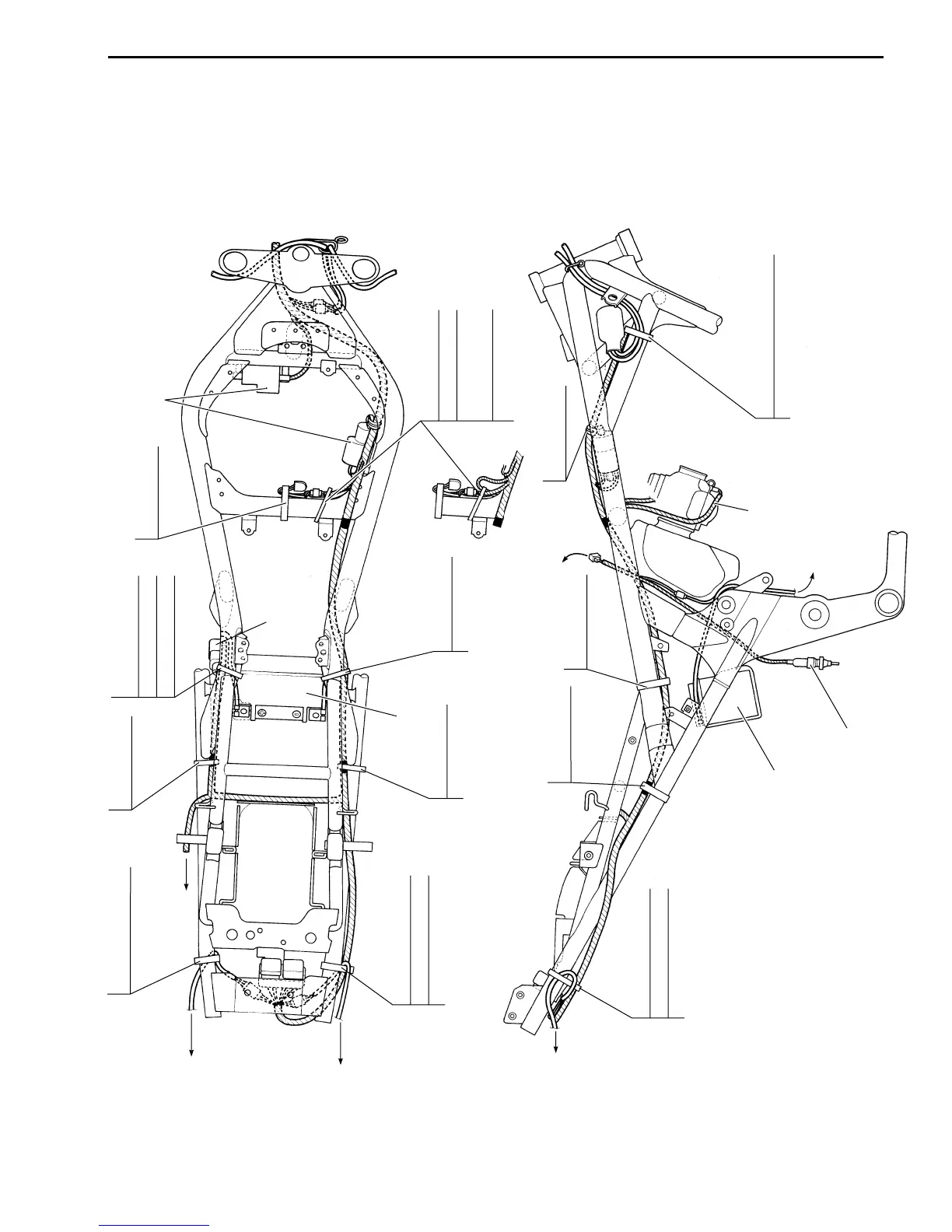

WIRE HARNESS ROUTING (GSF600S)
Ignition coil
Thermo switch
Clamp
Clamp
Neutral switch Side-stand switch Wiring harness
Wiring harness
Clamp
Rear turn signal (LH)
Clamp
To CDI unit
To rear turn signal (LH)
Clamp
Wiring harness
Rear turn signal (RH)
Clamp
Wiring harness
Battery
Clamp
Wiring harness
Clamp
Wiring harness TPS Carburetor heater (E-02 only)
Clamp
Wiring harness
Clamp
Handle switch (LH and RH)
Carburetor heater lead (E-02 only)
To engine ground
Battery
Brake light switch
Clamp
Wiring harness
Clamp
Wiring harness
Clamp
Wiring harness
Rear turn signal (RH)
To rear turn signal (RH)
To rear turn signal (RH)
Starter relay
To fuel level gauge
