Suzuki GSF650S - Brake Caliper Removal and Disassembly

5-60 CHASSIS

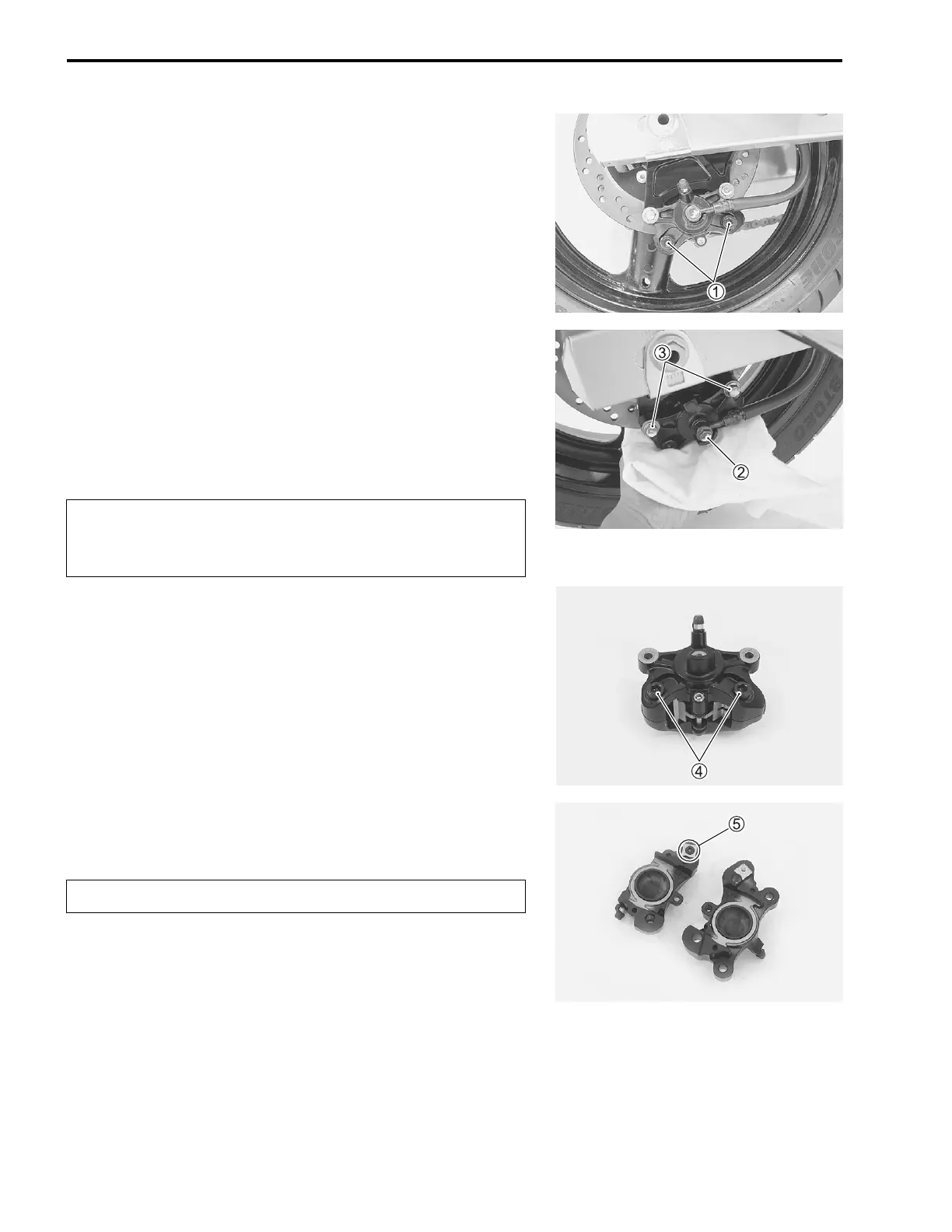

BRAKE CALIPER REMOVAL AND
DISASSEMBLY
• Drain brake fluid. (!5-59)
• Slightly loosen the brake caliper housing bolts

1 to facilitate
later disassembly before removing the brake caliper.
• Disconnect the brake hose from the brake caliper by remov-
ing the brake hose union bolt

2.
NOTE:
Place a rag underneath the union bolt to catch any spilt of brake
fluid.
• Remove the brake caliper mounting bolts

3.
)
• Remove the brake pads. (!5-58)
• Remove the brake caliper housing bolts

4.
• Separate the brake caliper halves.
• Remove the O-ring

5.
$
Brake fluid, if it leaks, will interfere with safe running
and discolor painted surfaces. Check the brake hose
and hose joints for cracks and fluid leakage.
Replace the O-ring

5 with a new one.
