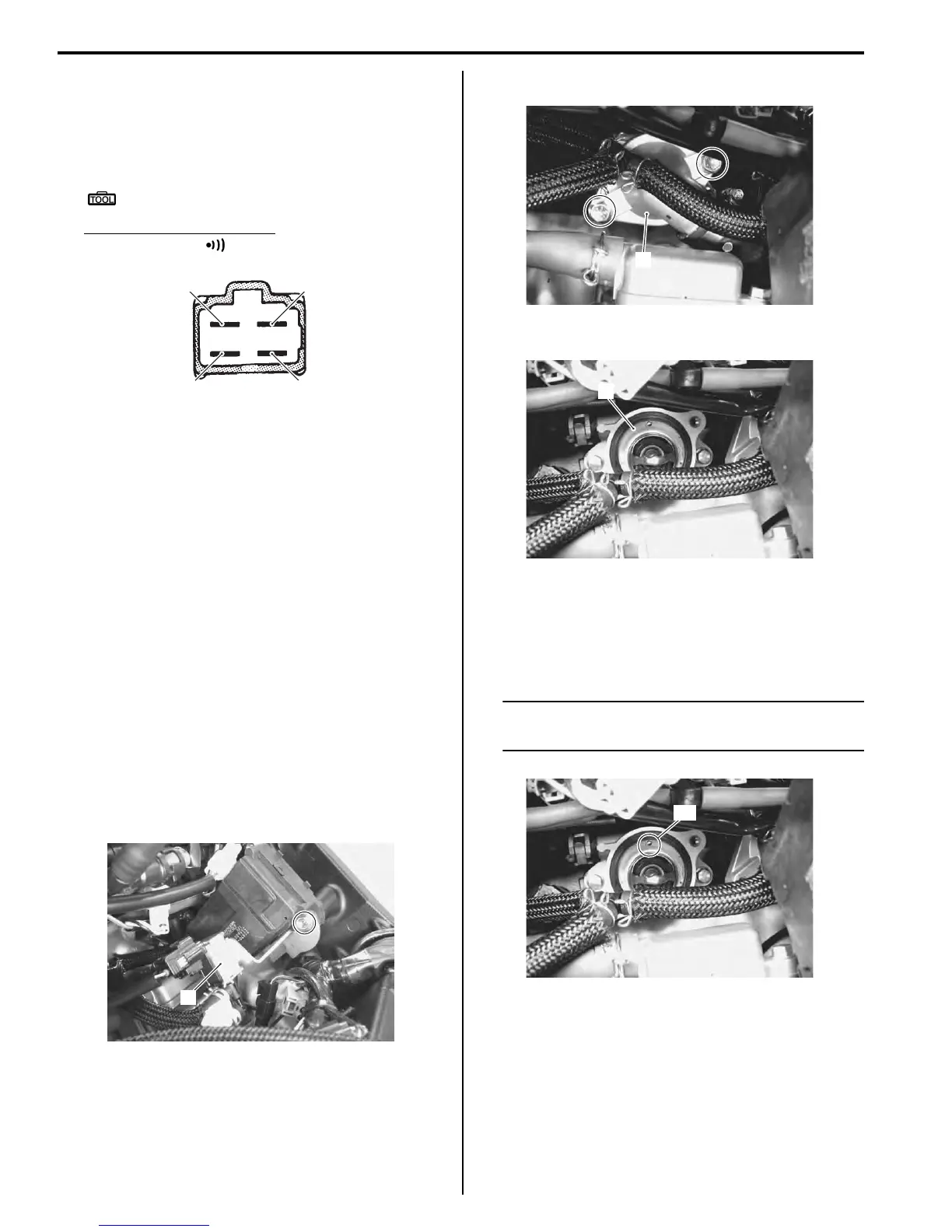

1F-9 Engine Cooling System:
3) First check the insulation between “A” and “B”
terminals with tester. Then apply 12 volts to “C” and
“D” terminals, (+) to “C” and (–) to “D”, and check the
continuity between “A” and “B”.
If there is no continuity, replace it with a new one.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication set
Continuity test ( )
4) Reinstall the removed parts.
ECT Sensor Removal and Installation
B837H11606011
Refer to “ECT Sensor Removal and Installation in
Section 1C (Page 1C-4)”.
ECT Sensor Inspection
B837H11606012
Refer to “ECT Sensor Inspection in Section 1C
(Page 1C-5)”.
Thermostat Removal and Installation
B837H11606013
Removal
1) Drain a small amount of engine coolant. Refer to
“Cooling System Inspection in Section 0B (Page 0B-
12)”.
2) Remove the fuel tank. Refer to “Fuel Tank Removal
and Installation in Section 1G (Page 1G-9)”.
3) Remove the EVAP system purge control solenoid
valve (1) (E-33 only).
4) Remove the thermostat cover (2).
5) Remove the thermostat (3).
Installation
Install the thermostat in the reverse order of removal.
Pay attention to the following points:
• Install the thermostat.
NOTE
The jiggle valve “A” of the thermostat faces
upside.
“A”
“B”
“C”
“D”
I718H1160006-03
1
I837H1160020-01
2
I837H1160021-01
3
I837H1160022-02
“A”
I837H1160023-01
