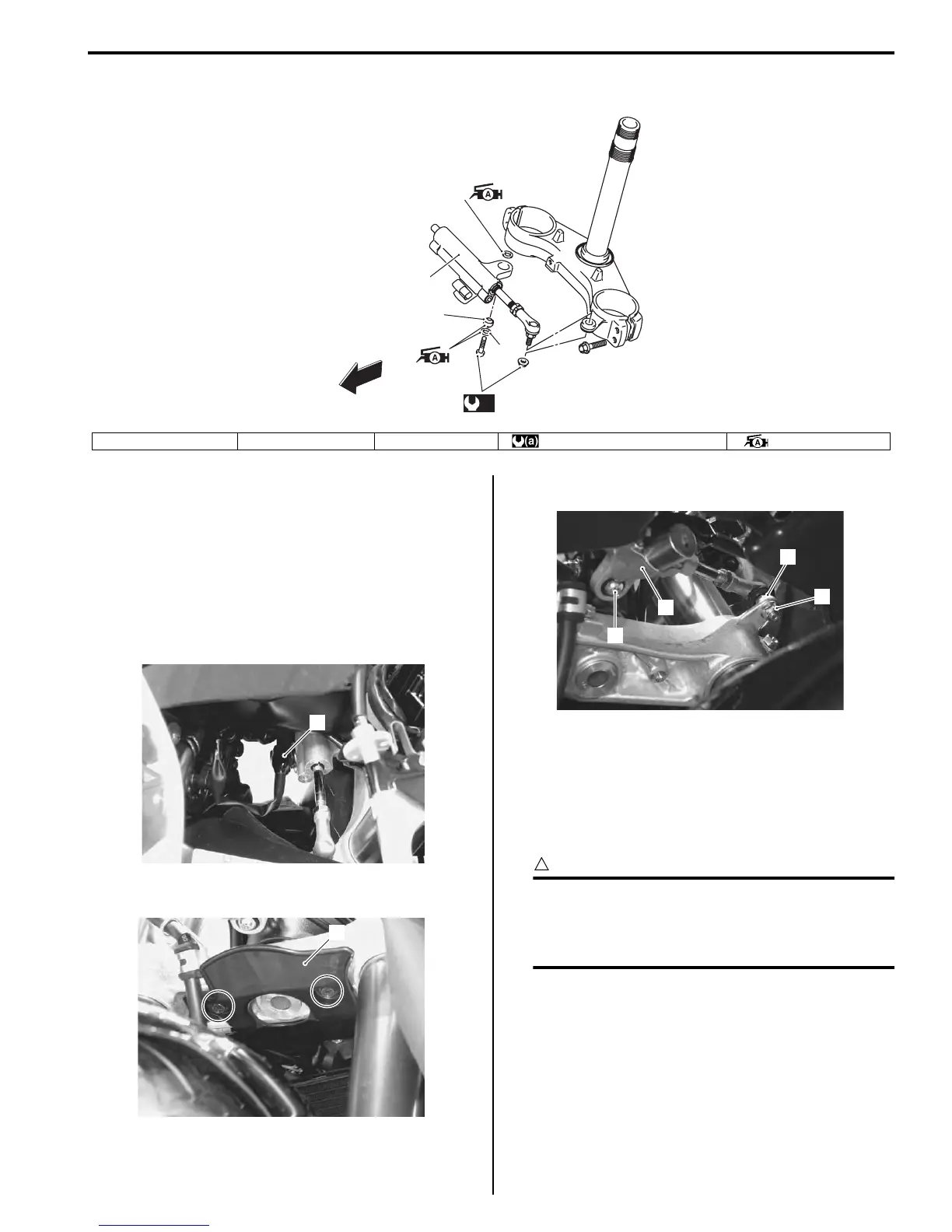

Steering / Handlebar: 6B-6
Steering Damper Construction
B837H16206006
Steering / Steering Damper Removal and
Installation
B837H16206012
Removal
Steering damper
1) Turn the ignition switch OFF.
2) Disconnect the steering damper solenoid coupler
(1).
3) Remove the lower bracket cover (2).
4) Remove the steering damper mounting nut (3) by
holding the lock-nut (4).
5) Remove the steering damper mounting bolt (5).
6) Remove the steering damper (6).
Steering
1) Remove the under cowlings. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
11)”.
2) Support the motorcycle with a jack or wooden block.
CAUTION
!
Do not work by using side stand. Do not
support the motorcycle with exhaust pipe.
Make sure that the motorcycle is supported
securely.
3) Remove the front wheel assembly. Refer to “Front
Wheel Assembly Removal and Installation in Section
2D (Page 2D-4)”.
4) Remove the front forks. Refer to “Front Fork
Removal and Installation in Section 2B (Page 2B-2)”.
5) Remove the steering damper. Refer to “Steering /
Steering Damper Removal and Installation
(Page 6B-6)”.
1. Steering damper 2. Dust seal 3. Bearing : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft) : Apply grease.
3
(a)
FWD
2
1
2
I837H1620040-01
1
I837H1620012-01
2
I837H1620013-01
3
5
4
6
I837H1620014-02
To Next Page
