Drive Chain / Drive Train / Drive Shaft: 3A-1
Driveline / Axle
Drive Chain / Drive Train / Drive Shaft
Diagnostic Information and Procedures
Drive Chain and Sprocket Symptom Diagnosis
B837H13104001
Repair Instructions
Drive Chain Related Components
B837H13106001
Condition Possible cause Correction / Reference Item
Noisy Drive Chain Worn sprocket. Replace.
Worn drive chain. Replace.
Stretched drive chain. Replace.
Too large drive chain slack. Adjust.
Drive chain out of adjustment. Adjust.
8
7
6
5
4
3
(b)
2
1
(a)
I837H1310031-03

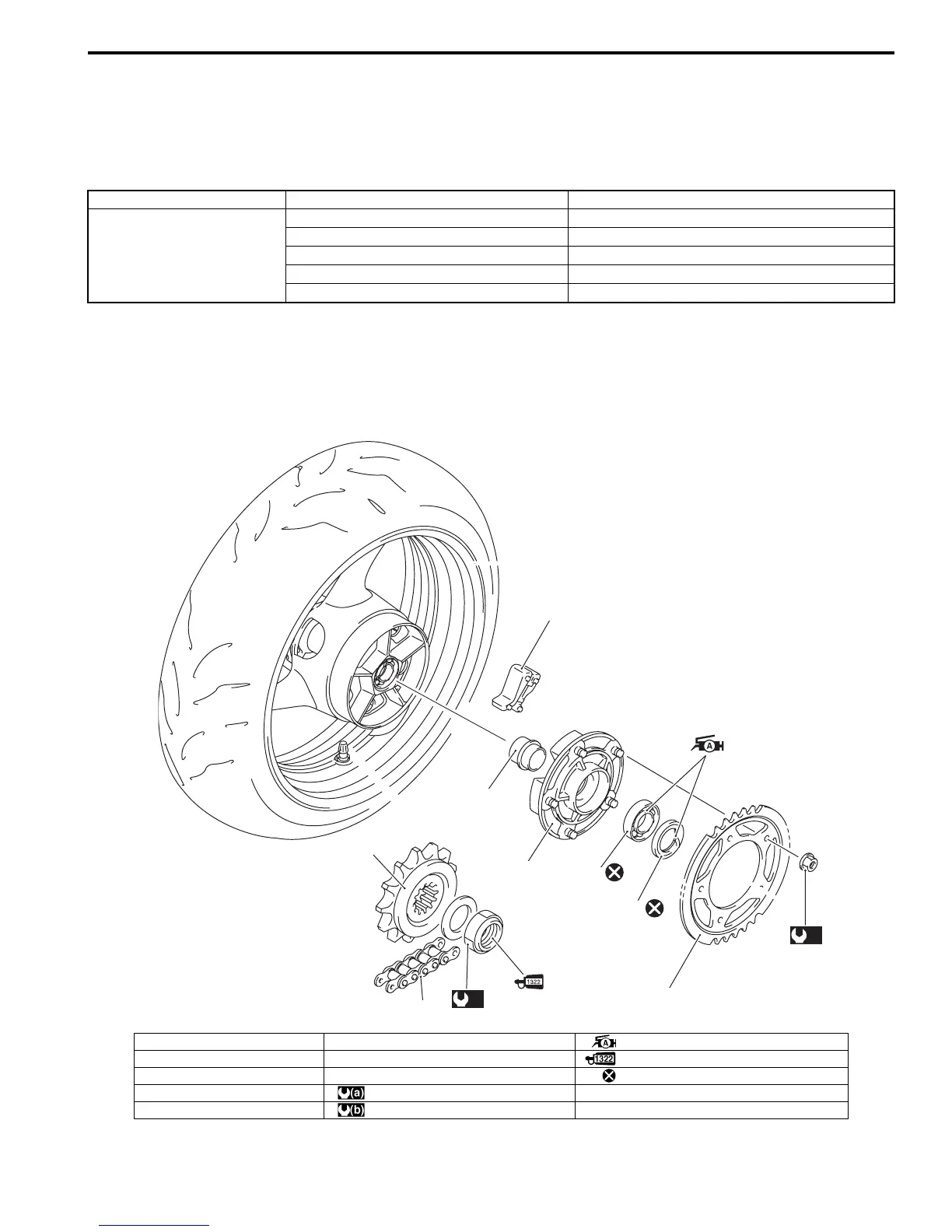

1. Drive chain 6. Sprocket mounting drum : Apply grease.
2. Engine sprocket 7. Retainer : Apply thread lock to thread part.
3. Rear sprocket 8. Wheel damper : Do not reuse.
4. Dust seal : 115 N⋅m (11.5 kgf-m, 83.0 lb-ft)
5. Bearing : 60 N⋅m (6.0 kgf-m, 43.0 lb-ft)

Suzuki GSX-R600 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.9:1
Fuel System	Fuel injection
Starter	Electric
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Displacement	599cc
Transmission	6-speed, constant mesh
Front Tire Size	120/70ZR17M/C (58W)
Rear Tire Size	180/55ZR17M/C (73W)
Overall Length	2030 mm
Overall Width	710 mm
Seat Height	810 mm
Ground Clearance	130 mm
Curb Weight	187 kg
Fuel Tank Capacity	17.0 L
