Exhaust System: 1K-4
Repair Instructions

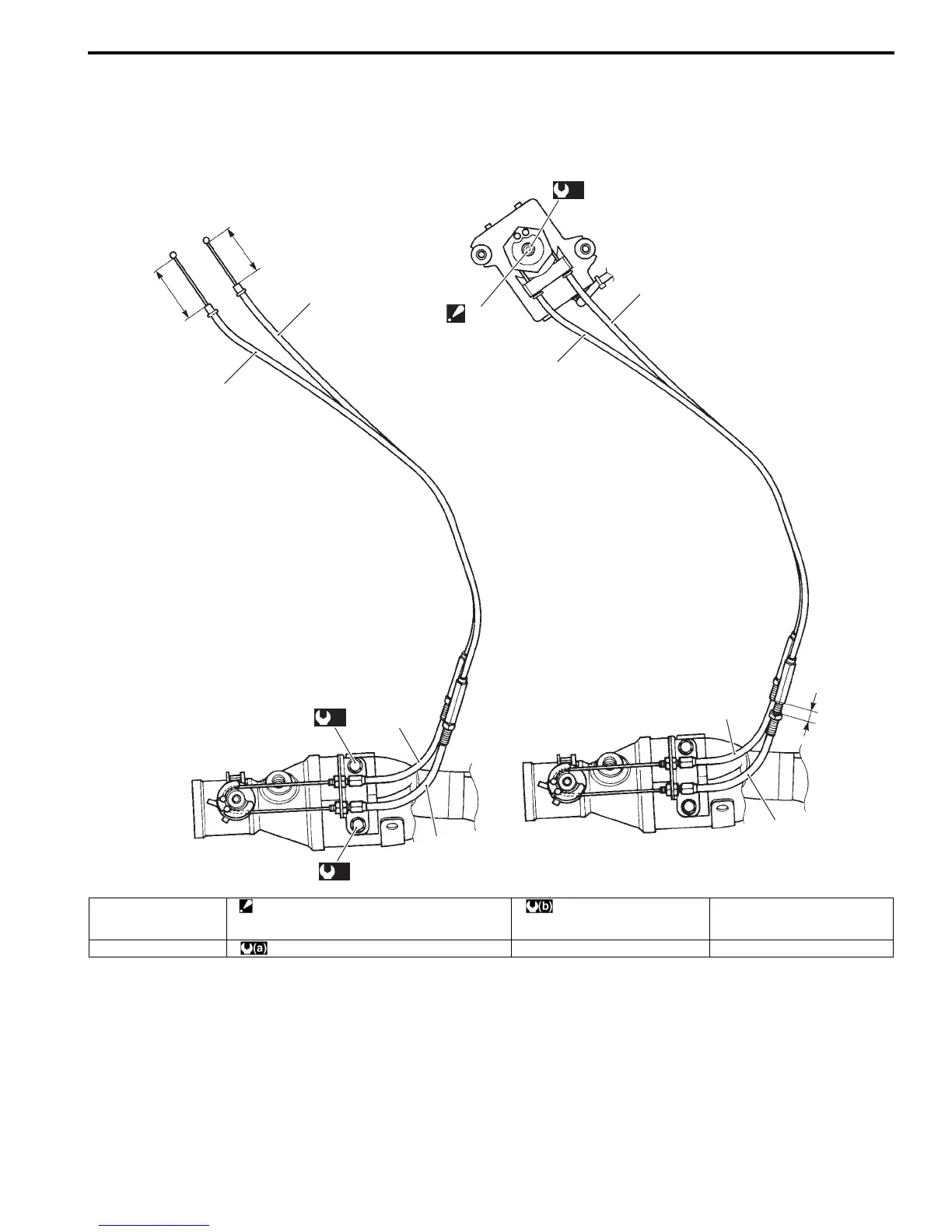

Exhaust Control System Construction
B837H11B06001
“a”
“b”
“c”
1
2
(b)
2
1
2
1
(a)
(a)
1
2
“A”
I837H11B0040-02
1. EXCV cable No. 1 “A”: When loosening or tightening the pulley bolt,
be sure to fix the pulley with an adjustable
wrench, or EXCVA may get damaged.
:5 N⋅m (0.5 kgf-m, 3.5 lb-ft) “b”: 60 – 61 mm (2.36 – 2.40 in)
2. EXCV cable No. 2 : 5.5 N⋅m (0.55 kgf-m, 4.0 lb-ft) “a”: 44 – 45 mm (1.73 – 1.77 in) “c”: 11 – 12 mm (0.43 – 0.47 in)

Suzuki GSX-R600 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.9:1
Fuel System	Fuel injection
Starter	Electric
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Displacement	599cc
Transmission	6-speed, constant mesh
Front Tire Size	120/70ZR17M/C (58W)
Rear Tire Size	180/55ZR17M/C (73W)
Overall Length	2030 mm
Overall Width	710 mm
Seat Height	810 mm
Ground Clearance	130 mm
Curb Weight	187 kg
Fuel Tank Capacity	17.0 L
