Suzuki GSX-R600 User Manual

Front Brakes: 4B-1
Brake
Front Brakes
Repair Instructions

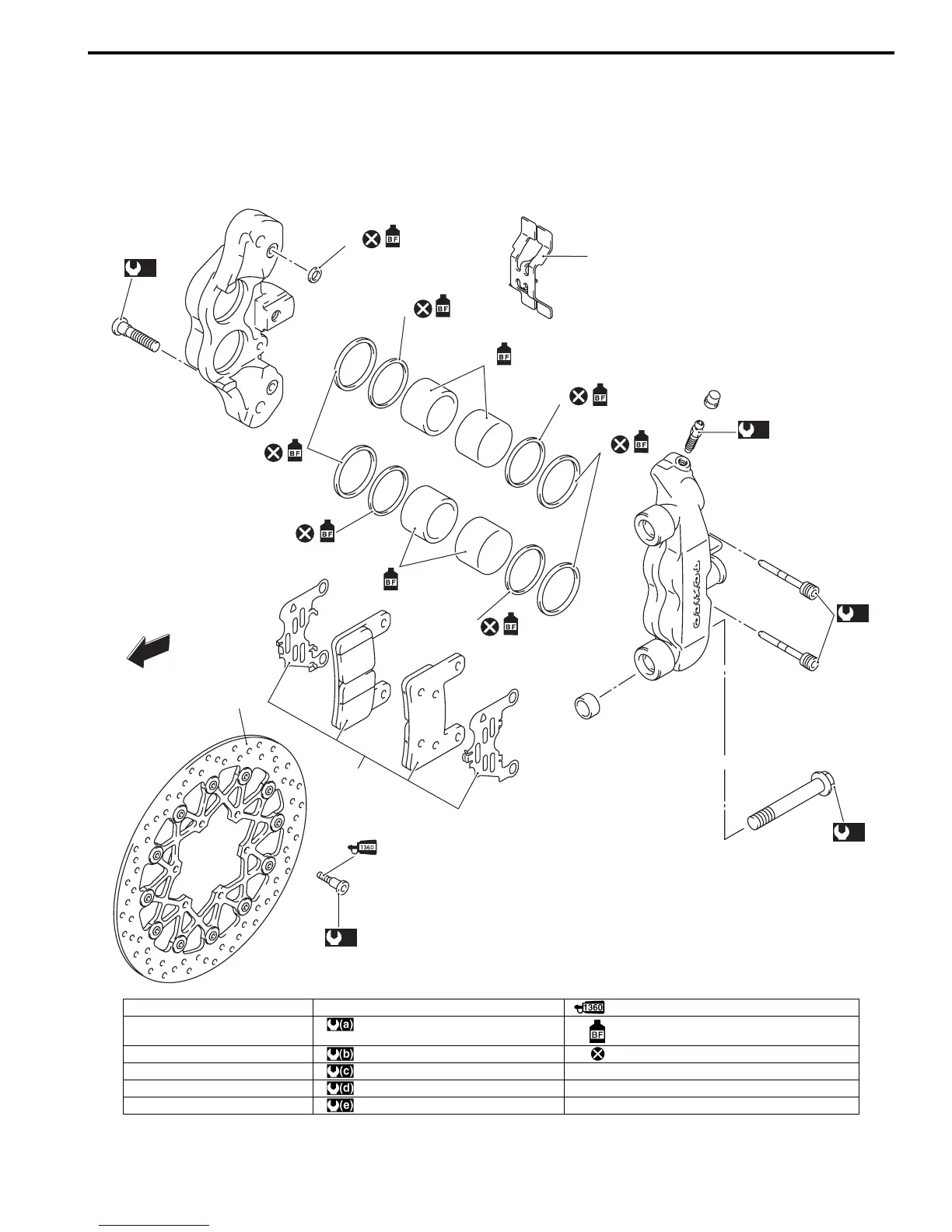

Front Brake Components
B837H14206001
(c)
1
2
3
3
3
3
2
5
6
7
4
4
(a)
(b)
(d)
(e)
FWD
FWD
I837H1420022-02
1. O-ring 7. Front brake disc : Apply thread lock to the thread part.
2. Piston seal : 22 N⋅m (2.2 kgf-m, 16.0 lb-ft) : Apply brake fluid.
3. Dust seal : 7.5 N⋅m (0.75 kgf-m, 5.5 lb-ft) : Do not reuse.
4. Piston : 16 N⋅m (1.6 kgf-m, 11.5 lb-ft)
5. Brake pad spring : 39 N⋅m (3.9 kgf-m, 28.0 lb-ft)
6. Front brake pad set : 18 N⋅m (1.8 kgf-m, 13.0 lb-ft)

Suzuki GSX-R600 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.9:1
Fuel System	Fuel injection
Starter	Electric
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Displacement	599cc
Transmission	6-speed, constant mesh
Front Tire Size	120/70ZR17M/C (58W)
Rear Tire Size	180/55ZR17M/C (73W)
Overall Length	2030 mm
Overall Width	710 mm
Seat Height	810 mm
Ground Clearance	130 mm
Curb Weight	187 kg
Fuel Tank Capacity	17.0 L
