Wheels and Tires: 2D-9

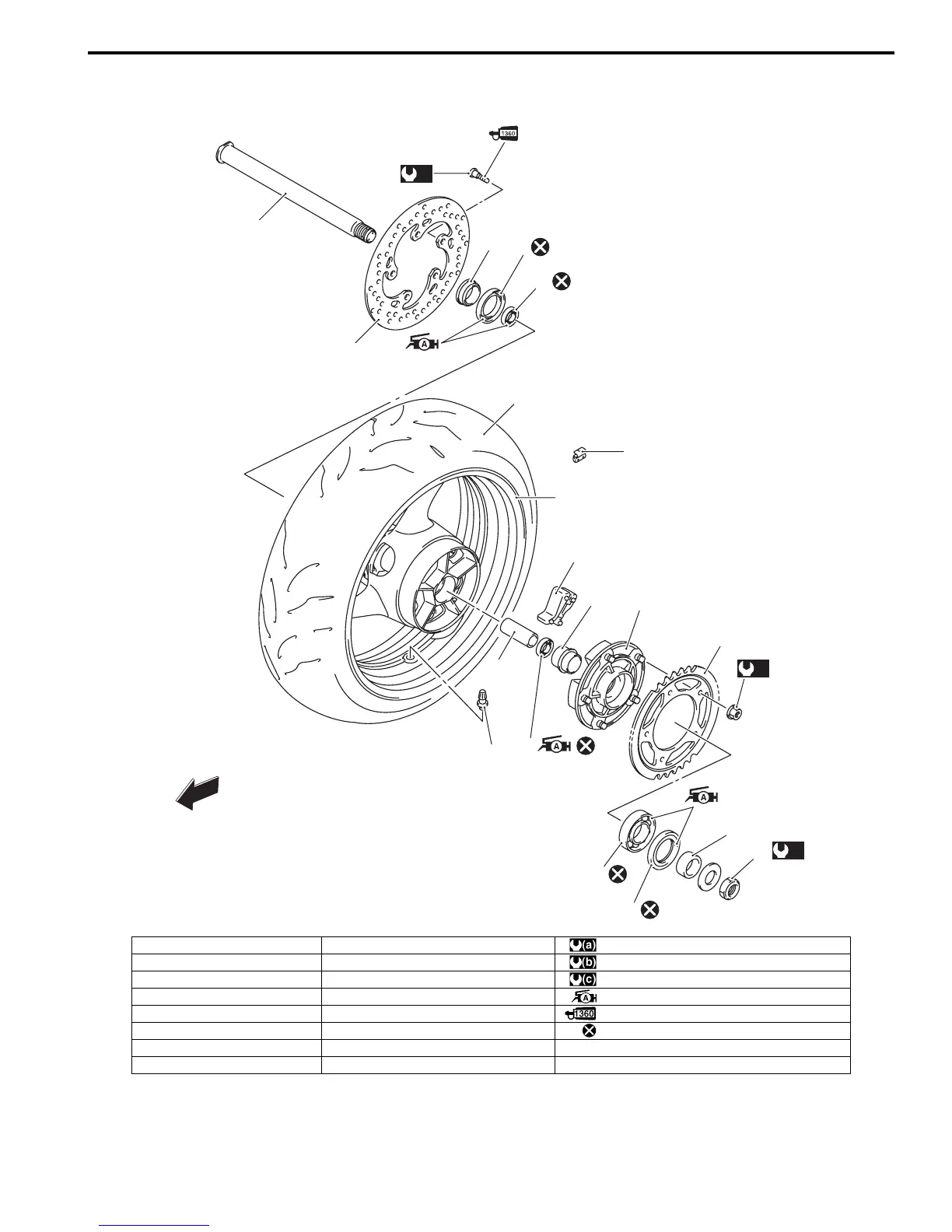

Rear Wheel Components
B837H12406006
2
3
5
6
7
8
9
11
10
12
13
14
15
4
3
4
4
16
(b)
(c)
(a)
1
FWD
FWD
I837H1240038-01
1. Rear axel nut 9. Spacer : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft)
2. Spacer 10. Air valve : 35 N⋅m (3.5 kgf-m, 25.5 lb-ft)
3. Dust seal 11. Rear wheel : 60 N⋅m (6.0 kgf-m, 43.0 lb-ft)
4. Bearing 12. Wheel balancer : Apply grease.
5. Rear sprocket 13. Tire : Apply thread lock to the thread part.
6. Sprocket mounting drum 14. Collar : Do not reuse.
7. Retainer 15. Rear brake disc
8. Wheel damper 16. Rear axle

Suzuki GSX-R600 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.9:1
Fuel System	Fuel injection
Starter	Electric
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Displacement	599cc
Transmission	6-speed, constant mesh
Front Tire Size	120/70ZR17M/C (58W)
Rear Tire Size	180/55ZR17M/C (73W)
Overall Length	2030 mm
Overall Width	710 mm
Seat Height	810 mm
Ground Clearance	130 mm
Curb Weight	187 kg
Fuel Tank Capacity	17.0 L
