CHASSIS 5-23

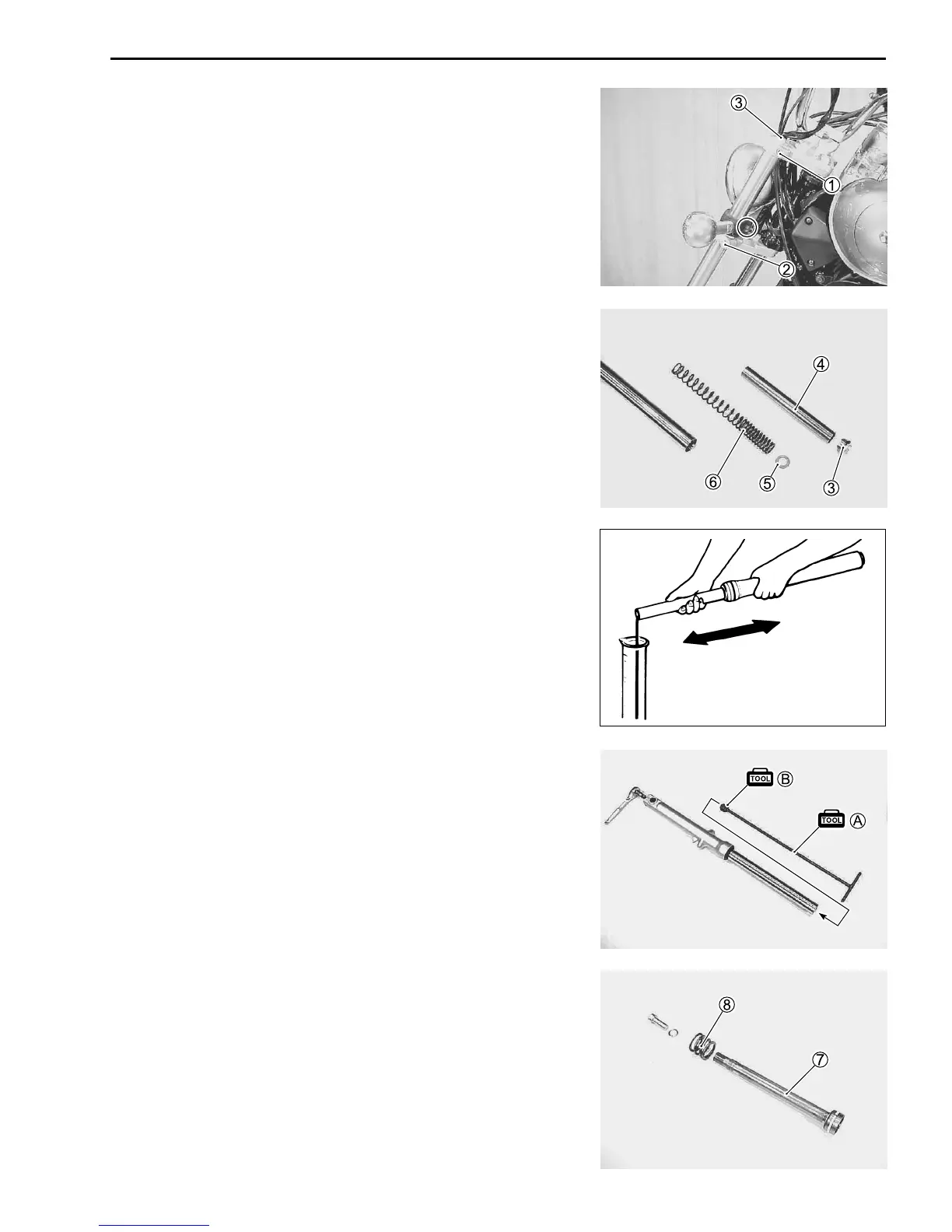

• Remove the turn signal light.
• Remove the front fork after loosening the front fork upper and
lower clamp bolts (1, 2)
NOTE:
Slightly loosen the front fork cap bolt
3
to facilitate later disas-
sembly.
• Remove the front fork cap bolt 3, spacer 4, washer 5 and
spring 6.
• Invert the front fork and stroke it several times to drain out the
fork oil.
• Hold the front fork in the inverted position for a few minutes to
allow the fork oil to fully drain.
• With the damper rod held immovable, remove the damper rod
bolt.
% 09940-34520: “T” handle A
09940-34581: Attachment B
• Remove the damper rod 7 and rebound spring 8 from the
inner tube.
