2 KIT COMPONENTS
2.1 SV 104A dosimeter short form specification
• Acoustic Dosimeter conforming to international standards IEC 61252; ANSI S1.25;
• Class 2 Microphone, MEMS type: ST 104A, 1/2" housing with LIFETIME WARRANTY!
• OLED colour display with super brightness and contrast
• Large 8GB memory
• Wireless connectivity with low energy Long Range Bluetooth
®
Smart (4.0) interface
• USB 2.0 high speed interface
• Parallel Slow, Fast, Impulse detectors for the measurements with A, C, Z filters
• Frequency Range 20 Hz ÷ 10 kHz
• Measurement range better than 53 dBA RMS ÷ 141 dBA Peak
• Dynamic Range better than 98 dB
• Exchange rates 2, 3, 4, 5, 6
• Measurement results: Run Time (TIME), Lpeak, Lmax, Lmin, L, DOSE (%), D_8h, PrDOSE, Leq,
LAV, LE, SEL8, E, E_8h, LEPd, PSEL, Ltm3, Ltm5, Lstat, PTC, PTP, ULT, TWA, PrTWA, Lc-a,
OVL, No Motion Time
• 3 independent user configurable acoustic measurement profiles
• Easy in use predefined setups
• Time-history data logging of Leq/Lav/Lmax/Lmin/Lpeak with variable 0.1 s to 1 hr logger step and
separate summary results intervals with statistical levels
• 1/1 Octave real time analysis - 9 filters with centre frequencies 31 Hz ÷ 8 kHz, Type 2 – IEC 1260;
presented as a bar graph with Leq and Lmax band levels plus overall A, C and Z broadband weightings
(as option called SF 104A-OCT)
• 1/3 Octave real time analysis - 28 filters with centre frequencies 20 Hz ÷ 10 kHz, Type 2 – IEC 1260;
presented as a bar graph with Leq and Lmax band levels plus overall A, C and Z broadband weightings
(as option called SF 104A-3OCT)
• Audio events recording, triggered and continuous mode, 12/24 kHz sampling rate, wav format
(as option called SF 104A-WAV)
• Voice Comments records audio on demand, created before or after measurement, added to
measurement file
• Vibration shock detector with user selectable variable threshold: 1g-15g
• Automatic acoustic field calibration with one touch activation before and after measurement
• Operational time > 48 hours (display off, Bluetooth
®
off, octave analysis off)
• Extremely compact, lightweight and robust case with IP65 ingress protection

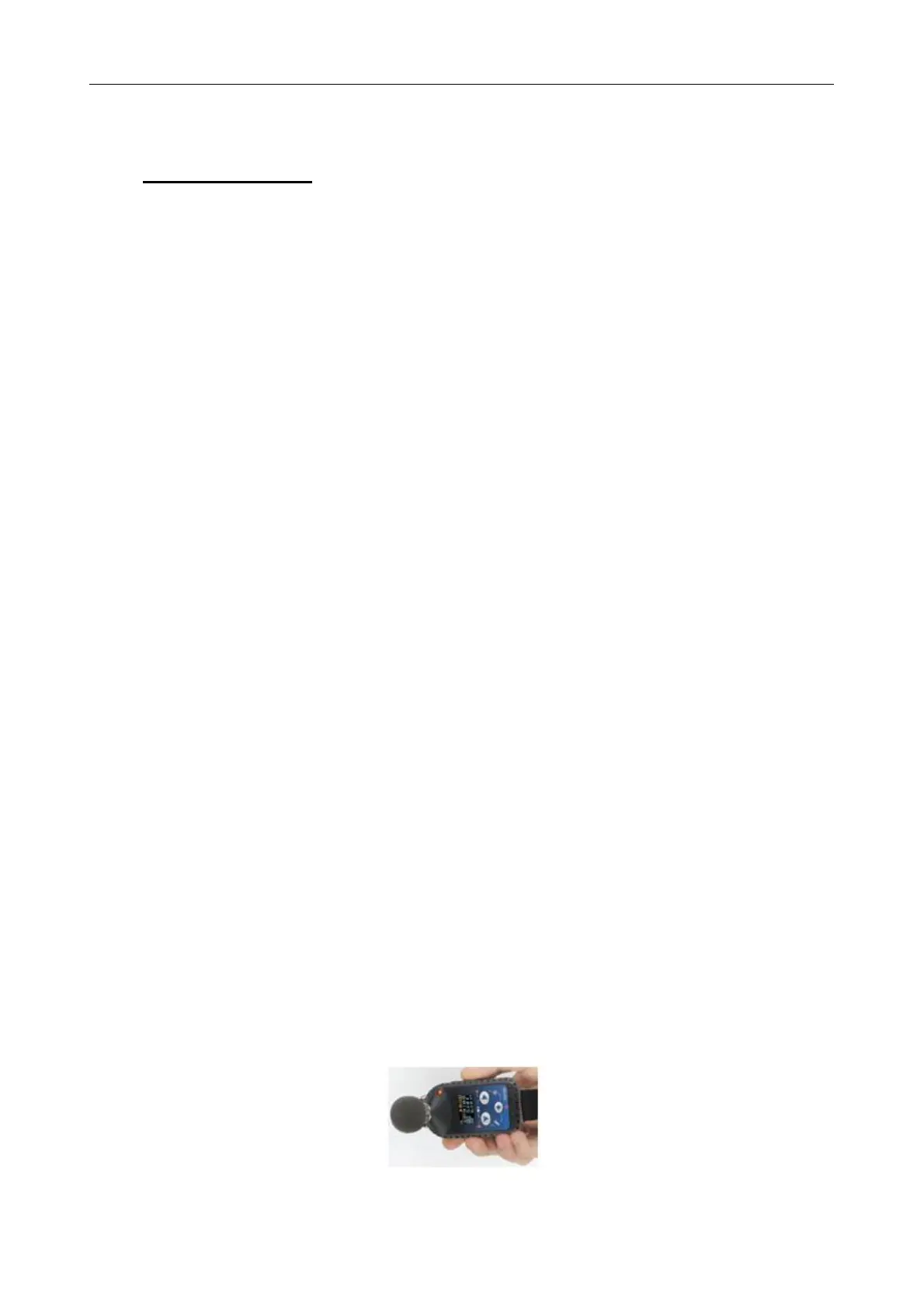

Figure 2-1 SV 104A instrument with the microphone and windshield
