6.5.6 Octave analysis Spectrum configuration tab
Real time 1/1 or 1/3 octave analysis is an additional optional feature. Therefore, it has its own settings
tab. Within this tab there are the following panels:
• named “Data”: This configures the weighting filter that is to be used with octave calculation.
• named “Scale”: Here the visible dynamic range of the graphical plot can be set, as well as the
grid visibility enabled

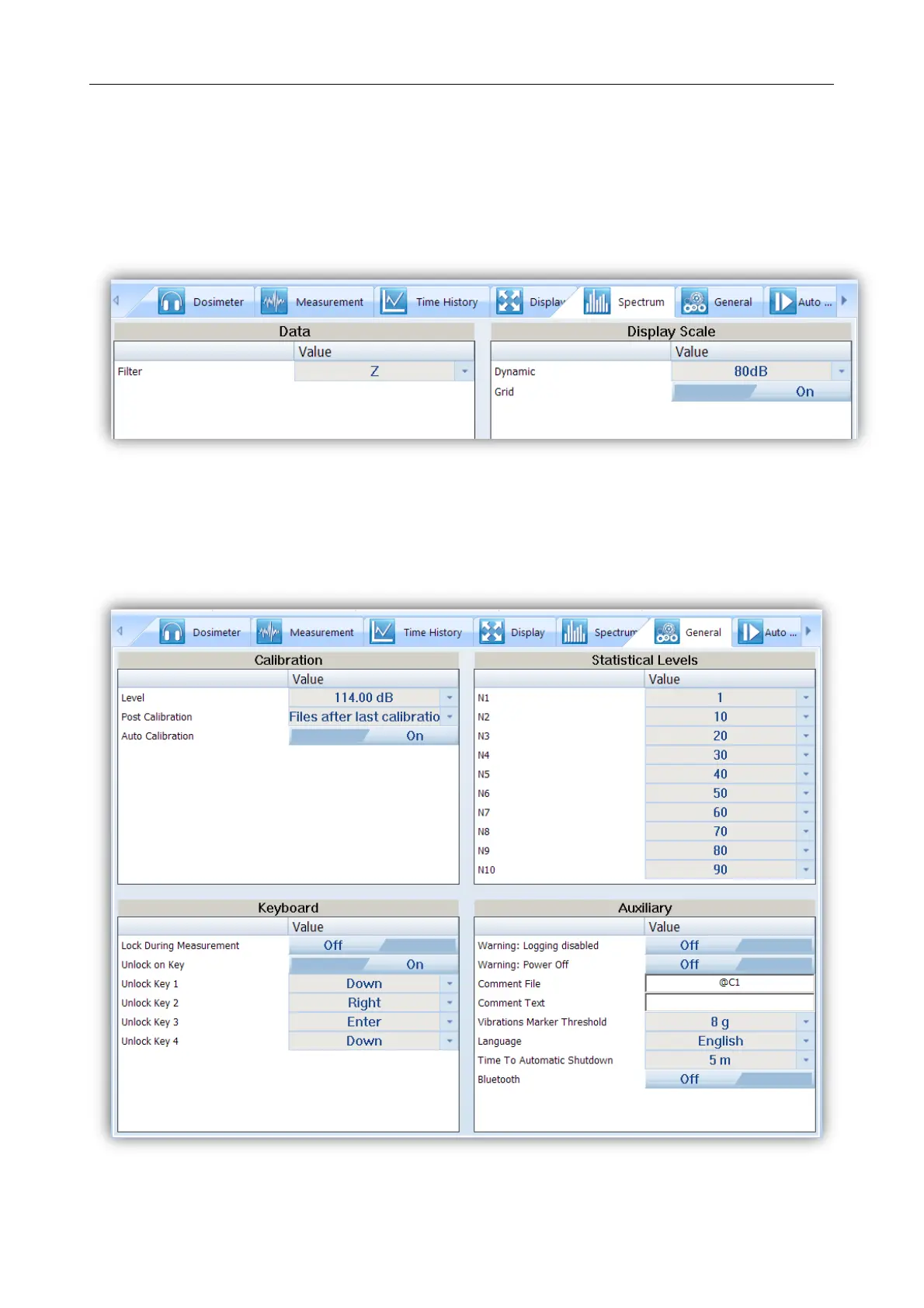

Figure 6-12 Spectrum configuration tab
6.5.7 General settings tab
General settings tab concerns to many different usability options: See the followed by chapters
to understand exactly how to configure these instrument settings.
Figure 6-13 General settings tab
