SV 104A USER'S MANUAL_______________________________________________________
66
6.6 Working with data files
6.6.1 Instrument files
If you want to download any recorded files, regardless the type: logger, voice comment, or audio events
files, you should click the “Download” button on the control area.

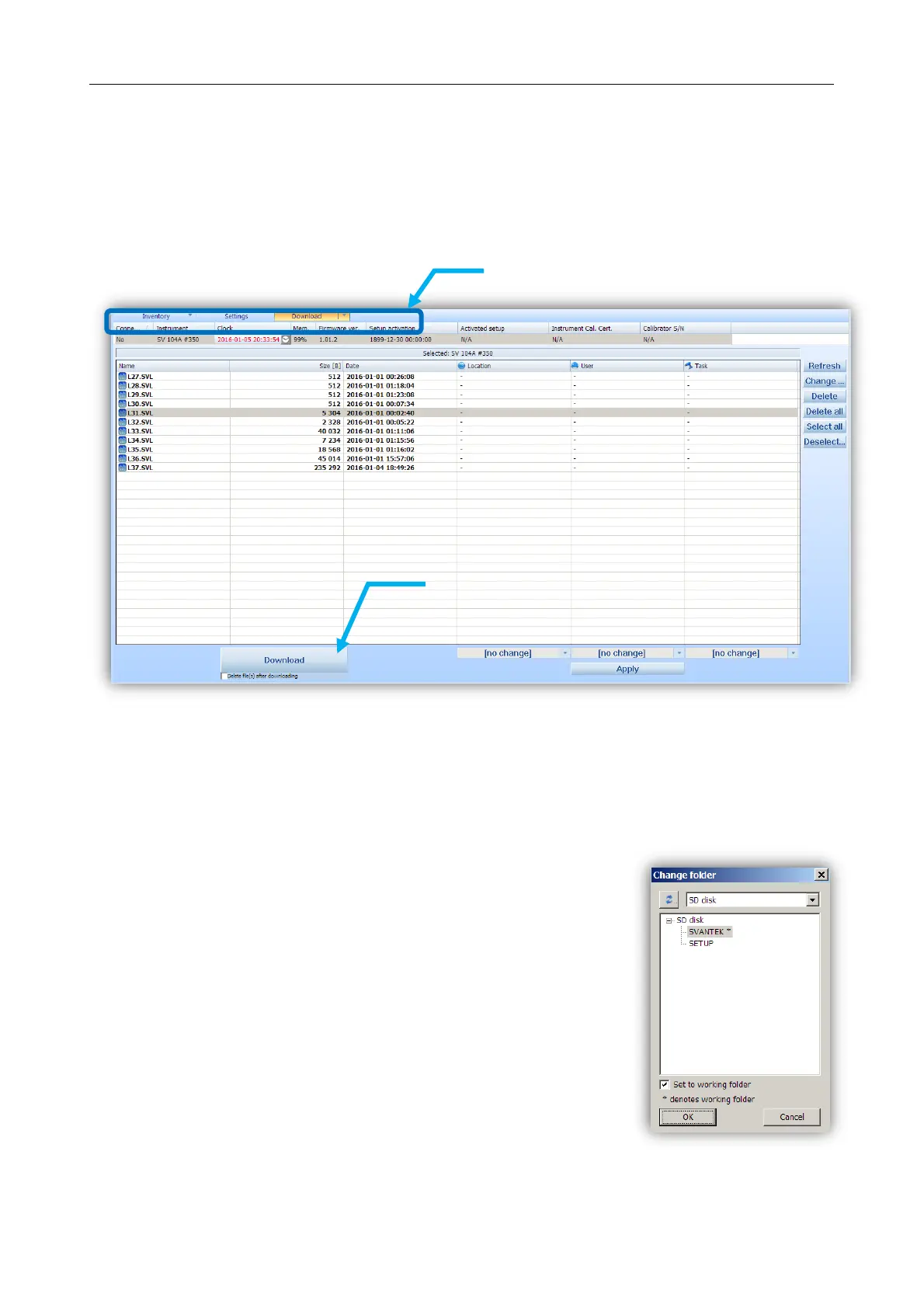

Figure 6-20 SV 104A Download window
Press the “Download” button, located in bottom area, and the previously selected run data files will be
downloaded to local computer and the Supervisor will enter “Data Browser” (see chapter 6.6.2) to further
manage downloaded files. Run data files in the instrument can be optionally deleted after download by
checking the box under the Download button.
To change the working directory or scan other folders, press the
“Change dir” button, and appropriate window will appear, see figure below.
Figure 6-21 Change instrument working directory window
