9. Crankshaft / Crankcase / Transmission / Kick Starter
Crankcase Disassembly
9-5

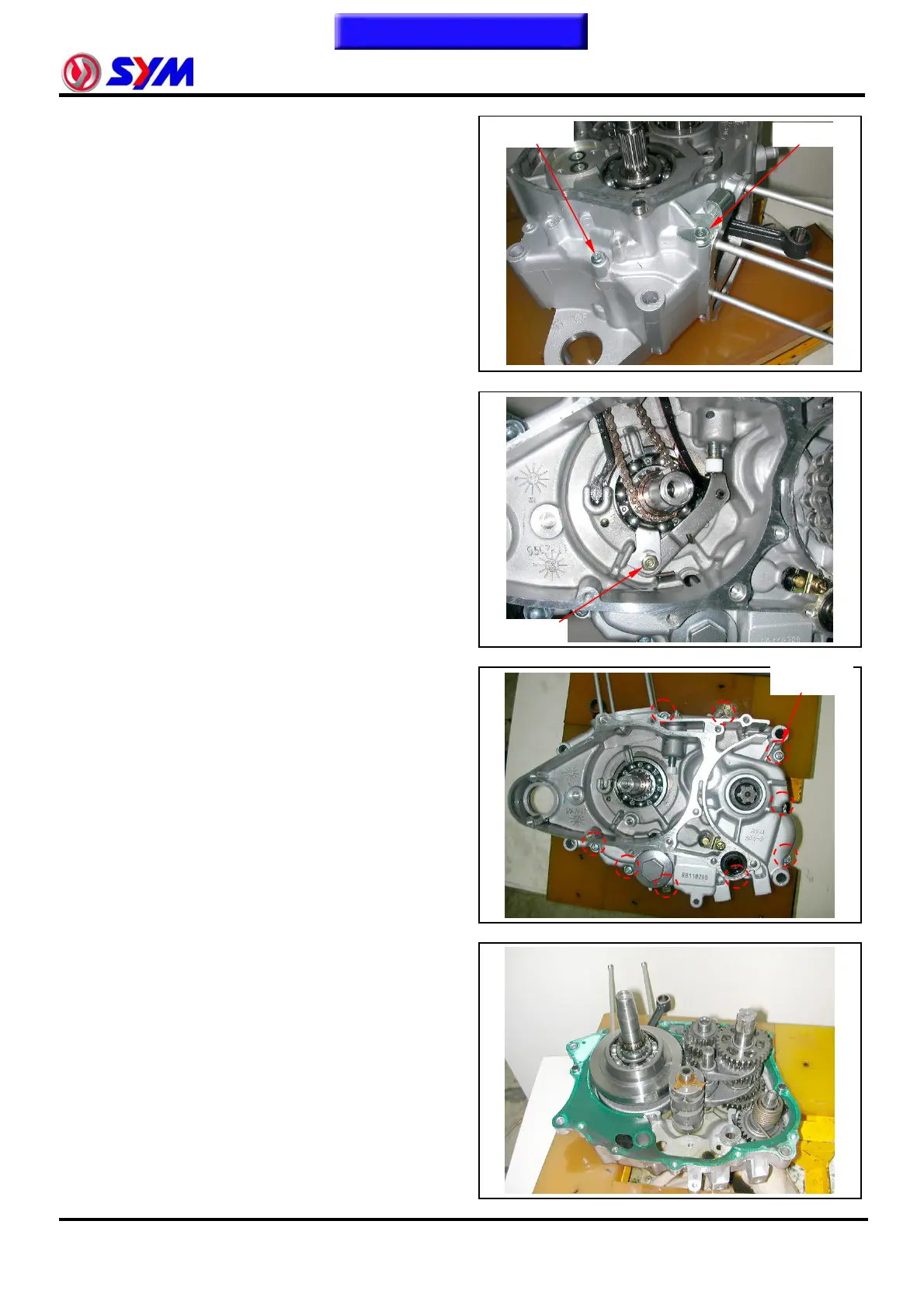

Remove the 6mm screw and clutch wire hold
bolt from the right crankcase.
Remove the cam chain tensioner arm (bolt x
1).
Remove the cam chain.
Remove the 6mm screws from the left
crankcase (screw x 9).
Remove the left crankcase from the right
crankcase.
Shake the crankshaft gently and pull out the
crankshaft.
Bolt ×1
Bolt ×1
Screw ×9
Screw ×1
