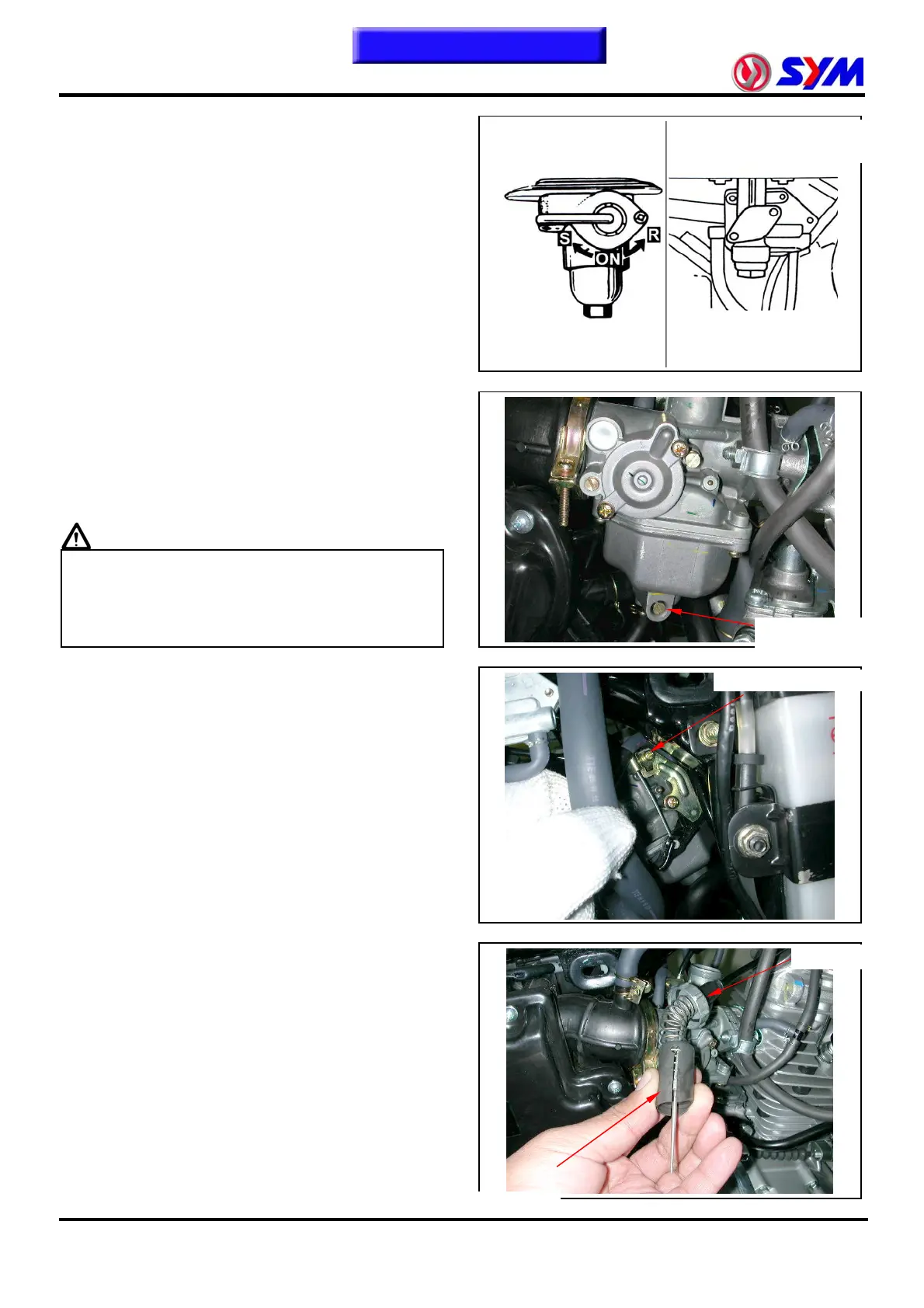

3. Fuel System
Carburetor Removal
3-4
Removal
Turn the fuel cock switch to the S position ( If
the fuel cock is vacuum type, it won’t be
necessary)
Put a container near the fuel drain screw, and
loosen it. Drain all the fuel of the float
chamber
Warning
z Gasoline should stay away from fire, and
avoid getting on the frame. If gasoline
gets on the frame, please wash it off
immediately.
Loosen the choke wire clamp screw, and
remove the choke wire.
Remove the carburetor top cover by turning it
counterclockwise. Remove the top cover,
throttle cable, and throttle valve.
Automatic Fuel
cock (Vacuum)
Manual fuel
cock
Fuel drain screw
Choke wire clam
screw
Top cover
Throttle valve
