11. Steering / Front Wheel / Front Fork
Steering Stem
11-20

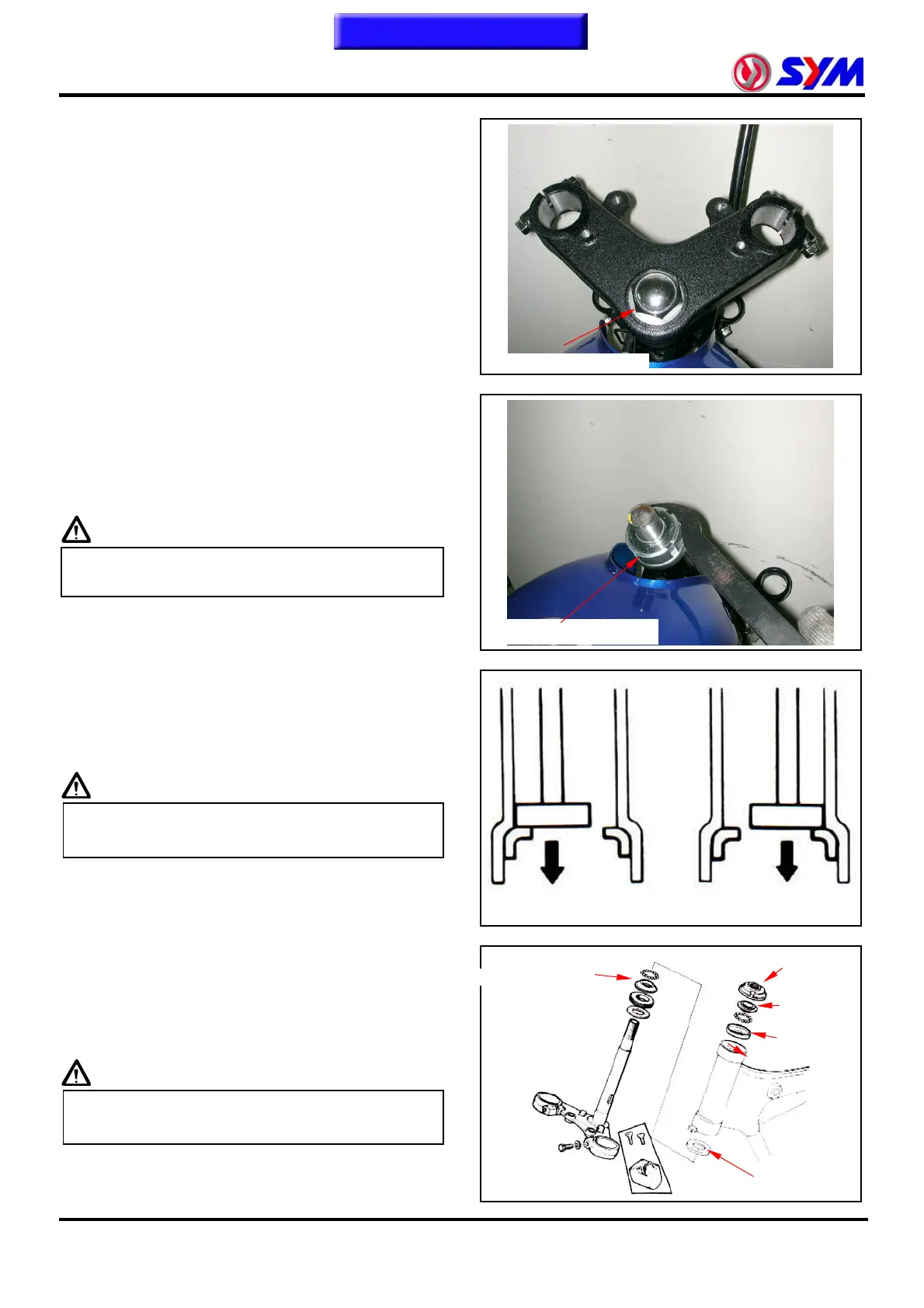

Removal
Remove the meter, headlight, steering
handlebar, front wheel, front brake and front
fork.
Remove the top bridge.
Remove the steering stem locknut and
steering upper cone race.
Special tool：
Stem locknut socket wrench SYM-5320000
Remove the steering stem.
Caution
y Keep the steering steel balls in a
container to avoid missing them.
Remove the steering upper / bottom ball race
by driver and rubber hammer.
Remove the steering bottom cone race from
the steering stem.
Caution
y Do not do any damage to the frame and
steering stem.
Installation
Install a new steering bottom cone race onto
the steering stem and lubricate with grease.
Install the steering upper / bottom ball race to
the right position.
Caution
y Do not let the ball race lean on one side
during installation.
Coat the upper / bottom ball race with grease
and install the steering balls.
T
o
p
brid
g
e locknut
Steering stem thread
B
ottom cone race
Steering stem thread
Upper cone race
Upper ball race
Button ball race
