11. Steering / Front Wheel / Front Fork

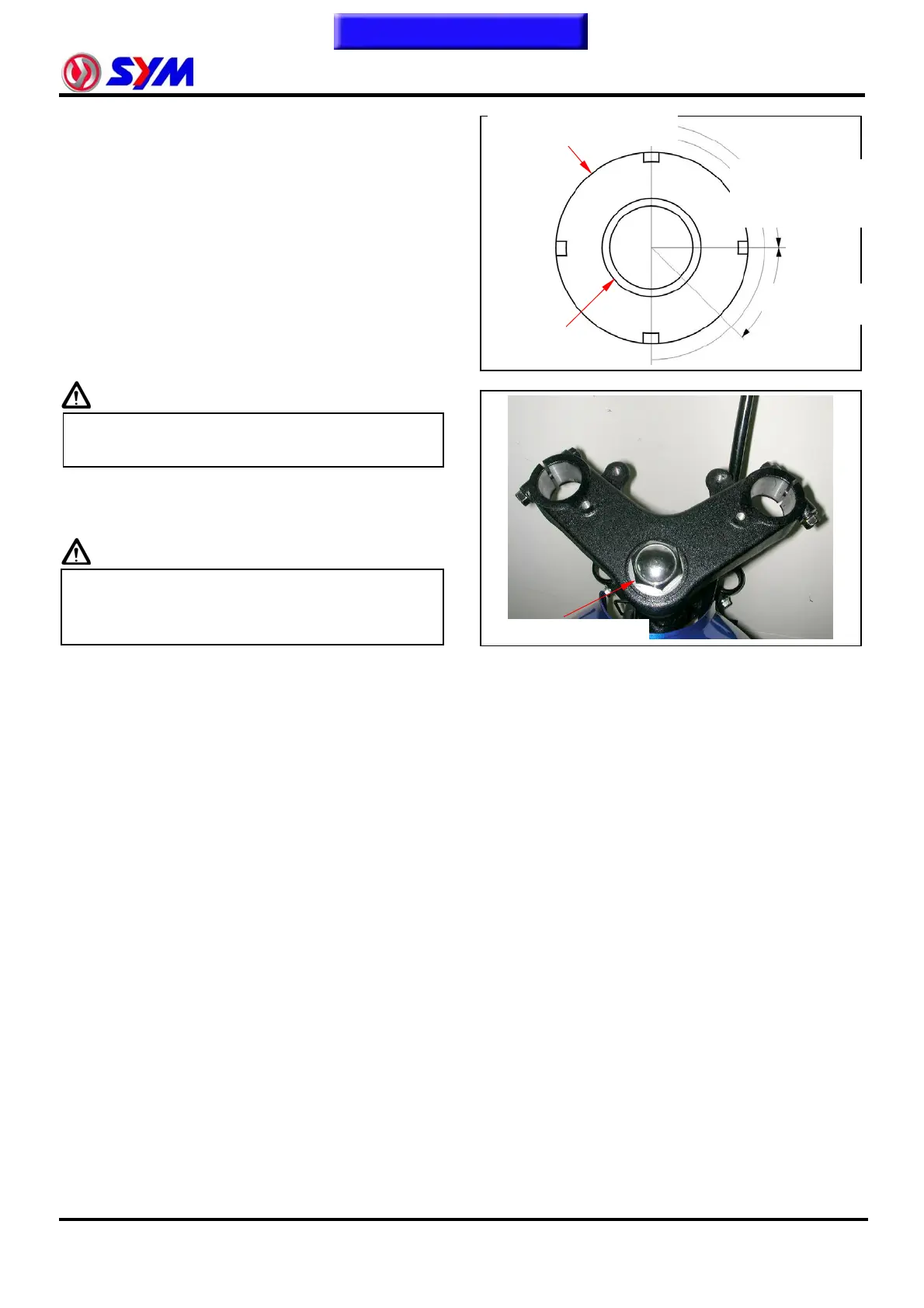

Install the steering stem into the frame.
11-21
Lubricate the steering upper cone race.
Tighten the upper cone race and steering
stem locknut to the steering stem till the
steering balls touch the upper cone race
closely.
Turn the upper cone race counterclockwise
1/2 circle and then tighten it with specific
torque value (1/4~3/8 circle).
Special tool：
Upper cone race wrench SYM-5320000
Torque value：0.15~0.25kgf-m
Caution
● Do not over tighten upper cone race or
the steering ball race may be damaged.
Install the top bridge and tighten the nuts.
Torque value：6.0~8.0kgf-m
Caution
● After installation, check if the steering
stem can rotate freely without vertical
clearance.
Install other parts in the reverse order of
removal.
Steering stem top thread
Counterclockwise
1/2 circle
Clockwise
1/4~3/8 circle
Steering stem
Top bridge locknut
To Next Page
