9. Crankshaft / Crankcase / Transmission / Kick Starter

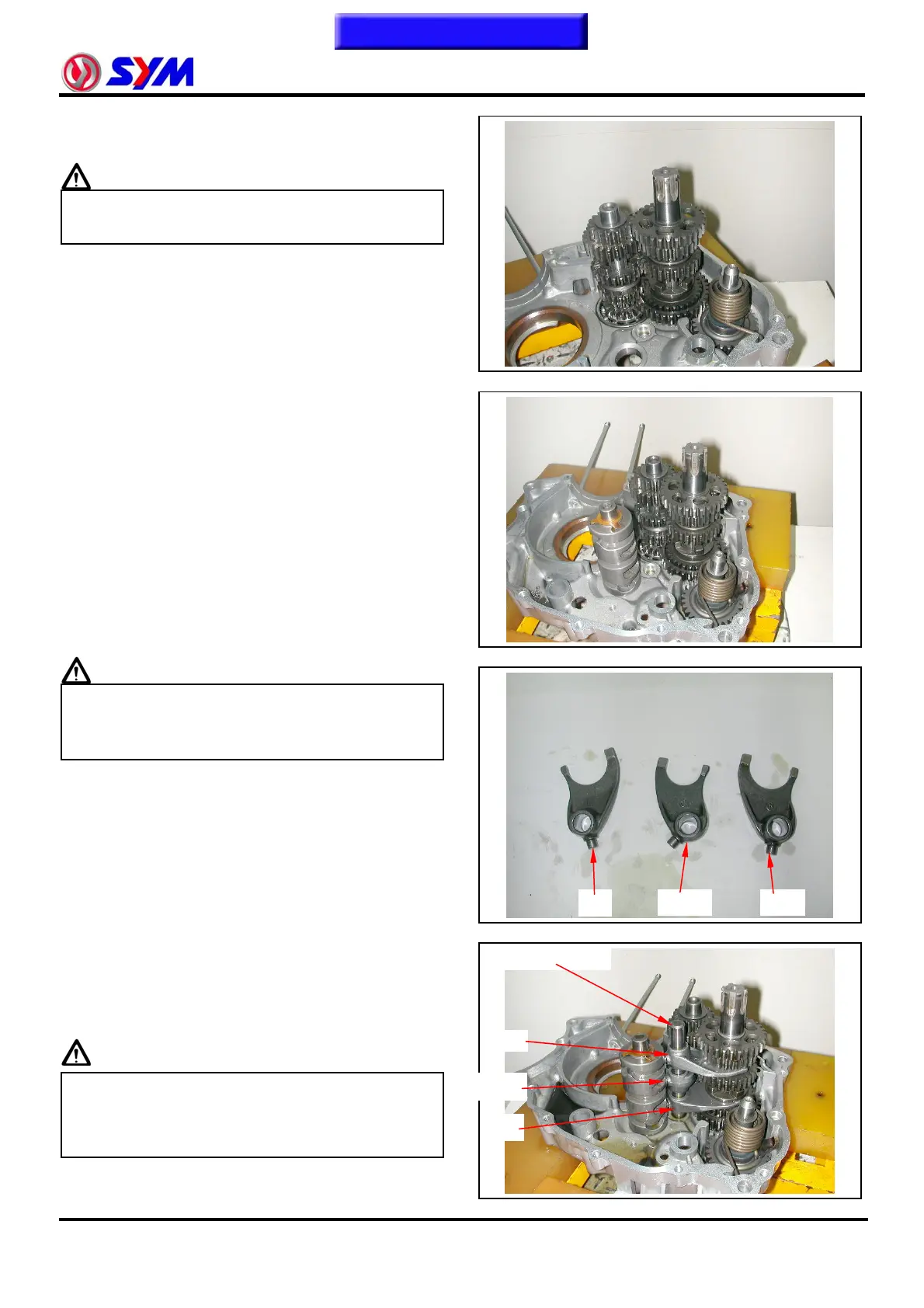

Install the main shaft and counter shaft to the
right crankcase.
9-13
Caution
z Make sure the thrust washer in the
position.
Install the gear shift drum.
Caution
z The letters on the left and center shift fork
should face upward; the letter on the right
shift fork should face downward.
Install the gear shift forks into the shift drum
guide groove.
Align the gear shift fork holes and plug in the
gear shift fork shaft.
Caution
z Make sure all the parts move smoothly.
z Rotate the gear shift drum to the neutral
gear.
Shift fork shaft
Left
Center
Right
Left
Center Right
To Next Page
