12. Rear Wheel / Rear Cushion / Swingarm
12-11

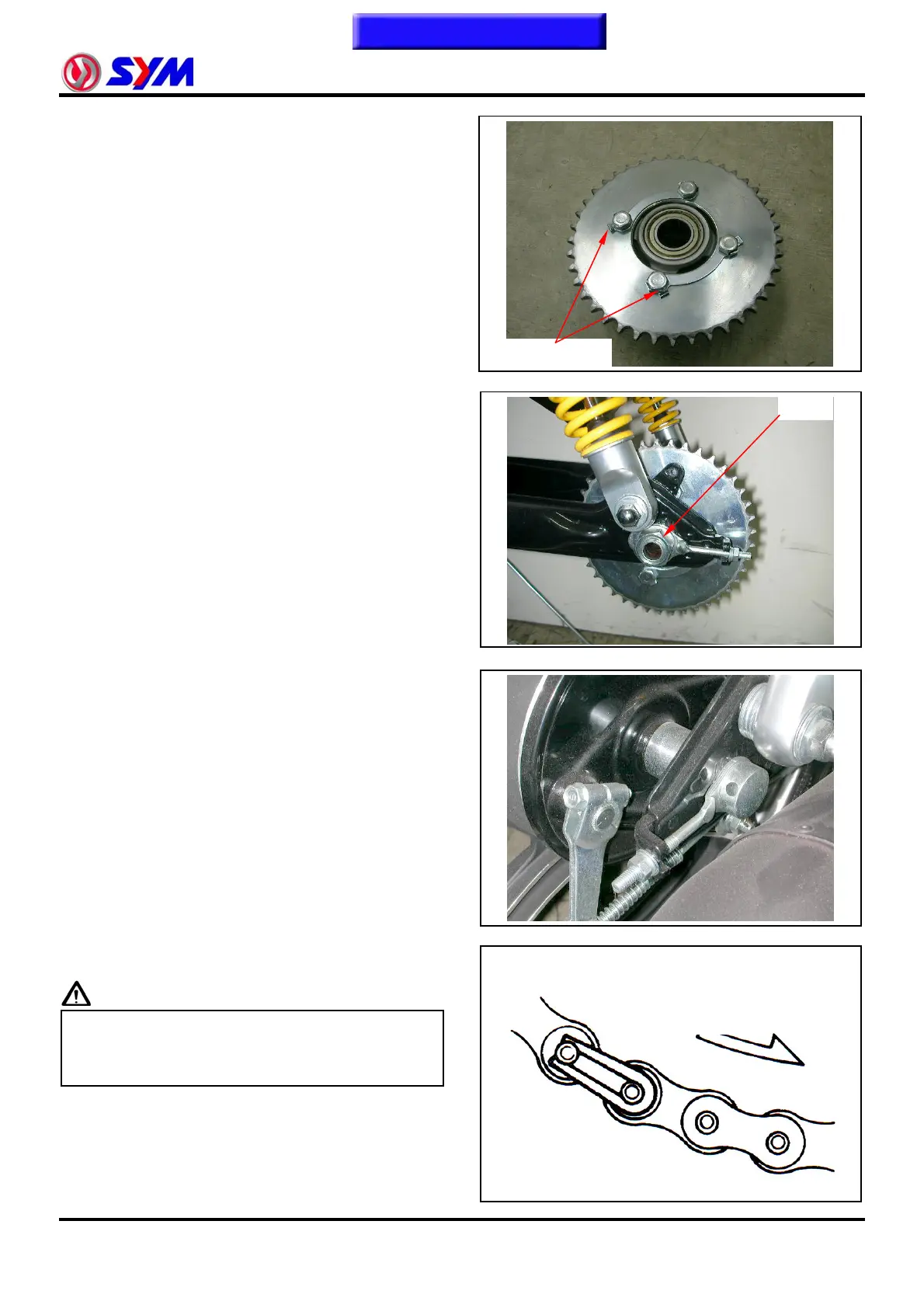

Driven flange / sprocket installation
Install the driven sprocket to the flange.
Tighten the bolts and bend the fixing washer.
Install the driven flange and sprocket to the
swingarm.
Install the left drive chain adjuster.
Install the rear wheel right drive chain adjuster.
Install the drive chain.
Caution
y The breach of the drive chain fixing clip
should be opposite to the chain rotation
direction.
Fixing washer
Nut×1
Rotation direction
To Next Page
