12. Rear Wheel / Rear Cushion / Swingarm

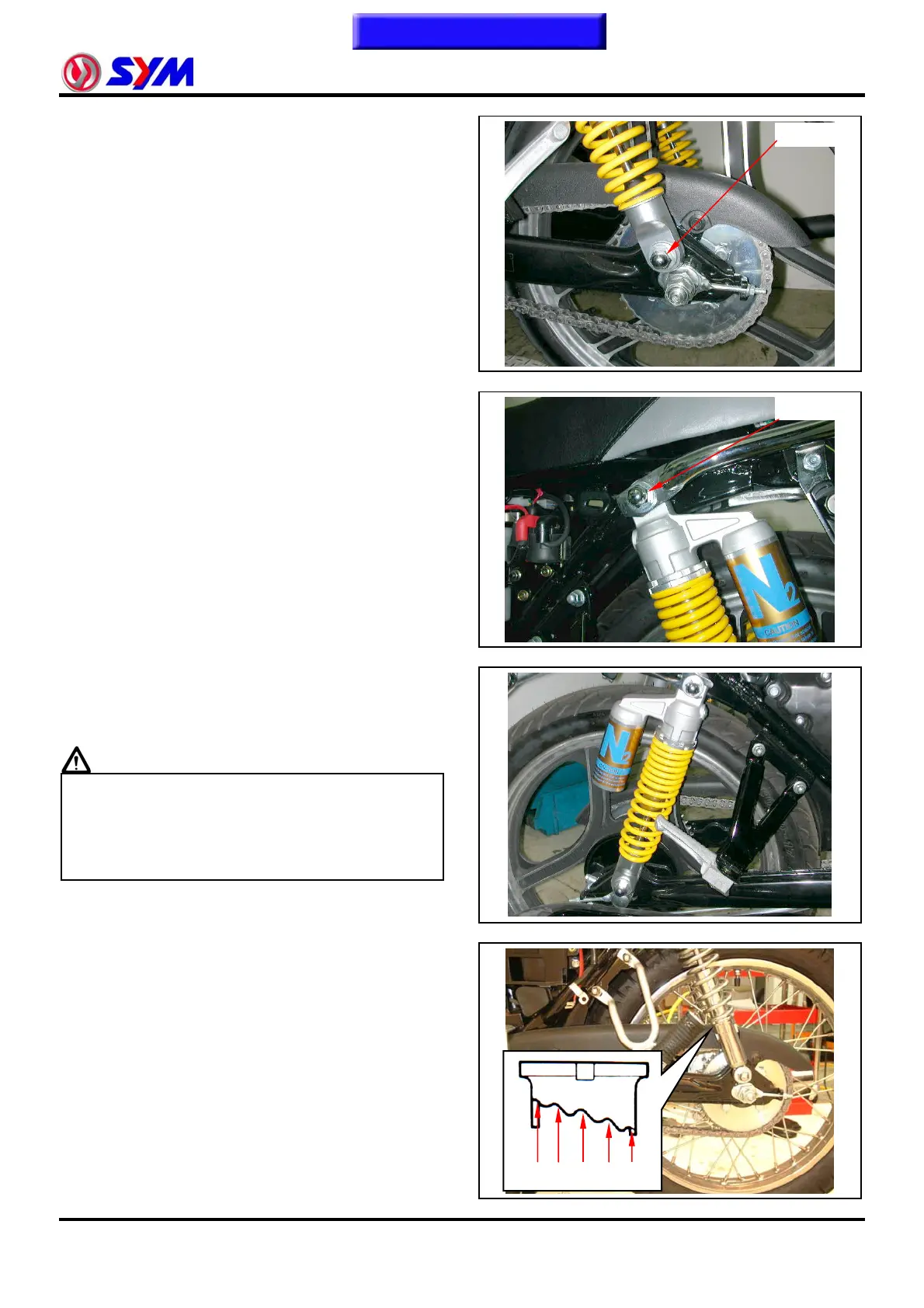

Rear Cushion
12-13
Removal
Remove the rear cushion lower locknut.
Rear the rear cushion upper locknut.
Remove the rear carrier.
Remove the rear cushion.
Installation
Install in the reverse order of removal.
Torque value：
Cushion locknut 3.0~3.4kgf-m
Caution
z Rear cushion should be replaced as a
complete set.
z Rubber bush and structure will be
damaged during disassembly.
Press the rear cushion to check if the rear
cushions move freely.
Check if both sides of rear cushion spring
adjusters are adjusted to the same tightness.
common cushion：Ⅰ、Ⅱ、Ⅲ、Ⅳ、Ⅴ
nitrogen cushion：Adjusting screw thread
Special tool：
Steering stem locknut socket wrench
SYM-5320000
Nut×1
Nut×1
Soft→ Hard→
ⅠⅡ Ⅲ Ⅳ Ⅴ
