13. Electrical System
13-25

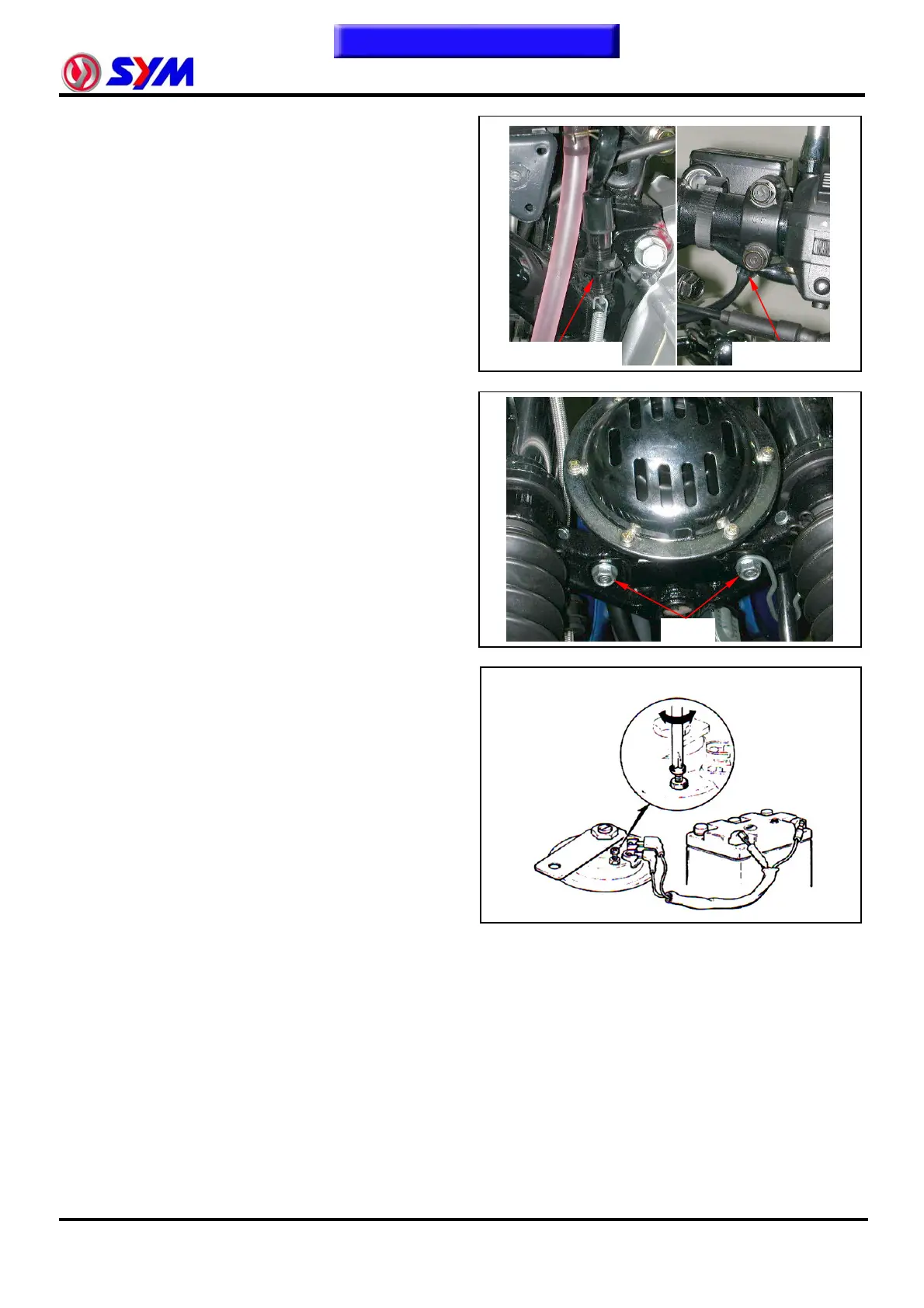

Brake switch
While grasp the brake lever firmly, the
terminals of black and green/yellow of the
brake should have continuity.
Replace the switch if damaged.
Horn
Disconnect the coupler and remove the horn
(bolt x 2).
Remove the front cover and front under
spoiler.
Apply 12 V power source to two terminals of
the horn, the horn should make sound.
Replace the horn if necessary.
Adjust the quality of sound by turning the
adjusting screw.
Bolt×2
Front brake switch
Rear brake switch
