3. Fuel System
3-7

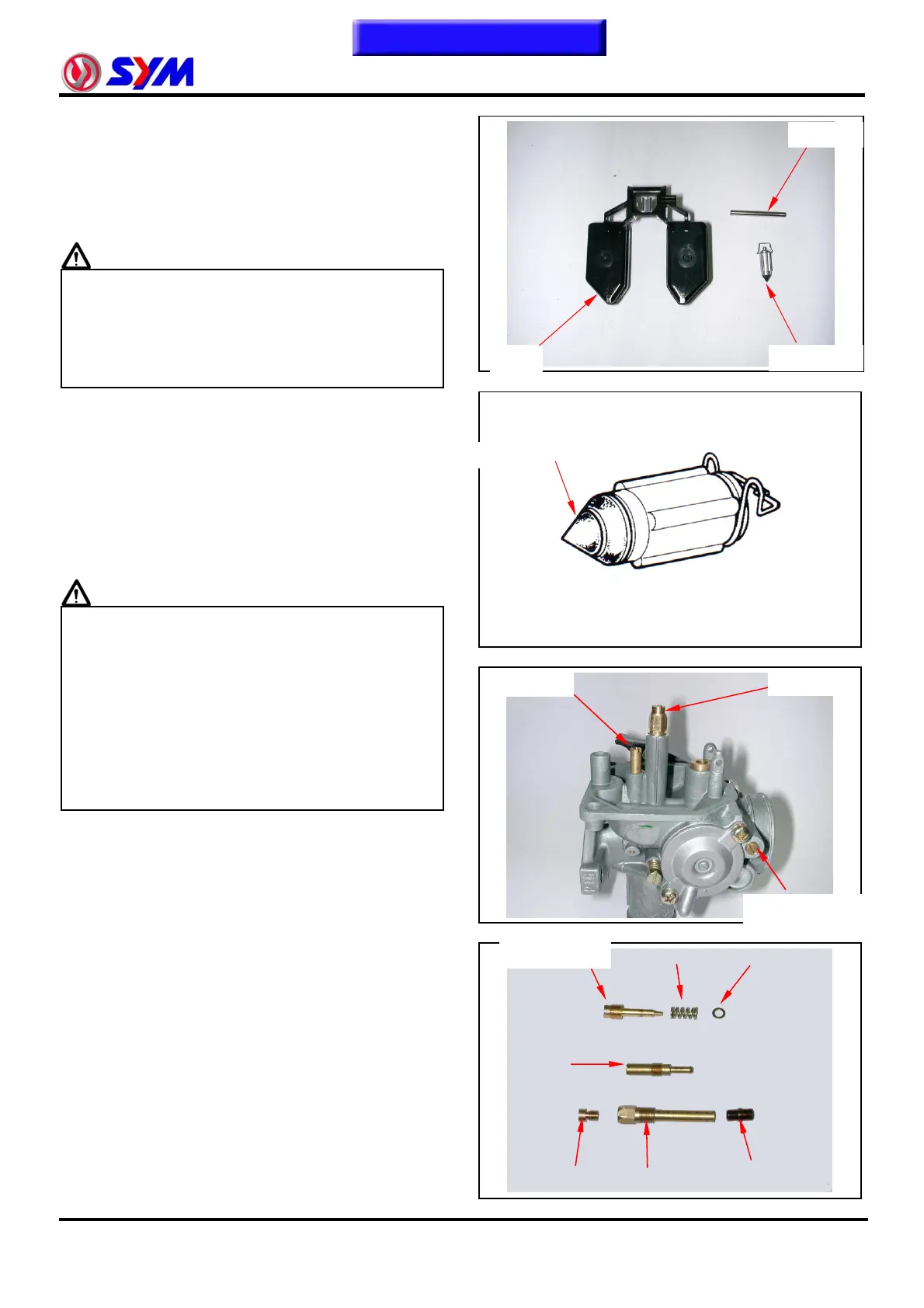

Inspection
Check the float valve and valve seat to see if
any damage or blocking.
Check float valve for wearing, and check valve
seat face for wear, dirt.
Caution
z In case of worn out or dirty, the float valve
and valve seat will not close tightly. The
fuel will overflow. A worn out or dirty
float valve must be replaced with a new
one to fix the problem.
Remove main jet, needle jet holder, needle jet,
slow jet and air adjustment screw.
Caution
z Be careful not to damage jets and adjust
screw.
z Before removing adjustment screw, turn it
all the way in and record the number of
circles.
z Do not turn adjust screw forcefully, or the
valve seat may be damaged.
z When airscrew is removed, please also
take out the inner washer with it.
Clean jets with Carburetor conditioner. Then
use compressed air to blow the dirt off.
Main jet
Nozzle
Jet holder
Slow jet
Air adjustment
screw
Check if worn out
Float valve
Float pin
Float
Main jet
Slow jet
Air adjustment
screw
Spring
Washer
