3. Fuel System

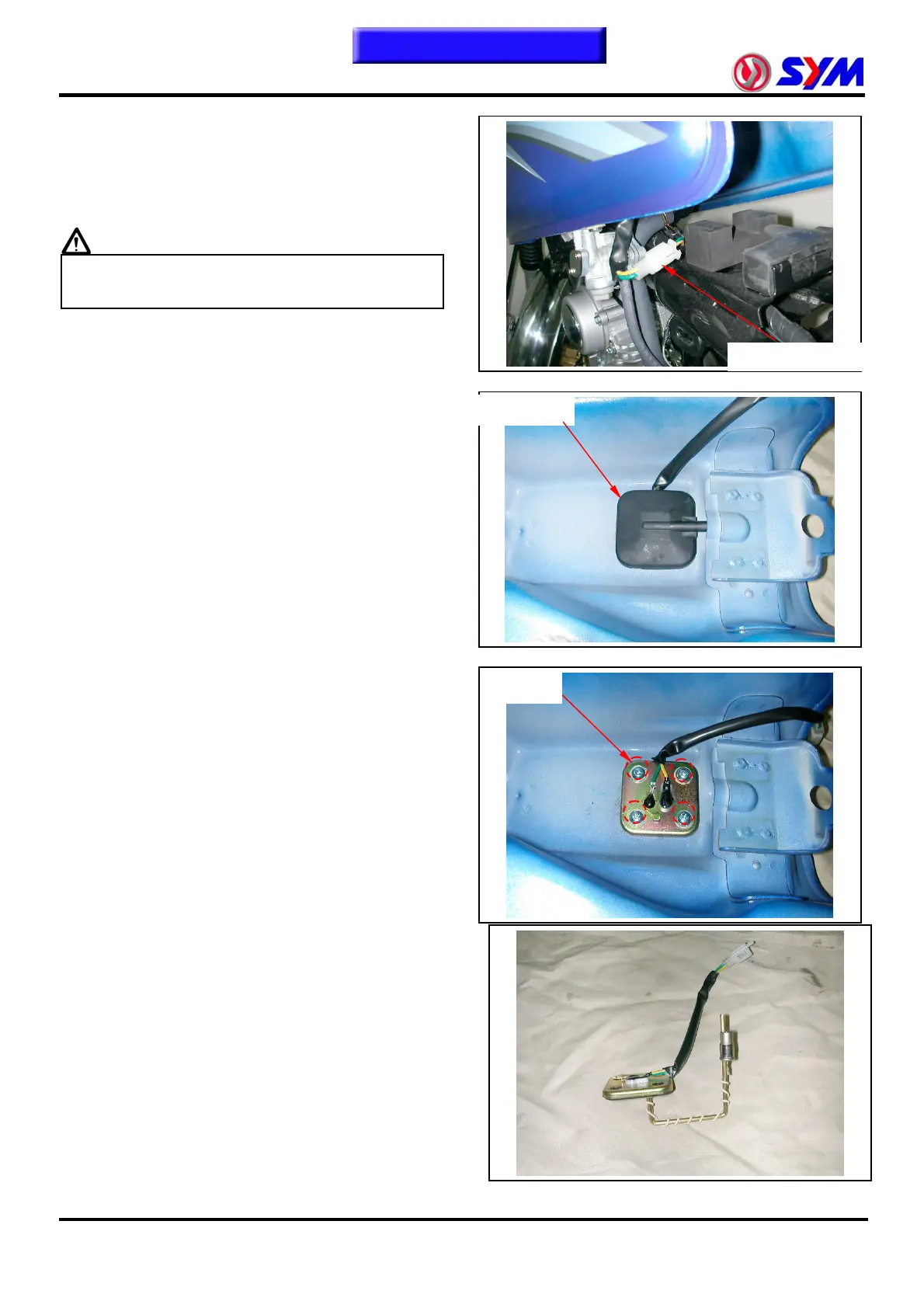

Slightly pull the fuel tank back toward the
tail of the bike. This will help the fuel tank to
separate from the frame.
3-12
Disassemble the fuel gauge coupler.
Remove the fuel tank.
Caution
z If the fuel tank is broken or leaking,
please change a new one immediately.
Fuel gauge coupler
Fuel amount warning sensor/ Fuel
gauge disassembly.
Sensor cover
Remove the protective cover of fuel amount
warning sensor or Fuel gauge sensor.
Remove the holding screws (screw ×4)
Take out the fuel amount warning sensor or
fuel gauge sensor.
Please refer to the 13
th
chapter for the
detailed inspection for the gauges.
Screw ×4
