3、Fuel System
3-14

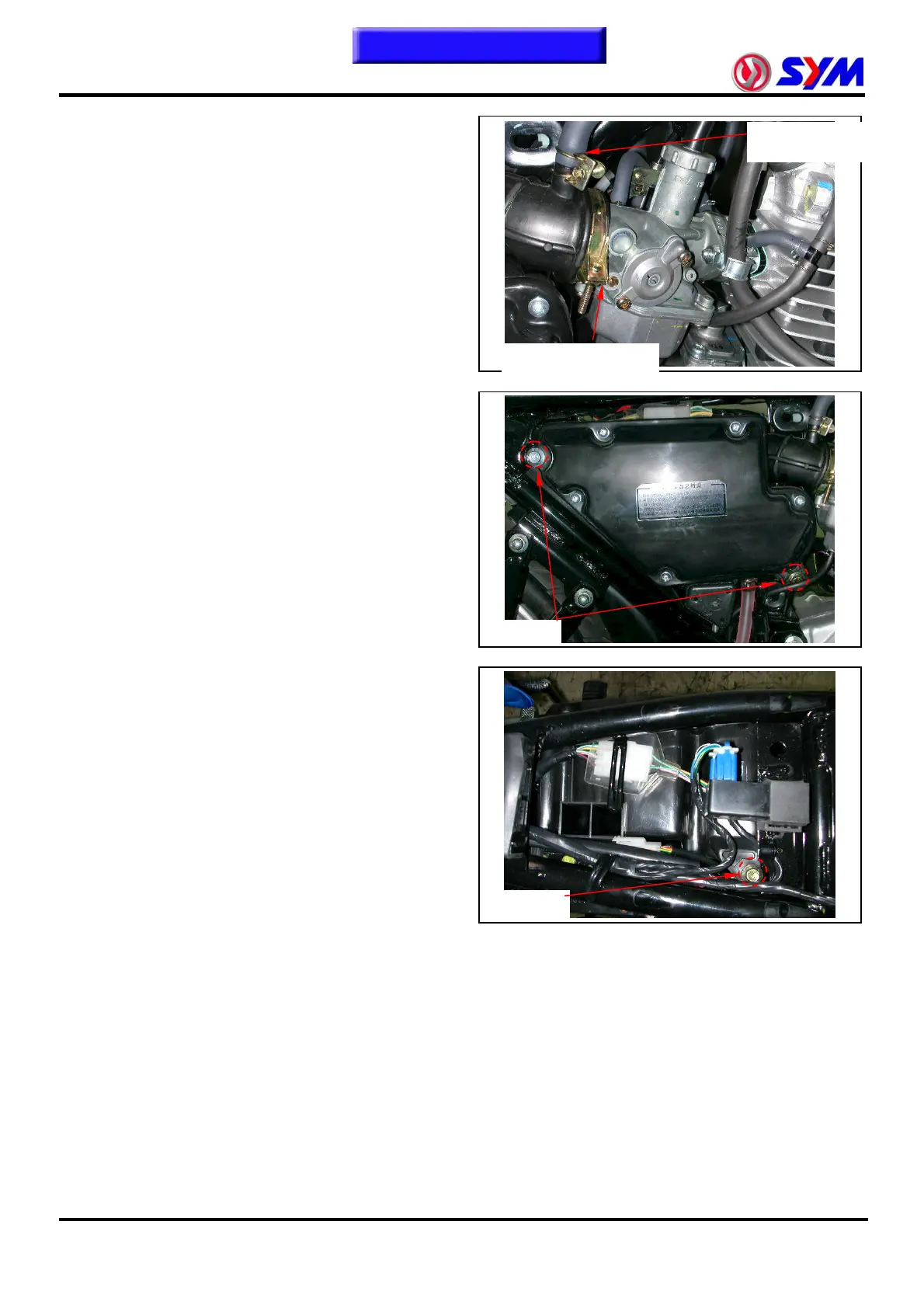

Air filter assembly removal
Fuel vapor recycle
tube
Remove the right body cover
Remove the cushion.
Loosen and remove t he air filter tunnel clamp
and unplug the fuel vapor recycle tube.
Remove the air filter box mounting bolts.
(Bolts X 2)
Remove the air filter box upper mounting bolt
(bolt×1)。
Remove the air filter assembly.
Installation
Install as the reversed order of removal.
Bolt×1
Bolts×2
Air filter tunnel clamp
