Lubrication / Clutch / Transmission
4-7

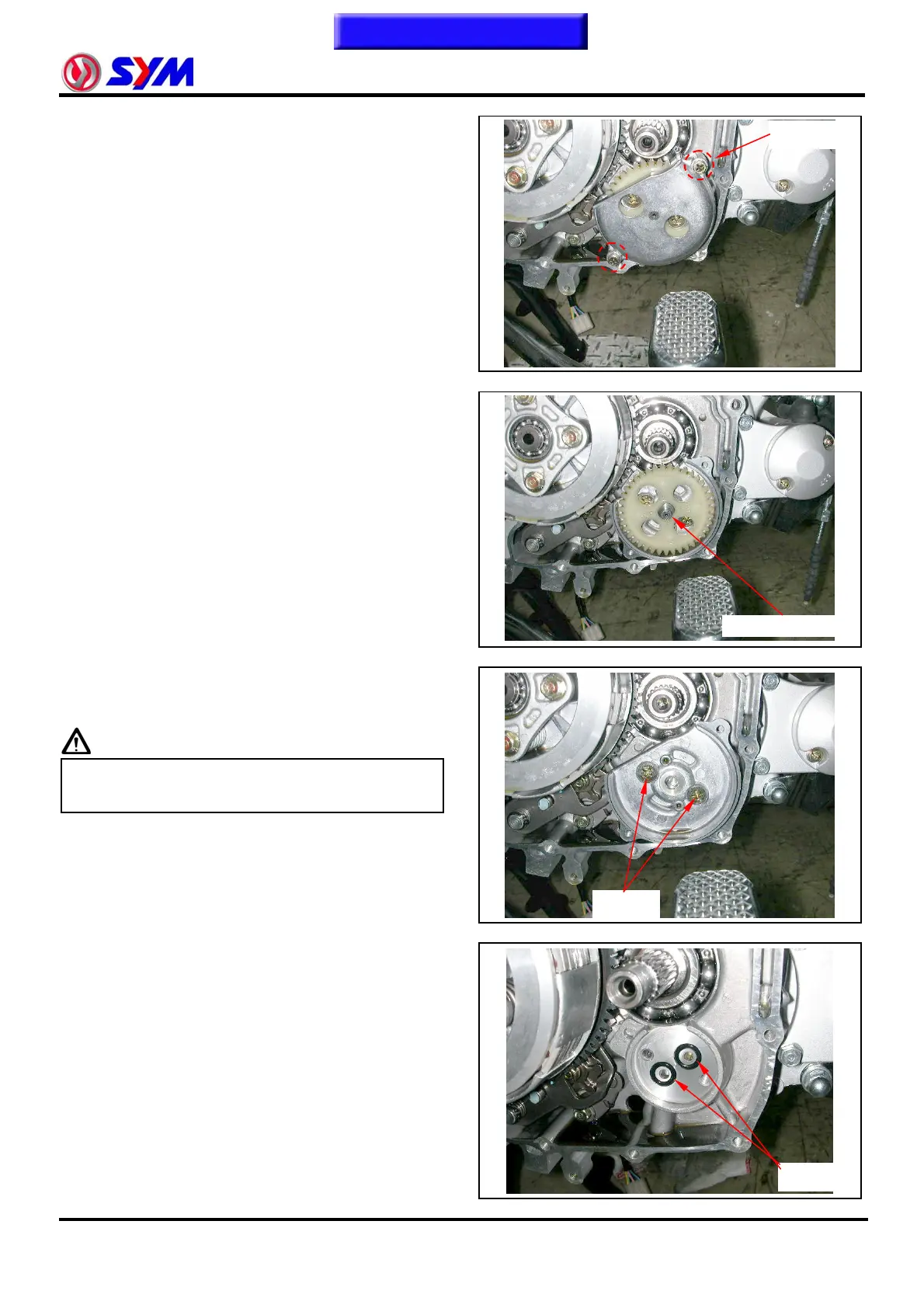

Remove the initial driven gear
Remove the oil pump gear protective cover
(bolts×2)
Remove the driven gear and driven shaft.
Remove the oil pump(screw×2)。
Caution
z It’s recommended to remove the oil pump
holding screw with impact screw driver.
Remove the two O-rings on the oil pump seat.
screw×2
Bolts×2
Driven shaft
O-ring
