Lubrication / Clutch / Transmission

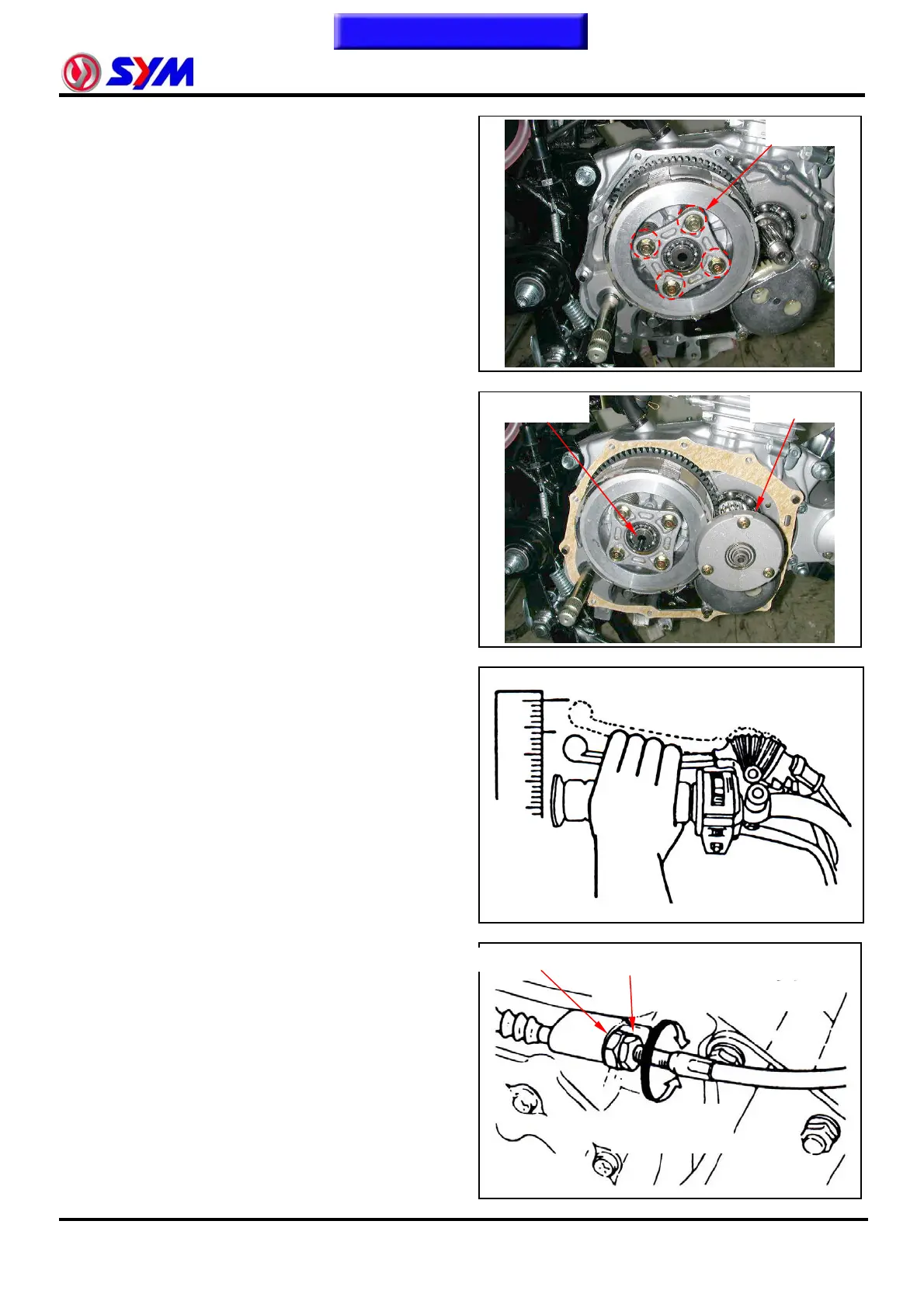

Install the clutch spring, lifter plate, and tighten
the holding bolts. (Bolt X 4)
4-15
Install the lifter rod.
Install the centrifugal oil strainer
Assemble the right crankcase cover.
(Bolt X 11)
Connect the clutch cable
Install the Kick-starter, kick-starter lever, and
exhaust pipe.
Fill in specified engine oil.
Turn the adjustment nut to optimize the clutch
free play.
Free play：10~20mm
After achieving the correct free play, tighten
the adjusting nut and the lock nut.
Bolt×4
Lifter rod
Oil strainer
10~20mm
Adjusting nut
Decrease free play
Lock nut
Increase the
free play
