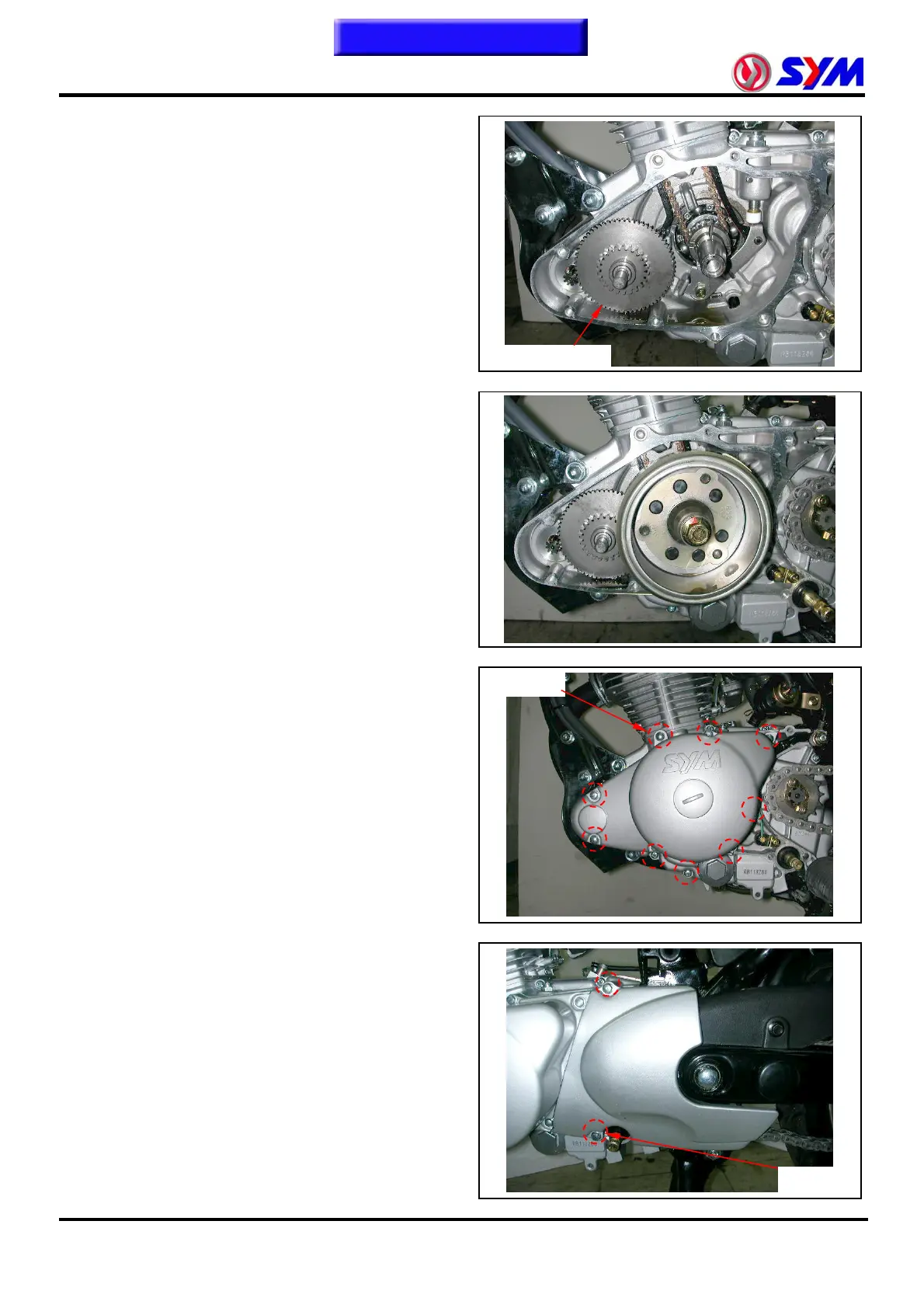

ACG flywheel/ Start clutch assembly
Assemble the start driven gear and its gear
shaft.
Start driven gear
Install the ACG flywheel, start clutch, and start
gear. Tighten the ACG flywheel (Bolt×1).
Torque Value：5.0~6.0kgf-m
Insert the dowel pin, set the L crankcase cover
gasket to the correct position. Assemble the R
crankcase cover onto the R crankcase.
(Bolt×9).
Torque Value：1.5~2.0kgf-m
Assemble the left crankcase chain cover
(Bolt×2).
Bolt×9
Bolt×2
To Next Page
