Symbologies 13 - 7

UPC/EAN

Enable/Disable UPC-A

Parameter # 01h

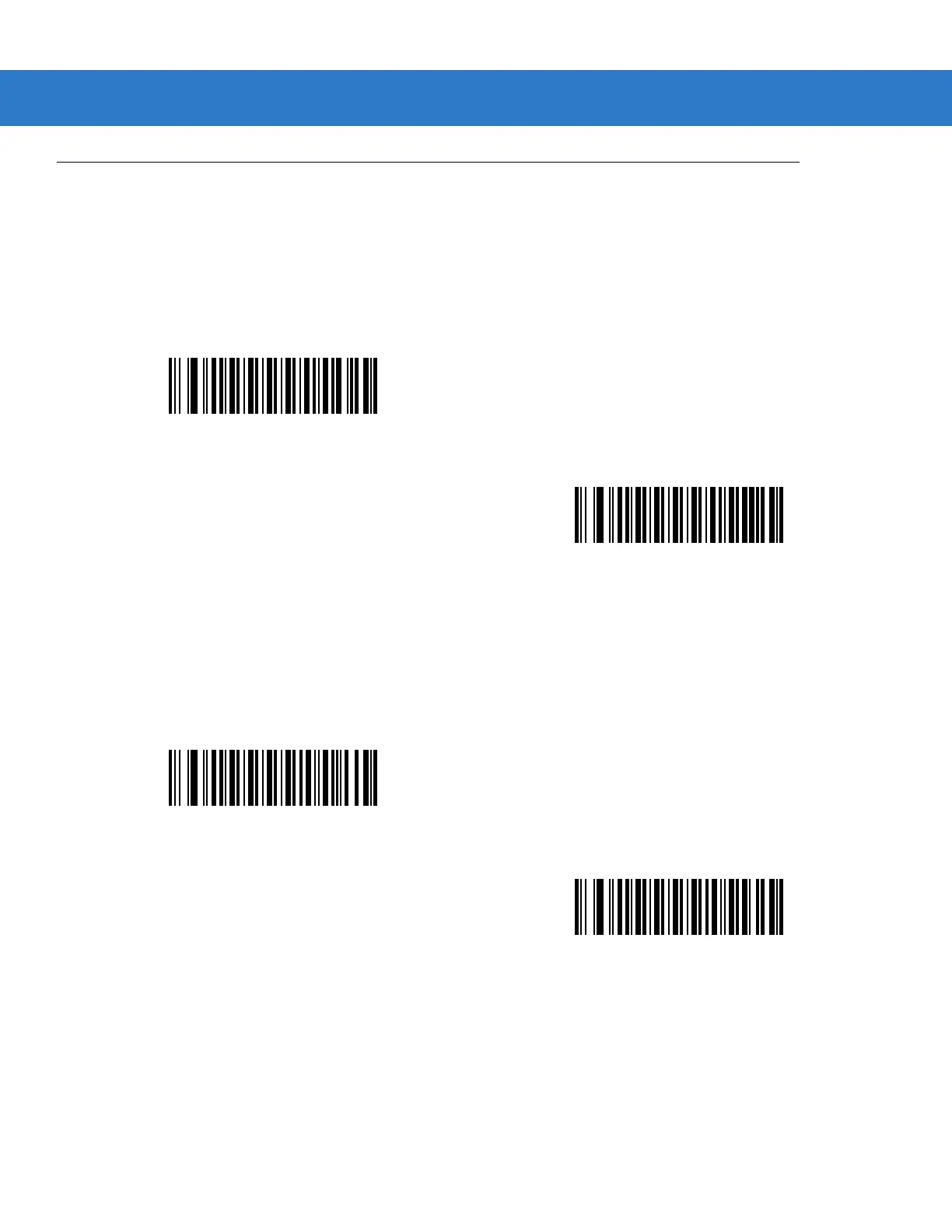

To enable or disable UPC-A, scan the appropriate bar code below.

Enable/Disable UPC-E

Parameter # 02h

To enable or disable UPC-E, scan the appropriate bar code below.

*Enable UPC-A

(01h)

Disable UPC-A

(00h)

*Enable UPC-E

(01h)

Disable UPC-E

(00h)
