Maintenance & Technical Specifications 3 - 7
Digital Scanner Signal Descriptions

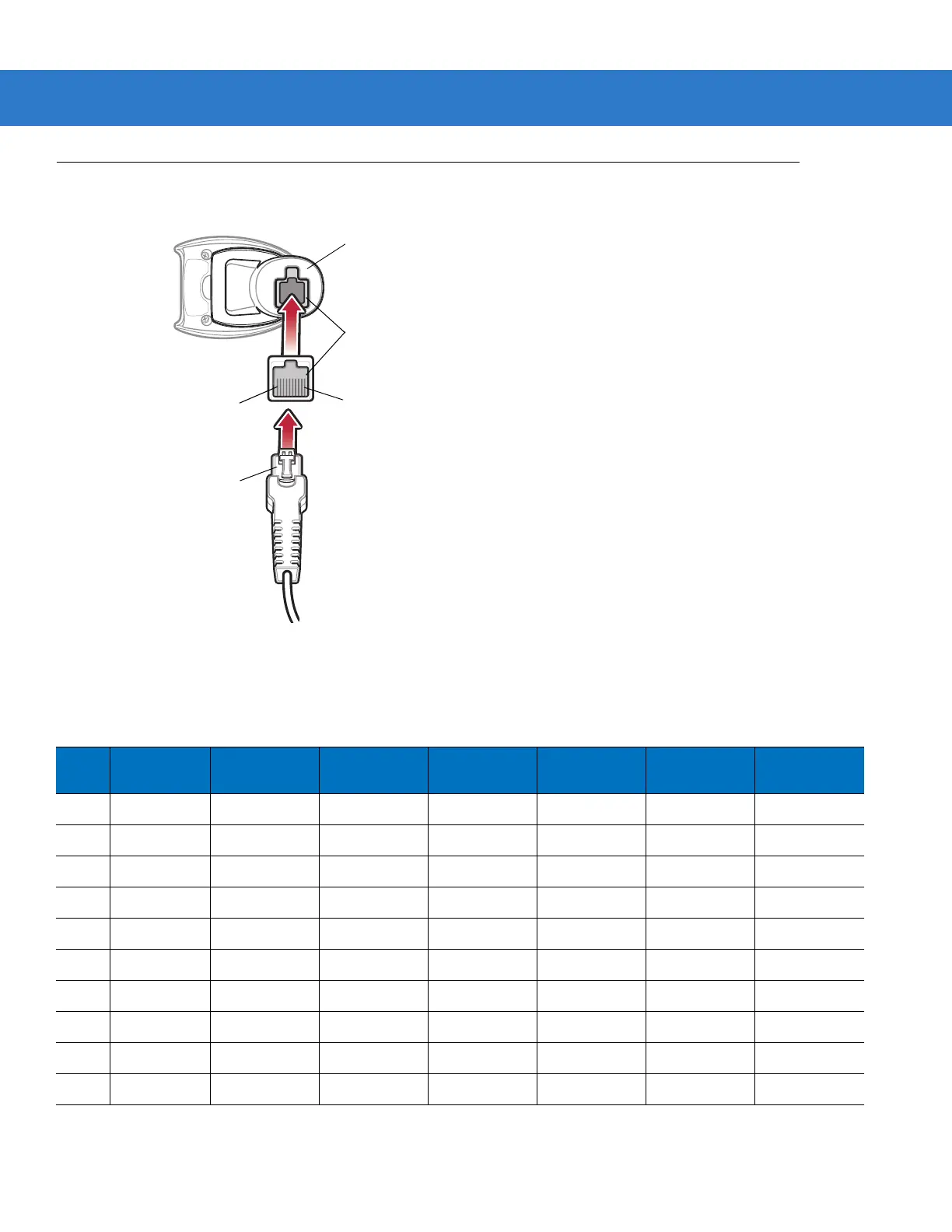

Figure 3-1
Digital Scanner Cable Pinouts
The signal descriptions in Table 3-3 apply to the connectors on the Symbol DS6708 digital scanner and are for
reference only.
Pin 10
Bottom of digital scanner
Pin 1
Interface cable
modular connector
Cable interface port
Table 3-3
Symbol DS6708 Digital Scanner Signal Pin-outs
Pin IBM Synapse RS-232
Keyboard
Wedge
Wand USB
Scanner
Emulation
1
Reserved SynClock Reserved Reserved Reserved Jump to Pin 6 DBP
2
Power Power Power Power Power Power Power
3
Ground Ground Ground Ground Ground Ground Ground
4
IBM_A(+) Reserved TxD KeyClock DBP Reserved SOS
5
Reserved Reserved RxD TermData CTS D + Decode
6
IBM_B(-) SynData RTS KeyData RTS Jump to Pin 1 Trigger
7
Reserved Reserved CTS TermClock Reserved D - Enable
8
Reserved Reserved Reserved Reserved Reserved Reserved Reserved
9
Reserved Reserved Reserved Reserved Reserved Reserved Reserved
10
Reserved Reserved Reserved Reserved Reserved Reserved Reserved
