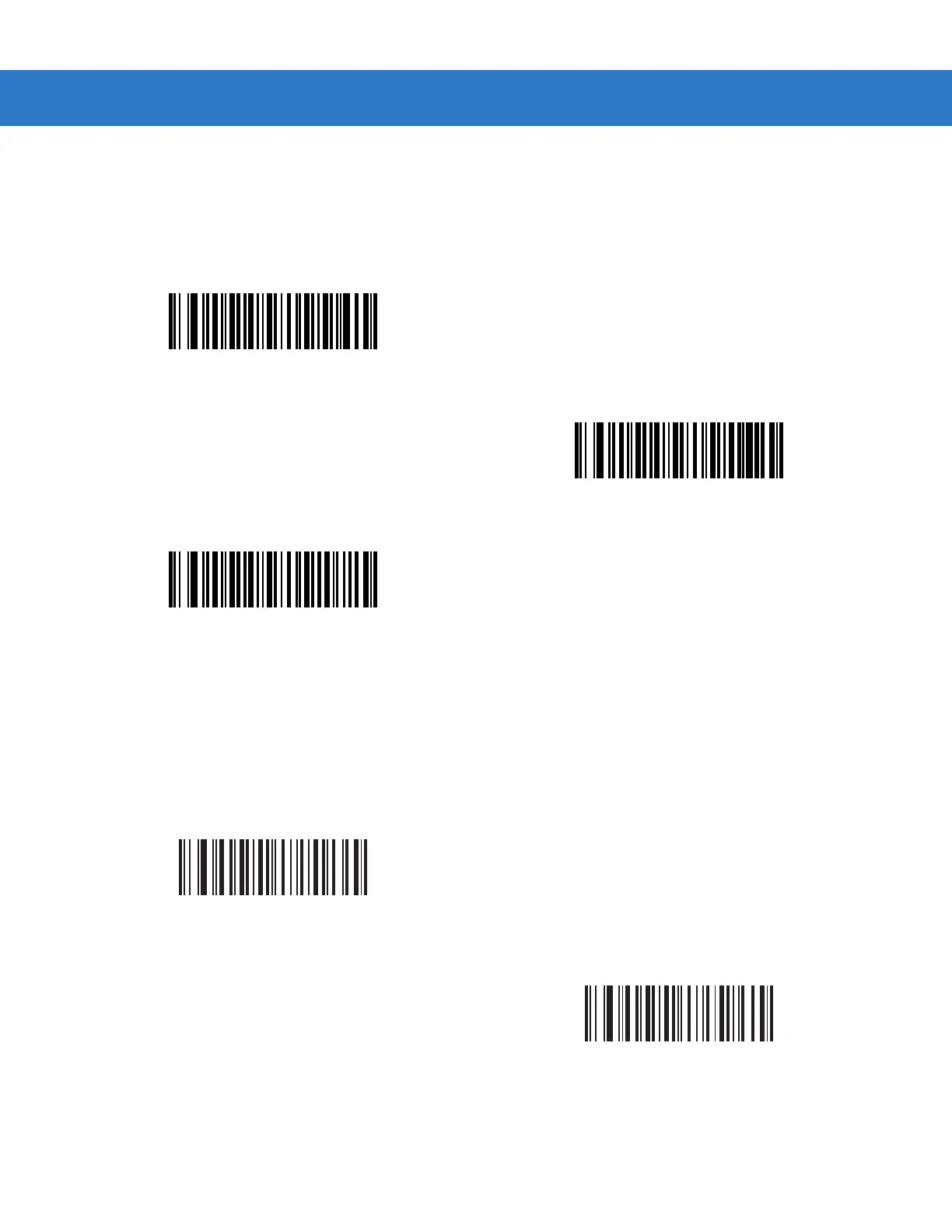

Composite Beep Mode

Parameter # F0h, 8Eh

To select the number of decode beeps when a composite bar code is decoded, scan the appropriate bar code.

GS1-128 Emulation Mode for GS1 Composite Codes (formerly UCC/EAN Code 128 Emulation

Mode for UCC/EAN Composite Codes)

Parameter # F0h, ABh

Select whether to enable or disable this mode.

Single Beep after both are decoded

(00h)

*Beep as each code type is decoded

(01h)

Double Beep after both are decoded

(02h)

Enable GS1-128 Emulation Mode for

GS1 Composite Codes

(01h)

*Disable GS1-128 Emulation Mode for

GS1 Composite Codes

(00h)
